High Efficiency 120W Isolated dc dc Converter 24V to 12V 10Amax

High Efficiency 120W Isolated dc dc Converter 24V to 12V 10Amax thumbnail-1
High Efficiency 120W Isolated dc dc Converter 24V to 12V 10Amax thumbnail-2
High Efficiency 120W Isolated dc dc Converter 24V to 12V 10Amax thumbnail-3

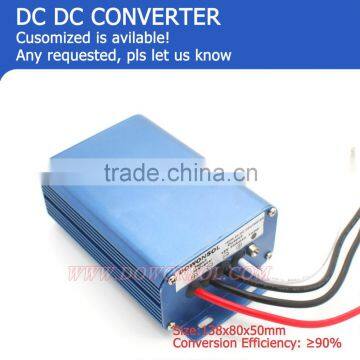

High Efficiency 120W Isolated dc dc Converter 24V to 12V 10Amax photo-1

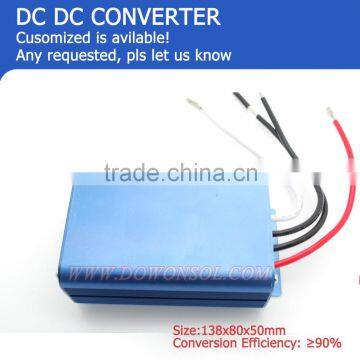

High Efficiency 120W Isolated dc dc Converter 24V to 12V 10Amax photo-2

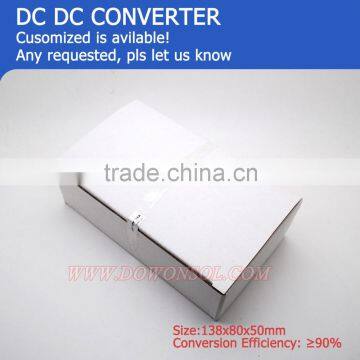

High Efficiency 120W Isolated dc dc Converter 24V to 12V 10Amax photo-3
US$ 1 - 9.99 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
dowonsol
Model Number:
IS2412C120Z
Contact Supplier Request Quote Chat Now
Jiangmen Shengchuang Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name dowonsol
Model Number IS2412C120Z
Output Power 101 - 200W
Output Type Single
Size 138*80*60mm
Weight 750g
Input Voltage 24v
Output Voltage 12v
Type DC/DC Converters
Output Frequency -
Output Current 10A max

High efficiency 120W Isolated dc dc converter 24V to 12V 10Amax



power(W):120W

Input voltage(V): 24V DC
Output voltage(V):12V DC
Output Type:Single
Input:
Input voltage range(V) 18-36V DC
Start voltage(V) 30V DC 100% load Input Reverse connection protection No Input low voltage protection(V) ≤26VDC output off, ≥ 29V DC Auto recovery.
No load (W):< 4W
Efficiency 85%
Output:
Output voltage range(V) VOUT: 12V DC
Output current(A) 10A
Voltage adjustable 1%
Load adjustable 3%
Isolation Non-isolated
Waterproof Waterproof IP68
Dimension 150*80*60mm,
net weight: 750g
Cooler natural cooling Rated temperature ° 45°
Operating temperature -40°-80°
Probability of reliability >100000h

We have other converters for your reference as followed,
Product range Product model V-in V-out I-out Efficiency Weight(g) Size (LxWxH)
50W DC Converter J48D5K50Z 48V 5v 10A Higher than 90% 280g 74X74X32mm
60W DC Converter J48D5K60Z 48v 12v 5A Higher than 90% 280g 74X74X32mm
120W DC Converter J48D5K120Z 48v 12v 10A Higher than 90% 280g 74X74X32mm
240W DC Converter J48D12K240Z 48v 12v 20A Higher than 90% 280g 74X74X32mm
360W DC Converter J48D12K360Z 48v 12v 30A Higher than 90% 280g 150x127x63mm
120W DC Converter J48D24K120Z 48v 24v 5A Higher than 90% 280g 74X74X32mm
240W DC Converter J48D24K240Z 48v 24v 10A Higher than 90% 320g 74X74X32mm



Our products are great for outdoor environment and widely used in automotive, posts and telecommunications, communications, electricity, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV and other fields.



We have other custom made specification if you can not find a suitable model from our TCH Warehouse Store, please contact our product engineer

High efficiency 120W Isolated dc dc converter 24V to 12V 10AmaxHigh efficiency 120W Isolated dc dc converter 24V to 12V 10AmaxHigh efficiency 120W Isolated dc dc converter 24V to 12V 10Amax

High efficiency 120W Isolated dc dc converter 24V to 12V 10Amax
