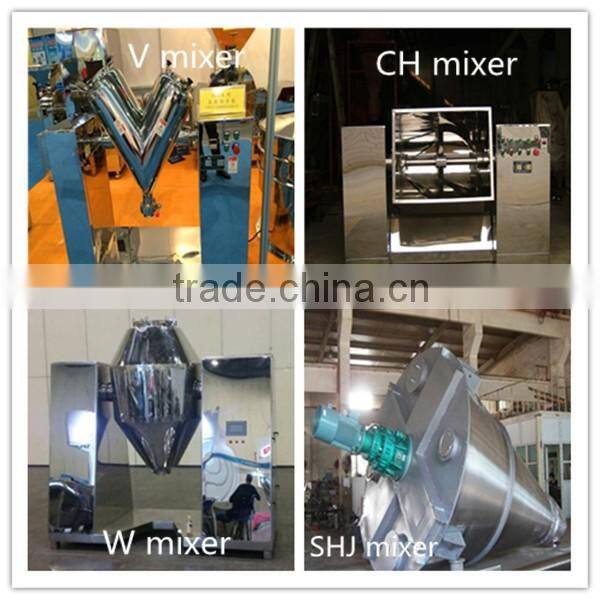

CH Trough Shaped Paddle Liquid MixerUS$ 2,650 - 3,500MOQ: 1 Set -
SHJ Double Screw Vertical Mixer for ChemicalsUS$ 4,200 - 4,500MOQ: 1 Set
-
W Double Cone Dry Pharmaceutical Powder BlenderUS$ 3,350 - 4,200MOQ: 1 Set
-
Mini Powder MixerUS$ 1,000 - 1,100MOQ: 1 Set
-
V Shape Dry Powder MixerUS$ 2,800 - 3,000MOQ: 1 Set
SYH model high efficiency 3D chemical powder mixer
Main Application
The machine is widely used for the mixing of powder materials by pharmacy, chemicals and foodstuff industries, as well as for the quick and even mixing of various materials in different granule size and gravity.
Working method
The machine is composed of base, frequency change motor, main axis, rotor and cylinder, etc.
The cylinder container will carry on parallel moving and rolling under the driving of main axis, thus to push the material moving in the direction of circle, radical and axially, achieving uniform mixing of different varieties of material.
The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside.
Features
1.unique three-dimensional swing, parallel moving and rolling methods,no dead corner,
2.smooth running, low noise, high loading quantity and short mixing time
3.Widly mixing thin powder and over two powders including contain little mositure
4.The whole machine is made of Stainless steel SS304,meets GMP standard.
SYH model high efficiency 3D chemical powder mixer
Model |
100 |
200 |
400 |
600 |
800 |
1000 |
1200 |
1500 |
Mixing Barrel Volume(L) |
100 |
200 |
400 |
600 |
800 |
1000 |
1200 |
1500 |
MAx Loading Volume (L) |
75 |
160 |
320 |
480 |
640 |
800 |
950 |
1200 |
Max (Kg) |
75 |
160 |
320 |
480 |
640 |
800 |
950 |
1200 |
Principal axis speed(r/min) |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
Motor Power(KW) |
1.5 |
2.2 |
4 |
5.5 |
7.5 |
7.5 |
11 |
15 |
Overall size |
1200×1700 |
1400×1800 |
1800×2100 |
1900×2100 |
2200×2400 |
2250×2600 |
2400×2800 |
2500×2950 |
Weight(kg) |
500 |
800 |
1200 |
1500 |
2000 |
2500 |
2800 |
3000 |

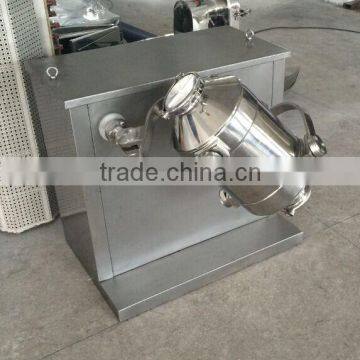

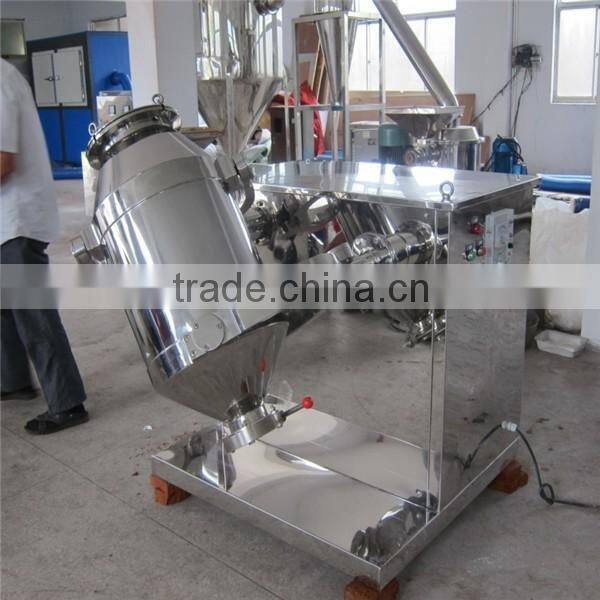

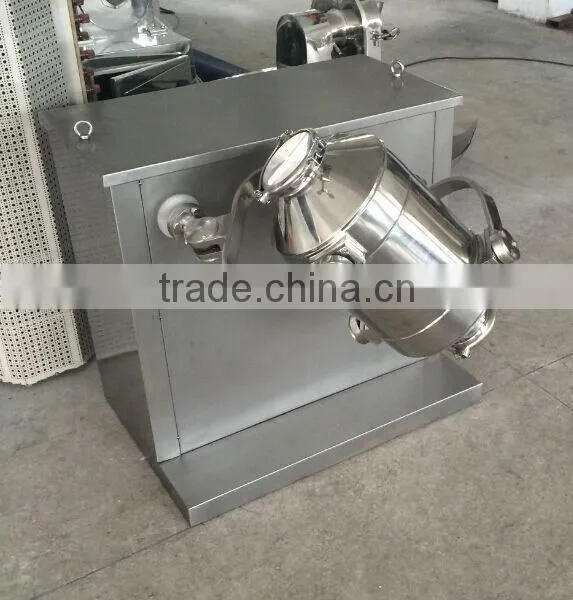

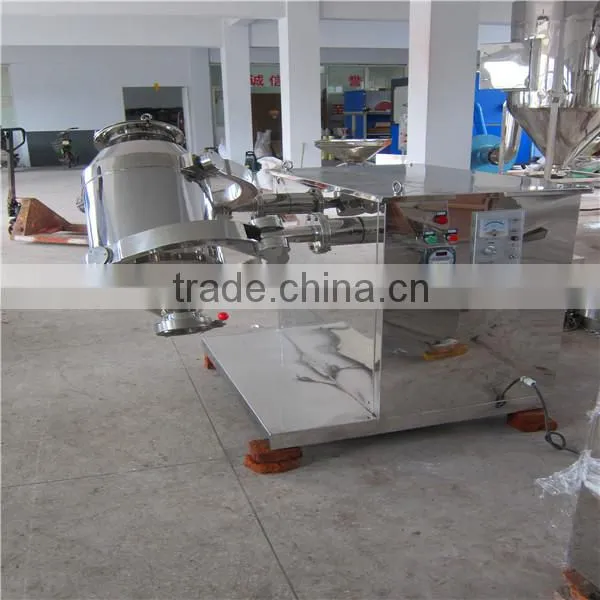

the whole machine

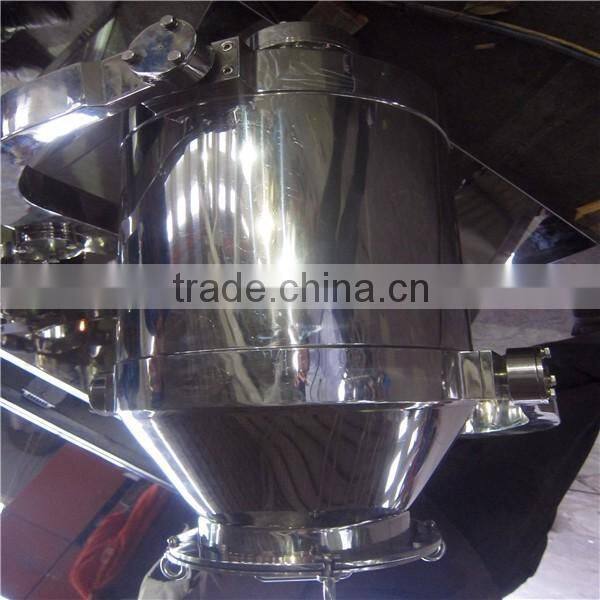

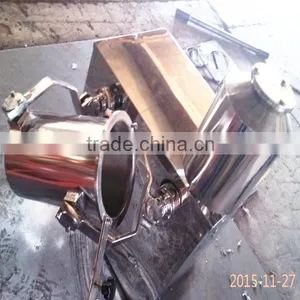

the drum
Wooden cases
fessional advice and rich experience help to choose machine
nical support by email
3.one year guarantee for whole machine
4.calling or door-to-door service
5.user manual and detailed video/CD
Why us ?
1.Quality guarantee
2.One-stop service without any outsourcing
3. Best Materials selection
4. On time delivery
5. Professional export for years
How to choose a right mixer ?Please tell me
1)your feeding material ;
2)the moisture;
3)the capacity per hour
Please feel free to contact us if you are interested in it;
Tel: +86-510-86380586
Mb: +86-18015386858
TM: cn1517250240ckfl
Skype: Lanye0904
