Home > Products > Mixer,Mixing machine,Blender,Blending machine > CH trough shaped paddle liquid mixer
CH trough shaped paddle liquid mixer
- 20 Set / Sets per Month
- Shanghai port for CH trough shaped paddle liquid mixer
- T/T
Product Details
Condition: | New | Mixer Type: | Paddle | Product Type: | Detergent Powder |
Application: | Liquid | Additional Capabilities: | Other, electrical heating | Place of Origin: | Jiangsu, China |
Brand Name: | XT | Model Number: | CH-200 | Max. Loading Capacity: | 200L |
Voltage: | 110V~480V | Power(W): | 4kw | Dimension(L*W*H): | 1700-600-1020mm |
Certification: | CE ISO | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CH trough shaped paddle liquid mixer
Main Application
As a stainless steel horizontal mixer, the machine is suitable for the mixing of target materials in powder or paste state evenly in pharmaceutical, chemical and foodstuff industries.
Working Method
By driving of mechanism of the mixer, the stir paddle turns the target material to and fro to mix it evenly. Electric control is applied to set the mixing time and the mixer will stop automatically when time is up, so as to improve the mixing effect of materials.
Features
1.No dead corner, uniform mixture.
2.Mixing dry powder with liquid
3.Increase to blend the function compulsorily and even mixing efficiency
4.The whole machine is made of Stainless steel SS304/316
5.Electrical heating (as your requirement)
CH trough shaped paddle liquid mixer
MODEL | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
Paddle shape | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle |
Working volume (L) | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
mixing speed (r/min) | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
Stir angle (°) | <105 | <105 | <105 | <105 | <105 | <105 | <105 | <105 |
Mixing power (kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 |
Dumping power (kw) | 0.37 | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 |
Weight(kg) | 280 | 350 | 410 | 450 | 520 | 580 | 680 | 750 |
Overall size (L×W×H)(mm) | 1200×500 ×950 | 1400×580 ×1000 | 1600×600 ×1150 | 1700×650 ×1200 | 1800×700 ×1250 | 2100×750 ×1250 | 2250×800 ×1300 | 2400×850 ×1350 |

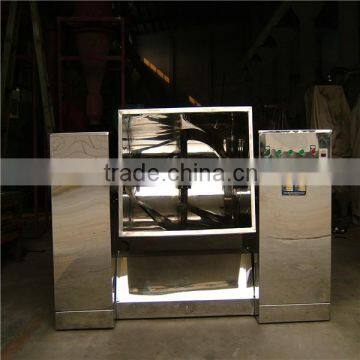

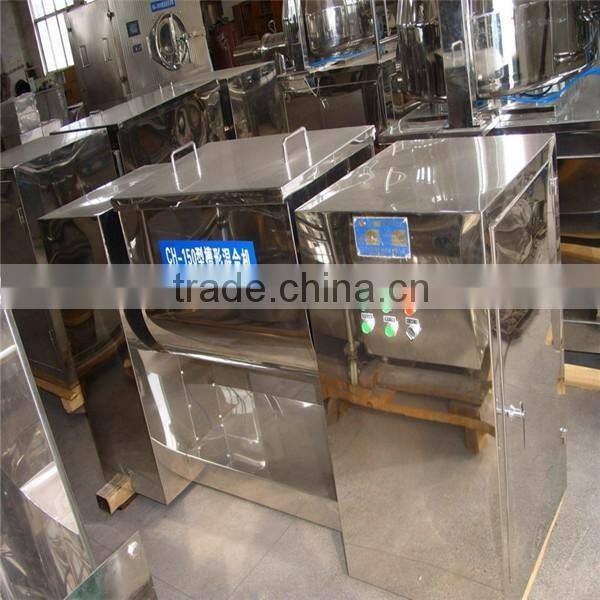

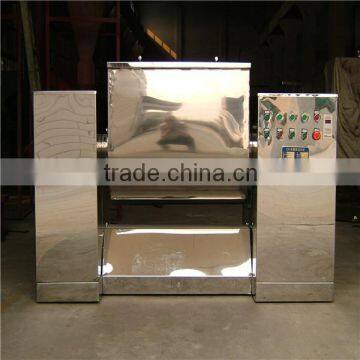

the whole machine

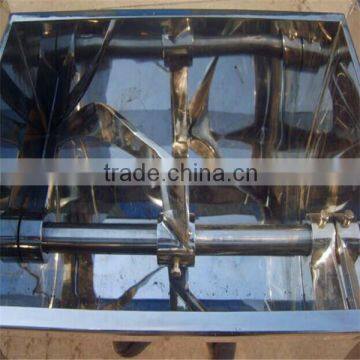

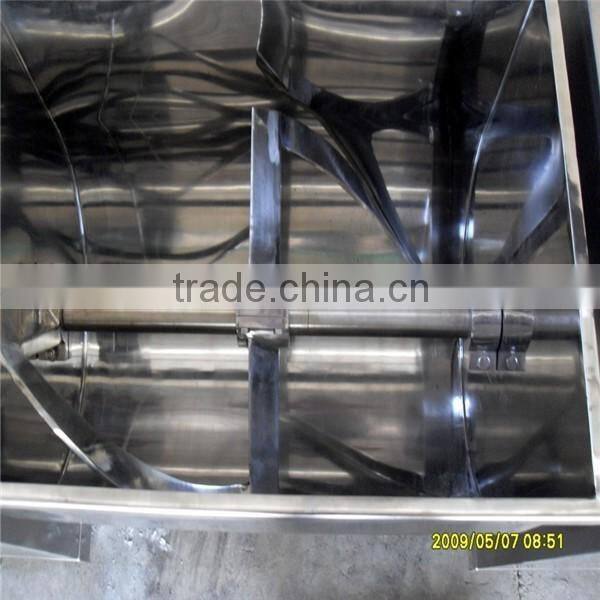

Paddle type

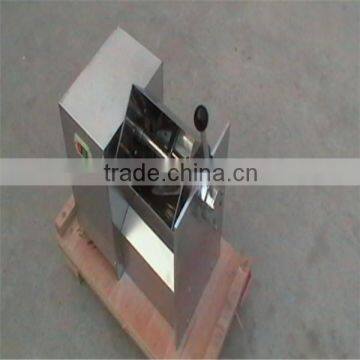

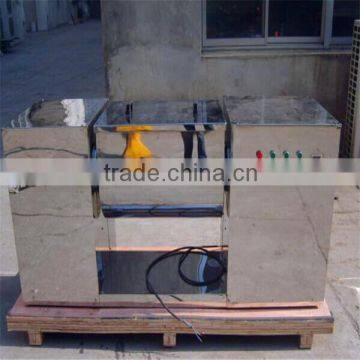

Wooden cases
fessional advice and rich experience help to choose machine
nical support by email
3.one year guarantee for whole machine
4.calling or door-to-door service
5.user manual and detailed video/CD
Why us ?
1.Quality guarantee
2.One-stop service without any outsourcing
3. Best Materials selection
4. On time delivery
5. Professional export for years
How to choose a right mixer ?Please tell me
1)your feeding material ;
2)the moisture;
3)the capacity per hour
Please feel free to contact us if you are interested in it;
Tel: +86-510-86380586
Mb: +86-18015386858
TM: cn1517250240ckfl
Skype: Lanye0904
Contact Us
- Jiangyin City Xuan Teng Machinery Equipment Co., Ltd.
- Contact nameRaind Wang
- Phone0086-510-86380586
- AddressRm. 206, Bldg. 2, No. 2, Binjiang West Road
