Home Security Mini Wifi Camera Elderly Monitoring Emergency Watch Phone
| Feature | Features | ASK linkage alarm function |
| System | OS | Embedded Linux OS |
| system security | Three level user authority management | |
| online users | support 4 online visitors simultaneously | |
| DDNS | Free DDNS | |
| Control protocol | ONVIF 2.4protocol, high interoperability | |
| Processor |
Hisilicon processor,built-in ARM926 Max. 440MHz and a high-speed video co-processor. |
|

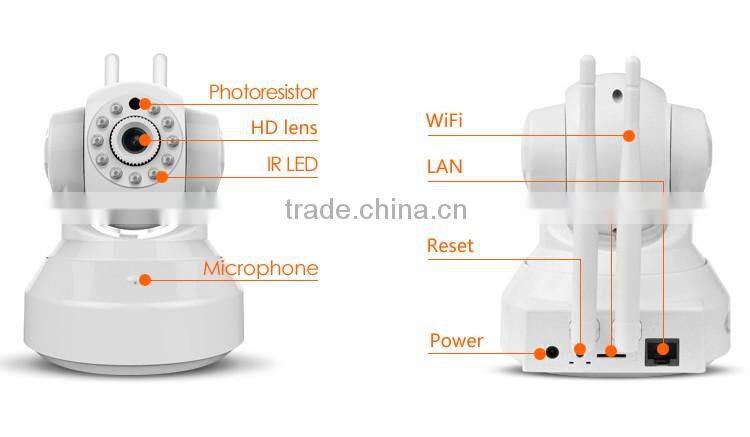

| Reset | Long press for 15 seconds to restore back to factory settings | |
| Collection | Image sensor | 1/4inch 720p Progressive scan CMOS sensor |
| CMOS | support AWB, AGC, BLC | |
| sensor size | 3.84mm×2.16mm | |
| SNR | ≥39dB | |
| Minimum illumination | 0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode) | |
| Lens/viewing angle |
3.6mm@ F1.4/56.14° |
|
| Night vision |
Dual IR-CUT filter auto switch, 9pcs 850nmΦ5mm LED, 10m IR distance |
|
| IR control |
IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
|
| Video | Compression Format | H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline |
| Video coding process | Multi-stream:720P/24fps+VGA/30fps+QVGA/30fps+720P 1fsJPEG snapshot | |
| Resolution | 720p/VGA/QVGA | |
| Bit Rate | CBR/VBR, output bit rate range:128~4096kbps | |
| Frame rate | 25fps | |
| Picture Adjustment | Contrast, brightness, saturation, chroma are adjustable. | |
| Audio | Input | Built in -48dB Microphone |
| Output | Built in speaker(8Ω1W) | |
| Sampling frequency / width | 8KHz/16bit | |
| Compression format | ADPCM/32kbps | |
| Network | Interface | 10Base-T / 100Base-TX, RJ45 connector |
| Network Protocol |
TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS, NTP,UPnP,RTSP,P2P,ONVIF etc. |
|
| WIFI | WiFi802.11b/g/n | |

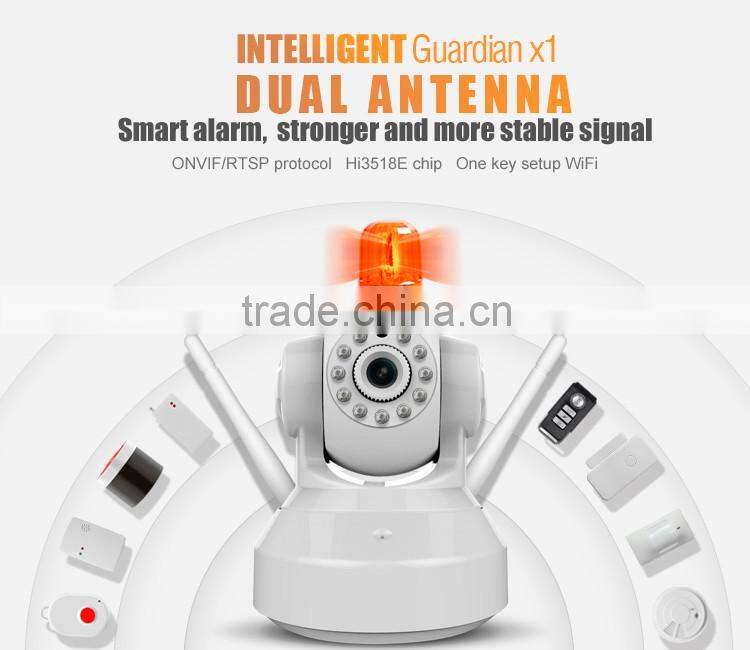

| Antenna | 3dBi antenna,stronger signal, more stable | |

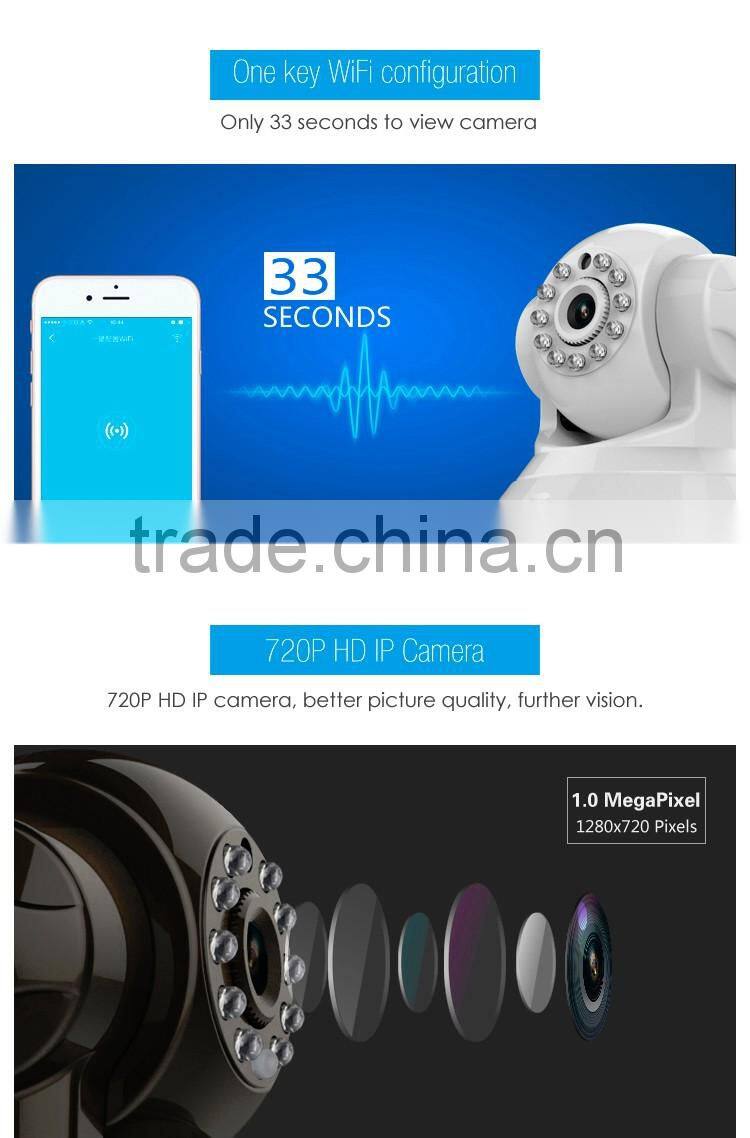

| Wireless network security | one key setup WiFi, do not need network cable . | |
| storage | Storage mode | Local storage / client storage |
| card | support 64G TF card. | |
| Interface | Micro SD | |

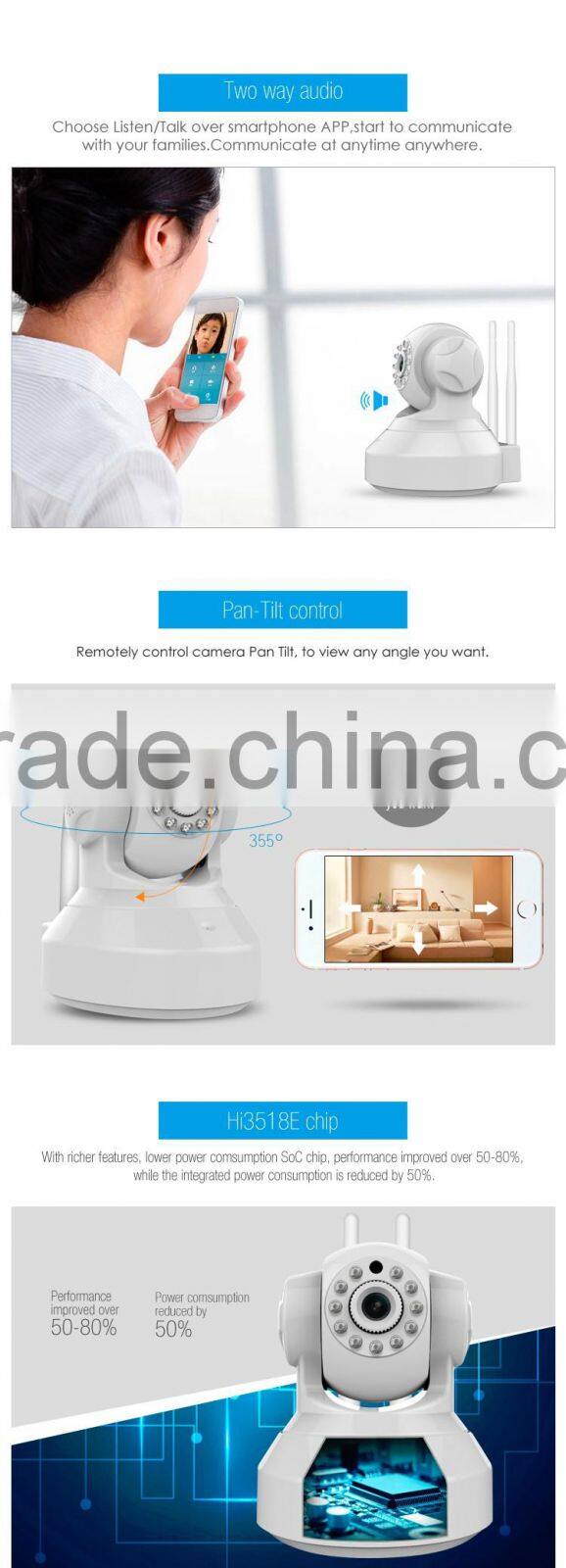

| Pan-Tilt | P/T | Pan:355°,Tilt:120° |
| Preset Postion | support up to 15 preset postions | |
| Limit method |
Software limit position, more accurate preset positions, lower Pan Tilt failure rate |
|
| Alarm | Alarm action |

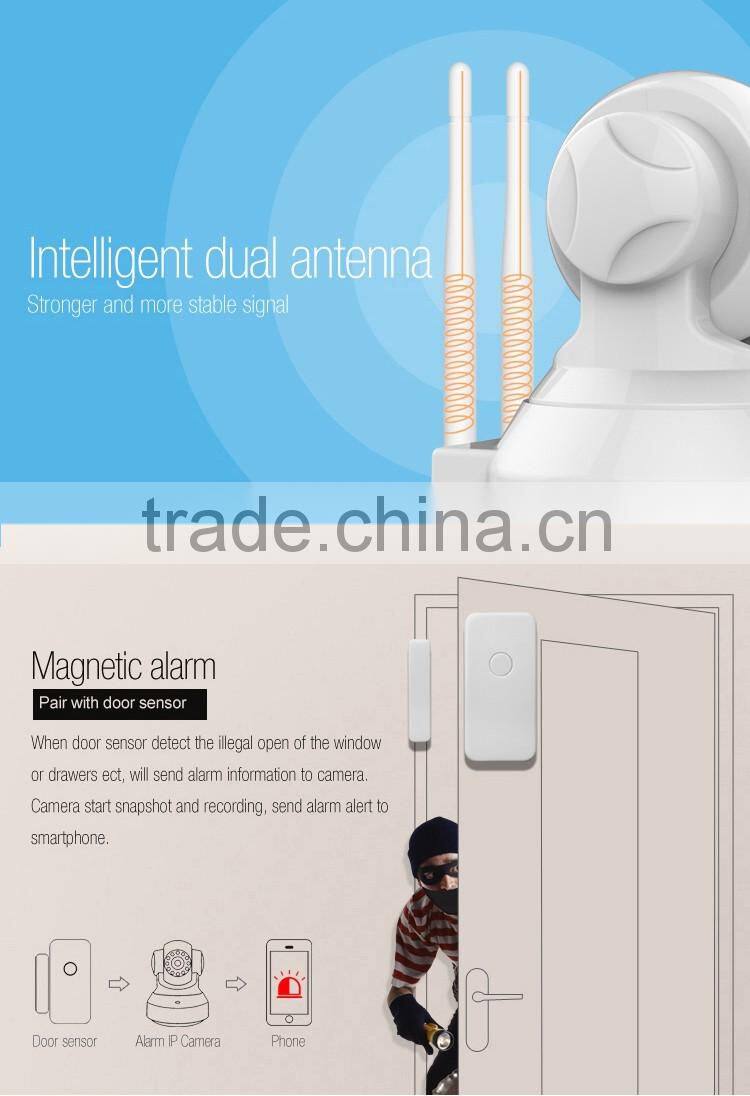

Sensors: ASK encoding, millions of encoding library, can support most sensor's factories which in provided in VStarcam software list, like door sensor, pir sensor, smoke detector, gas detector and etc. |
| Eye4 APP ASK module's compatibility | ||
| RF: 433MHz, transmit distance>80meters. | ||
| Sensor definition: sensor's category and type | ||
| Physical index | Rated Voltage | DC5/2A±0.3V |
| Power comsumption | Rated power:3.0W(IR ON) | |
| Working environment | Working Temperature:-20~70℃,Working Humidity 90% | |
| Weight | Gross Weight :755g (Note: in kind prevail) | |
| Housing material | ABS plastics | |
| Camera size | 195x140x130mm (L×W×H) | |
| Installation | Wall mounting, ceiling mounting | |
| Only for reference |
1. Why my family can`t connect the camera?
The camera can record the conneced user,so if orther devices need add the camera,you can link by manual control rather than wifi.
2. Why other customer can't connect the camera after test?
We need reset the camera after test,so that other user can add the camera.
3. Why my app can`t search and add the camera after the reset?
If your Eye4 Cloud add the camrea and reset the camera aleray,you need delete the record before you add the alarm camera again.
4. What's your payment terms?
We accept T/T,paypal,Western Union.
5. How to delivery the products?
We packing the products and then delivery them by DHL,UPS,FedEX and etc.
6. What’s your MOQ and delivery time?
A. About MOQ, for different products, there will be different MOQ, It is depending on your choice of products.
B. For delivery time, if you need one sample, our delivery time is 3-5 days. Or if more than MOQ, delivery time is 10-30 days.
