Small 90 Degree Shaft Mounted NRV Reducer

Small 90 Degree Shaft Mounted NRV Reducer thumbnail-1
Small 90 Degree Shaft Mounted NRV Reducer thumbnail-2
Small 90 Degree Shaft Mounted NRV Reducer thumbnail-3
Small 90 Degree Shaft Mounted NRV Reducer thumbnail-4
Small 90 Degree Shaft Mounted NRV Reducer thumbnail-5
Small 90 Degree Shaft Mounted NRV Reducer thumbnail-6
Small 90 Degree Shaft Mounted NRV Reducer photo-1
Small 90 Degree Shaft Mounted NRV Reducer photo-2
Small 90 Degree Shaft Mounted NRV Reducer photo-3
Small 90 Degree Shaft Mounted NRV Reducer photo-4
Small 90 Degree Shaft Mounted NRV Reducer photo-5
Small 90 Degree Shaft Mounted NRV Reducer photo-6
US$ 24 - 156 MOQ: 1 Set
Key Specifications
Get Latest Price
Gearing Arrangement:
Worm
Output Torque:
13-1550N.m
Rated Power:
0.1-25.8KW
Contact Supplier Request Quote Chat Now
Hangzhou Mechanic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Gearing Arrangement Worm
Output Torque 13-1550N.m
Rated Power 0.1-25.8KW
Input Speed 1400rpm
Output Speed 14-186.7r/min
Place of Origin Zhejiang, China
Model Number NRV
Brand Name MIC REDUCER

Product Description



 Specification



Type:

Worm Gear Speed Reducer

Model:

NRV030-150

Ratio:

1:5,7.5,10,15,20,25,30,40,50,60,80,100

Input Power:

0.1-25.8KW

Color:

Blue/Silver Or On Customer Request

Bearing:

C&U Bearing

Seal:

NAK & SKF

Material of Housing

Aluminum Alloy  /  Casting Iron

Warranty:

1 Year

Usages:

Industrial Machine: Food Stuff, Ceramics, Chemical, Packing, Dyeing, Woodworking, Glass

Quality Control System:

ISO9001:2008

Packing:

Carton and Wooden Case

Lubricant:

Synthetic & Mineral




Predisposition



Small 90 degree shaft mounted NRV reducer



NMRV

    PAM

IEC

 N M P D
5 7.5 10 15 20 25 30 40 50 60 80 100
25 56B14 50 65 80 9 9 9 9 9   9 9 9 9
30 63B5 95 115 140 11 11 11 11 11 11 11 11 11
63B14 60 75 90
56B5 80 100 120 9 9 9 9 9 9 9 9 9 9 9
56B14 50 65 80
40 71B5 110 130 160 14 14 14 14 14 14 14 14
71B14 70 85 105
63B5 95 115 140 11 11 11 11 11 11 11 11 11 11 11 11
63B14 60 75 90
56B5 80 100 120                 9 9 9 9
50 80B5 130 165 200 19 19 19 19 19 19 19
80B14 80 100 120
71B5 110 130 160 14 14 14 14 14 14 14 14 14 14 14
71B14 70 85 105
63B5 95 115 140               11 11 11 11 11
63 90B5 130 165 200   24 24 24 24 24 24
90B14 95 115 140
80B5 130 165 200   19 19 19 19 19 19 19 19 19
80B14 80 100 120
71B5 110 130 160               14 14 14 14 14
71B14 70 85 105
75 100/112B5 180 215 250   28 28 28
100/112B14 110 130 150
90B5 130 165 200   24 24 24 24 24 24 24
90B14 95 115 140
80B5 130 165 200         19 19 19 19 19 19 19 19
80B14 80 100 120
71B5 110 130 160                 14 14 14 14
90 100/112B5 190 215 250   28 28 28 28 28 28
100/112B14 110 130 160
90B5 130 165 200   24 24 24 24 24 24 24 24 24
90B14 95 115 140
80B5 130 165 200               19 19 19 19 19
80B14 80 100 120
110 132B5 230 265 300   38 38 38 38
100/112B5 180 215 250   28 28 28 28 28 28 28 28 28
90B5 130 165 200           24 24 24 24 24 24 24
80B5 130 165 200                     19 19
130 132B5 230 265 300   38 38 38 38 38 38 38
100/112B5 180 215 250           28 28 28 28 28 28 28
90B5 130 165 200                     24 24
150 160B5 250 300 350   42 42 42 42 42
132B5 230 265 250         38 38 38 38 38 38
100/112B5 180 215 200                 28 28 28 28

Small 90 degree shaft mounted NRV reducer

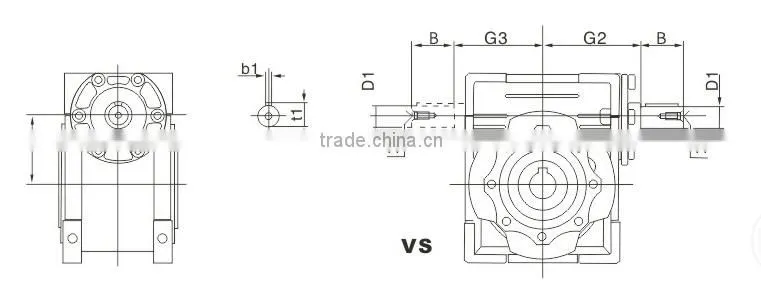

 NRV Dimensions



Small 90 degree shaft mounted NRV reducer



NRV

030

040

050

063

075

090

110

130

150

B

20

23

30

40

50

50

60

80

80

D1

9j6

11j6

14j6

19j6

24j6

24j6

28j6

30j6

35j6

G2

51

60

74

90

105

125

142

162

195

G3

45

53

64

75

90

108

135

155

175

I

30

40

50

63

75

90

110

130

150

b1

3

4

5

6

8

8

8

8

10

f1

-

-

M6

M6

M8

M8

M10

M10

M12

t1

10.2

12.5

16

21.5

27

27

31

33

38

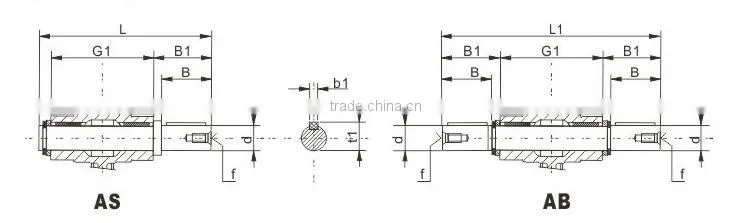

 Low Speed Shafts









NMRV d B B1 G1 L L1 f b1 t1
025

11g6

  (9)

 23

(25)

25.5

 (30)

 50

   81

(85.5)

 101     -

  4

 (3)

  12.5

 (10.2)
30 14h6 30 32.5 63 102 128 M6 5 16
40 18h6 40 43 78 128 164 M6 6 20.5
50 25h6 50 53.5 92 153 199 M10 8 28
63 25h6 50 53.5 112 173 219 M10 8 28
75 28h6 60 63.5 120 192 247 M10 8 31
90 35h6 80 84.5 140 234 309 M12 10 38
110 42h6 80 84.5 155 249 324 M16 12 45
130 45h6 80 85 170 265 340 M16 14 48.5
150 50h6 82 87 200 297 374 M16 14 53.5




Small 90 degree shaft mounted NRV reducer



#House shape on request is available



Packaging & Shipping

Small 90 degree shaft mounted NRV reducer



Packing: Carton and Wooden Case.


How to delivery:

By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.

By  air  - Buyer offer collect express account, or our sales team find suitable  express for buyers. (Mostly for sample)

Others  - We arrange to delivery goods to some place in China appointed by buyers.

Payment Terms



Small 90 degree shaft mounted NRV reducer



Payment Terms:   L/C, T/T, WesternUnion, MoneyGram, O/A



Production Line

Small 90 degree shaft mounted NRV reducer

Company Information



Our company is a professional manufacturer of gearbox in Hangzhou, and our strengths are as follows:



1. Quality assurance :  Every production process will be tested before shipping.



2. Production capacity :  There are at least 30,000 sets gearbox in stock every month.



3. Product customization is OK.



4. Any question will be replied within 24 hours and our export service team will provide professinal advice for you.



Small 90 degree shaft mounted NRV reducerSmall 90 degree shaft mounted NRV reducer

FAQ

1. Please check following detailed product information.

    A. Model/Size   B. Reduction Ratio   C.Shaft Diameter   D. Order Quantity.


2. Our Export Service Team will contact you with a quotation file within 24 hours after getting your enquiry.



3. Color: Blue/Silver or on customer request.



4. Packing: Carton and Wooden Case.


5. The payment L/C,T/T,Western Union ,Money Gram and  O/A  are accepted.

6.  How to delivery:

     By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.



     By air - Buyer offer collect express account, or our sales team find suitable  express for buyers. (Mostly for sample)



     Others - We arrange to delivery goods to some place in China appointed by buyers.



 7. When you place an order, our team will confirm with you about color, package,method of payment and delivery, then a sales contract will be sent to you to confirm.





............................................................................................................................................................................................



Hangzhou Mechanic Machinery Co.,Ltd



Add: Jiangdong Industrial Zone, Yipeng St, Xiaoshan District,



         Hangzhou City, Zhejiang Province, China  311225





* E-mail:  sales01@        4  Fax: 0086-571-88220651



( Mobile:0086-13205713858                 ( Tel: 0086-571-88220652





Small 90 degree shaft mounted NRV reducer
