Small Aluminium Alloy of Housing Speed Reductor

Small Aluminium Alloy of Housing Speed Reductor thumbnail-1
Small Aluminium Alloy of Housing Speed Reductor thumbnail-2
Small Aluminium Alloy of Housing Speed Reductor thumbnail-3
Small Aluminium Alloy of Housing Speed Reductor thumbnail-4
Small Aluminium Alloy of Housing Speed Reductor thumbnail-5
Small Aluminium Alloy of Housing Speed Reductor thumbnail-6
Small Aluminium Alloy of Housing Speed Reductor photo-1

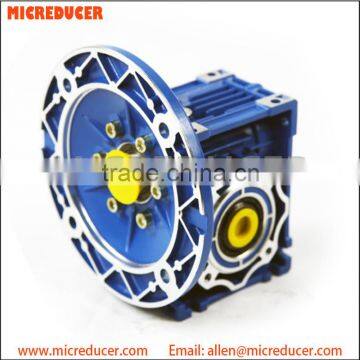

Small Aluminium Alloy of Housing Speed Reductor photo-2

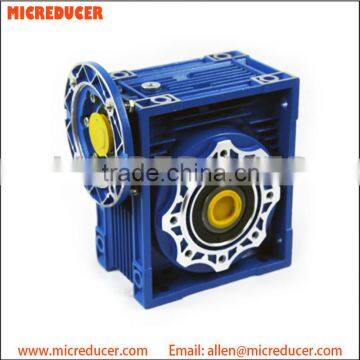

Small Aluminium Alloy of Housing Speed Reductor photo-3

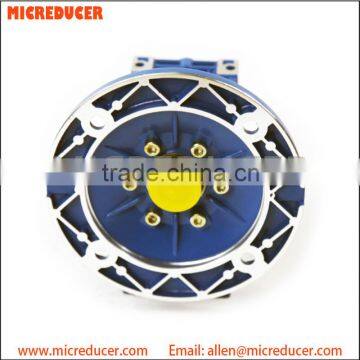

Small Aluminium Alloy of Housing Speed Reductor photo-4
Small Aluminium Alloy of Housing Speed Reductor photo-5
Small Aluminium Alloy of Housing Speed Reductor photo-6
US$ 24.52 - 156.83 MOQ: 1 Piece
Key Specifications
Get Latest Price
Gearing Arrangement:
Worm
Output Torque:
2.6-1760N.m
Rated Power:
0.06-15KW
Contact Supplier Request Quote Chat Now
Hangzhou Mechanic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Gearing Arrangement Worm
Output Torque 2.6-1760N.m
Rated Power 0.06-15KW
Input Speed 1400rpm
Output Speed 14-186.7r/min
Place of Origin Zhejiang, China
Model Number NMRV
Brand Name MIC REDUCER

Product Description

Small aluminium alloy of housing speed reductor



 specification



Type: Speed Reductor
Model: NMRV025-150
Ratio: 5,7.5,10,15,20,25,30,40,50,60,80,100
IEC Flange:

56B5/B14,63B5/B14,71B5/B14,80B5/B14,90B5/B14

,100B5/B14,112B5/B14,132B5/B14,160B5,180B5,200B5
Input Power: 0.06KW-15KW
Color: Blue/Silver Or On Customer Request
Bearing: Input: C&U  W&W           Output: HGH or Upon Customer Request
Seal: NAK & SKF
Material: Housing: Aluminum Alloy
Worm Gear-Copper-9-4#
Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
Wheel Boss : Cast Iron
Warranty: 1 Year
Usages: Industrial Machine: Food Stuff, Ceramics, Chemical, Packing, Dyeing, Woodworking, Glass...
Quality Control System: ISO9001:2008
Packing: Carton and Wooden Case
Lubricant: Synthetic & Mineral





Predisposition



Small aluminium alloy of housing speed reductor



NMRV

    PAM

IEC

 N M P D
5 7.5 10 15 20 25 30 40 50 60 80 100
25 56B14 50 65 80 9 9 9 9 9   9 9 9 9
30 63B5 95 115 140 11 11 11 11 11 11 11 11 11
63B14 60 75 90
56B5 80 100 120 9 9 9 9 9 9 9 9 9 9 9
56B14 50 65 80
40 71B5 110 130 160 14 14 14 14 14 14 14 14
71B14 70 85 105
63B5 95 115 140 11 11 11 11 11 11 11 11 11 11 11 11
63B14 60 75 90
56B5 80 100 120                 9 9 9 9
50 80B5 130 165 200 19 19 19 19 19 19 19
80B14 80 100 120
71B5 110 130 160 14 14 14 14 14 14 14 14 14 14 14
71B14 70 85 105
63B5 95 115 140               11 11 11 11 11
63 90B5 130 165 200   24 24 24 24 24 24
90B14 95 115 140
80B5 130 165 200   19 19 19 19 19 19 19 19 19
80B14 80 100 120
71B5 110 130 160               14 14 14 14 14
71B14 70 85 105
75 100/112B5 180 215 250   28 28 28
100/112B14 110 130 150
90B5 130 165 200   24 24 24 24 24 24 24
90B14 95 115 140
80B5 130 165 200         19 19 19 19 19 19 19 19
80B14 80 100 120
71B5 110 130 160                 14 14 14 14
90 100/112B5 190 215 250   28 28 28 28 28 28
100/112B14 110 130 160
90B5 130 165 200   24 24 24 24 24 24 24 24 24
90B14 95 115 140
80B5 130 165 200               19 19 19 19 19
80B14 80 100 120
110 132B5 230 265 300   38 38 38 38
100/112B5 180 215 250   28 28 28 28 28 28 28 28 28
90B5 130 165 200           24 24 24 24 24 24 24
80B5 130 165 200                     19 19
130 132B5 230 265 300   38 38 38 38 38 38 38
100/112B5 180 215 250           28 28 28 28 28 28 28
90B5 130 165 200                     24 24
150 160B5 250 300 350   42 42 42 42 42
132B5 230 265 250         38 38 38 38 38 38
100/112B5 180 215 200                 28 28 28 28

Small aluminium alloy of housing speed reductor

Flange Size



Small aluminium alloy of housing speed reductor



B5 IEC
56 63 71 80 90 100 112 132 160 180 200
Pm 120 140 160 200 200 250 250 300 350 350 400
Dm 9 11 14 19 24 28 28 38 42 48 55
bm 3 4 5 6 8 8 8 10 12 14 16
tm 10.4 12.8 16.3 21.8 27.3 31.3 31.3 41.3 45.3 51.3 59.3
B14 IEC
56 63 71 80 90 100 112 132
Pm 80 90 105 120 140 160 160 200
Dm 9 11 14 19 24 28 28 38
bm 3 4 5 6 8 8 8

10
tm 10.4 12.8 16.3 21.8 27.3 31.3 31.3 41.3



Small aluminium alloy of housing speed reductor



 #House shape on request is available



Packaging & Shipping

Small aluminium alloy of housing speed reductor



Packing: Carton and Wooden Case.


How to delivery:

By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.

By  air  - Buyer offer collect express account, or our sales team find suitable  express for buyers. (Mostly for sample)

Others  - We arrange to delivery goods to some place in China appointed by buyers.

Payment Terms



Small aluminium alloy of housing speed reductor



Payment Terms:   L/C, T/T, WesternUnion, MoneyGram, O/A

Production Line

Small aluminium alloy of housing speed reductor

Company Information



Our company is a professional manufacturer of gearbox in Hangzhou, and our strengths are as follows:



1. Quality assurance :  Every production process will be tested before shipping.



2. Production capacity :  There are at least 30,000 sets gearbox in stock every month.



3. Product customization is OK.



4. Any question will be replied within 24 hours and our export service team will provide professinal advice for you.





Small aluminium alloy of housing speed reductorSmall aluminium alloy of housing speed reductor



FAQ

1. Please check following detailed product information.

    A. Model/Size    B. Reduction Ratio    C. Flange Size    D. Order Quantity.


2. Our Export Service Team will contact you with a quotation file within 24 hours after getting your enquiry.



3. Color: Blue/Silver or on customer request.



4. Packing: Carton and Wooden Case.


5. The payment L/C,T/T,Western Union ,Money Gram and  O/A  are accepted.

6.  How to delivery:

     By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.



     By air - Buyer offer collect express account, or our sales team find suitable  express for buyers. (Mostly for sample)



     Others - We arrange to delivery goods to some place in China appointed by buyers.



 7. When you place an order, our team will confirm with you about color, package,method of payment and delivery, then a sales contract will be sent to you to confirm.







............................................................................................................................................................................................



Hangzhou Mechanic Machinery Co.,Ltd



Add: Jiangdong Industrial Zone, Yipeng St, Xiaoshan District,



         Hangzhou City, Zhejiang Province, China  311225





* E-mail:  sales01@        4  Fax: 0086-571-88220651



( Mobile:0086-13205713858                 ( Tel: 0086-571-88220652





Small aluminium alloy of housing speed reductor
