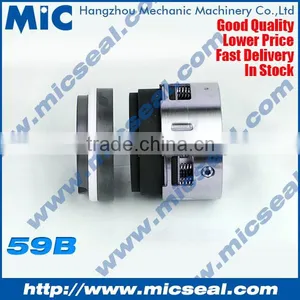

Help CenterMECHANICAL SEAL 58B 59B
Related Products
| d/D(mm) | D1 | D2 | L1 | L2 | L |
| 18/22 | 36 | 33 | 31.5 | 13.5 | 45.0 |
| 20/24 | 38 | 35 | 31.5 | 13.5 | 45.0 |
| 22/26 | 40 | 37 | 31.5 | 13.5 | 45.0 |
| 24/28 | 42 | 39 | 34.2 | 13.3 | 47.5 |
| 25/30 | 44 | 40 | 34.5 | 13.0 | 47.5 |
| 28/33 | 47 | 43 | 37.5 | 12.5 | 50.0 |
| 30/35 | 49 | 45 | 38.0 | 12.0 | 50.0 |
| 32/38 | 54 | 48 | 38.0 | 12.0 | 50.0 |
| 33/38 | 54 | 48 | 38.0 | 12.0 | 50.0 |
| 35/40 | 56 | 50 | 38.0 | 12.0 | 50.0 |
| 38/43 | 59 | 56 | 39.5 | 13.0 | 52.5 |
| 40/45 | 61 | 58 | 39.5 | 13.0 | 52.5 |
| 43/48 | 64 | 61 | 39.5 | 13.0 | 52.5 |
| 45/50 | 66 | 63 | 39.5 | 13.0 | 52.5 |
| 48/53 | 69 | 66 | 39.5 | 13.0 | 52.5 |
| 50/55 | 71 | 70 | 44.0 | 13.5 | 57.5 |
| 53/58 | 78 | 73 | 44.0 | 13.5 | 57.5 |
| 55/60 | 80 | 75 | 44.0 | 13.5 | 57.5 |
| 58/63 | 83 | 78 | 49.0 | 13.5 | 62.5 |
| 60/65 | 85 | 80 | 49.0 | 13.5 | 62.5 |
| 63/68 | 88 | 83 | 49.0 | 13.5 | 62.5 |
| 65/70 | 90 | 85 | 49.0 | 13.5 | 62.5 |
| 70/75 | 95 | 90 | 55.5 | 14.5 | 70.0 |
| 75/80 | 104 | 92 | 55.5 | 14.5 | 70.0 |
| 80/85 | 109 | 97 | 55.0 | 15.0 | 70.0 |
| 85/90 | 114 | 105 | 60.0 | 15.0 | 75.0 |
| 90/95 | 119 | 110 | 60.0 | 15.0 | 75.0 |
| 95/100 | 124 | 115 | 60.0 | 15.0 | 75.0 |
| Equivalent to: |
| Johncrane 58B, 59B; AES M04S, Vulcan 1659B |
| Materials available |
| Seal face: Ceramic, Carbon, SIC, TC |
| Elastomer: Nitrile, Viton, EPDM |
| Standard Seat: BO BP Seat |
| Operating Conditions |
| Temperature: -30°C to +260°C |
| Pressure: Up to 62bar , 900 psi |
| Speed: Up to 25m/s, 5000fpm |
| Depending on medium, size and material |
| Payment Terms: | L/C, T/T, WesternUnion, MoneyGram, O/A |
|---|
Process Of An Order
1. Please check product detailed information above.
A. Model/Size B. Face Material C. Order Quantity.
2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your enquiry.
3. When you place an order, our team will confirm with you about color, package,method of payment and delivery,
then a sales contract will be sent to you to confirm.
4. Packing: Cardboard box with shock (absorbing wrapper inside).
5. How to delivery:
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
Others - We arrange to delivery goods to some place in China appoint by buyers.
