3 level puzzle auto parking system/ samrt park solution Quality Choice
- 30000 Set / Sets per Month
- SHANGHAI
- T/T
Product Details
Type: | Other, Other, auto parking system | Height (mm): | Vehicle Length 5000 | Width (mm): | Vehicle Width 1850 |
Place of Origin: | Jiangsu, China | Brand Name: | CAP | Model Number: | CAP-MAP-PPS3 |
Warranty: | 1 Years |
Product Description
DESCRIPTION:
This kind of parking system normally is quasi-unmanned, driver parks vehicle on pallet, after driver leaves mechanical transmission work automatically.
PERFORMANCE:
1. The entrance of this system is on the ground level, the platforms on the top level can only move vertically, the platforms on the bottom level can only move horizontally, the platforms can move both ways.
2. There is one empty space on each level besides the top level, so that the top platforms can do vertical movement and upper vehicles can be moved to ground to be picked up. Vehicles on the ground level can be driven out directly.
3. All those actions are controlled by the auto parking system, driver just control the panel or swip card or even control the system via Wifi.

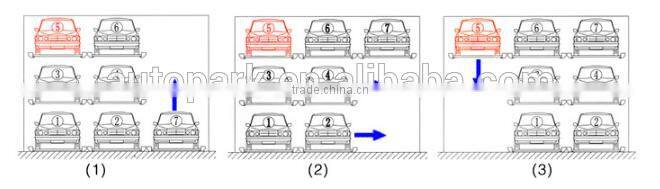

4. Like below map:
a. Full garage, I want to pick up vehicle No.5;
b. One of the ground level platform(No.7) goes upword, so that space below No.5 can be saved;
c. Platform No.5 goes to ground level and the vehicle is free to be picked up.
FEATURE:
1. PUZZLE PARKING SYSTEM can apple to variety kinds of place thanks to its flexible structure mode;
2. This system can provide many different parking options according to specific terrain conditions;
3. PLC intelligent control system, highly auto parking system ;
4. This equipment is simple and reliable, transmission system runs smoothly and quietly, saving much energy and good for environmental protection;
5. The cost of maintenance is very small because there are seldom parts need to be changed;
6. Long-service life, the whole equipment can be used for 30 years, and the main frame can be used for 50 years.

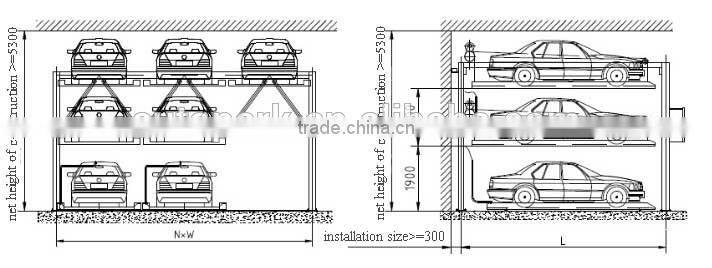

SPECIFICATION:
Model | CAP-MAP-PPS | Remarks | |
Vehicle spec. L X W X H (mm) | ≤5000 x 1850 x 1550 | can be customized | |
Vehicle weight (kgs) | ≤2000 | 2350(max) | |
Speed (m/min) | Vertical | Max. 4 | |
Horizontal | Max. 8 | ||
Power (kw) | Vertical | 2.2 | |
Horizontal | 0.2 | ||
Parking mode | Forward(backward) in & backward(forward) out | |
APPLICATION:

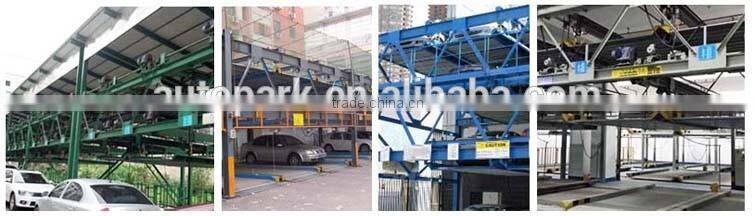

1. This puzzle auto parking system can be used for private garage, public parking, residential parking, car storage and some other projects.
2. This puzzle auto parking system can be used both indoor and outdoor,it is mainly used for outdoor, so the surface treatment can be water-proof and rust-proof.
3. This puzzle auto parking system can be used upground, underground and combining way.
OUR SERVICES:
1. 5 years guarantee for parts and 1 year for main structure;
2. 24 hours technical support by e-mail;
3. Calling or door to door service;
4. Friendly English software, user manual or detailed drawing/CD;
5. To meet different user purposes, we provide customized service.
