Type Other
Height (mm) Vehicle Length 5000
Width (mm) Vehicle Width 1850
Place of Origin Jiangsu, China
Brand Name CAP
Model Number CAP-MAP-PPS
Warranty 1 Years

DESCRIPTION:

This puzzle parking system normally is quasi-unmanned. Double the parking capability.

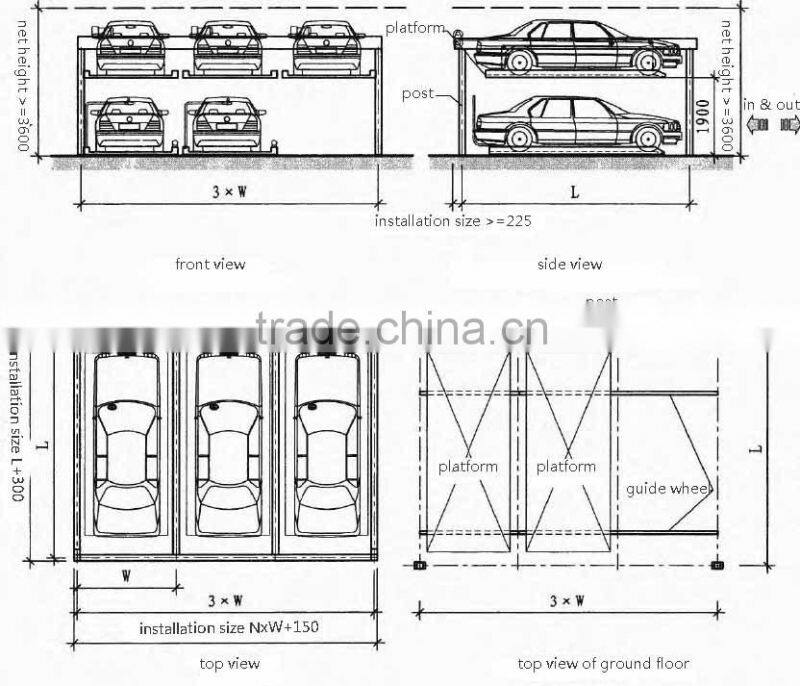

Machenical drawing as below:



PERFORMANCE:

1. Driver drives vehicle to empty pallet and leaves the pallet;

2. Control the system by button or IC card;

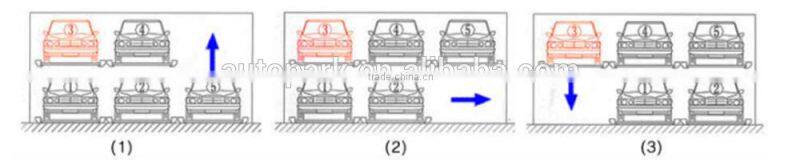

3. The puzzle parking system will work automated as below.



FEATURE:

1. PUZZLE PARKING SYSTEM can apple to variety kinds of place thanks to its flexible structure mode;

2. This system can provide many different parking options according to specific terrain conditions;

3. PLC intelligent control system, highly automated;

4. This equipment is simple and reliable, transmission system runs smoothly and quietly, saving much energy and good for environmental protection;

5. The cost of maintenance is very small because there are seldom parts need to be changed;

6. Long-service life, the whole equipment can be used for 30 years, and the main frame can be used for 50 years.

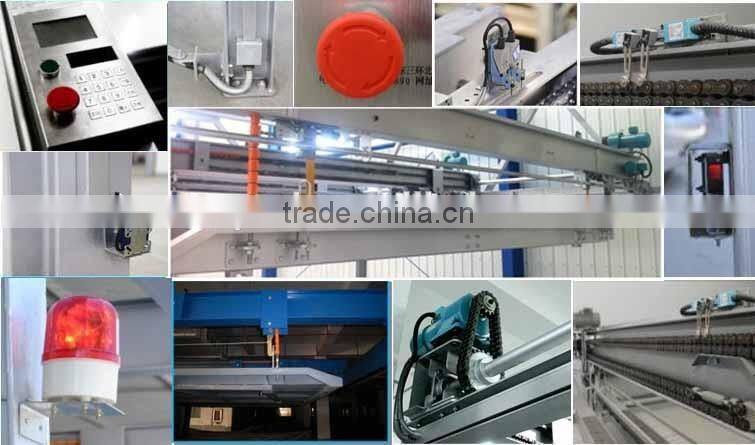

SAFETY FEATURE:

1. Photoelectric detection device for car over height and accidentally entrance of the people and cars;

2. Fixed style anti-falling frame device;

3. Sound and light warning device;

4. Electromagnetic style anti-falling device;

5. Safety warning plate;

6. Car blocking device on platform;

7. Emergency stop device;

puzzle parking system/ smart parking solution





APPLICATION:

1. This puzzle parking system can be used for private garage, public parking, residential parking, car storage and some other projects.

2. This puzzle parking system can be used both indoor and outdoor,it is mainly used for outdoor, so the surface treatment can be water-proof and rust-proof.

3. This puzzle parking system can be used upground, underground and combining way.



SPECIFICATION:

Model

CAP-MAP-PPS

 Remarks

Vehicle spec.   L X W X H (mm)

≤5000 x 1850 x 1550

can be customized

Vehicle weight (kgs)

≤2000

2350(max)

Speed (m/min)

Vertical

Max. 4



Horizontal

Max. 8



Power (kw)

Vertical

2.2



Horizontal

0.2



Parking mode

Forward(backward) in & backward(forward) out







PACKING AND SHIPPING:

1. Iron frame to fix equipment;

2. All electric wires and motor put into carton;

3. Iron frame and carton will be covered by stretch film;

4. Each package will twine three stretch film to prevent water;





CONTAINER LOADING:

40ft

18-24 units





OUR SERVICES:

1. 5 years guarantee for main structure and 1 year for parts;

2. 24 hours technical support by e-mail;

3. Calling or door to door service;

4. Friendly English software, user manual or detailed drawing/CD;

5. To meet different user purposes, we provide customized service.



COMPANY INFORMATION:



CAP AUTO-PARK CO., LTD. is the pioneer and leader of Parking comprehensive service industry in China , invested by China Ever Bright Group that is one of the key enterprises managed by China government, and CAP has more than 30 branches and sister companies all over the world; meanwhile, more than 90,000 garages designed and constructed by CAP.



Technology: CAP has been cooperating with the world top Auto-parking companies more than 20 years. Through introducing and adopting of the advanced technologies, CAP kept trying innovation to reach realizations of many outstanding patents all over the world.



Product: various styles of Auto-parking products to satisfy different parking requirements much more safe, convenient and efficient.



Business Model: Mass customized production, Investment & development and operation & management.



Professional Team: more than 50 experts with average over 10 years working in Auto-parking industry.



Production Capability: 35,000 garages annually.
