Help CenterPanel Cabinet Electrical 6063 Aluminum Din Rail
Related Products
Specifications
1.Panel Cabinet Electrical 6063 Aluminum Din Rail2.35mm DIN Type
3.Superior Steel Material
4.Zinc Coating and Passivation
Panel Cabinet Electrical 6013 Aluminum Din Rail

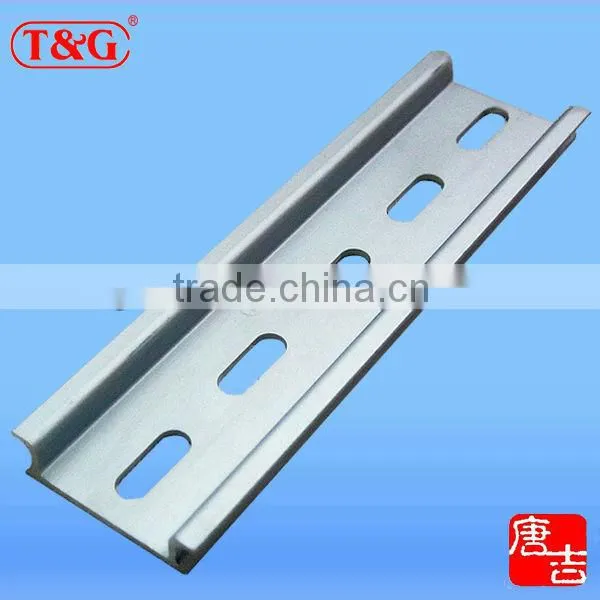

Panel Cabinet Electrical 6063 Aluminum Din Rail :A Panel Cabinet Electrical 6063 Aluminum Din Rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated and chromated bright surface finish. The term derives from the original specifications published by Deutsches Institut für Normung (DIN) in Germany
1.Specification
Brand: T&G
Item: Panel Cabinet Electrical 6063 Aluminum Din Rail
Model No.: T&G D357.5B15
DIN Type: 35 mm standard din rail
Cross Section Dimension: 35mm x 7.5mm x 1.0mm (Width x Height x Thickness)
Slot Dimension: 5.5mm x 15mm on 25mm center (other slot dimension available upon request)
Weight: 0.15 kg per meter
Material: Aluminum
RoHS Compliance:yes
Standards: EN50022, EN50035, EN60715, IEC715, IEC715, JISC2812, JB6525
2.
Data Sheet of Panel Cabinet Electrical 6063 Aluminum Din Rail
Din Type |
EN60715 |
Material |
Aluminum Alloy |
Anodizing surface finished | |
Salt Spray Test |
Over 72 hours |
Application |
used for mounting circuit breakers and industrial control equipment inside equipment racks
|
Model |
T&G D357.5B15 |
MOQ |
A.Small Orders is accepted |
B.By Sea: The MOQ.is 1000M will be fine | |
Payment Term |
A.L/C,T/T (Bank Transfer,Wire Transfer) |
B.Western Union | |
C.Paypal (For samples fee & Courier cost) | |
D.ESCROW | |
Delivery Time |
A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port | |
Delivery Term |
FOB NINGBO/SHANGHAI,CIF C&F and others |
Supply Ability |
2000000M per year |
Packaging Details |
A.Common Packing:100pcs /carton+ export carton |
B.Customized Packing:Over 30000M, Customized package accepted | |
Origin Country |
Hangzhou,China |
Certification |
RoHS Compliant |
3.Drawing of Panel Cabinet Electrical 6063 Aluminum Din Rail
T&G D357.5B15 | |
Width |
35mm |
Height |
7.5mm |
Thickness |
1.5mm |
Hole Dimension |
5.5mmx15mm on 25mm center(hole can be customized) |
Drawing: | |
 | |
4.Raw Material quality certificate
5.Main Market
Cooperative Partner
6.Package of the Panel Cabinet Electrical 6063 Aluminum Din Rail
7.Loading the Container
8. Application
FAQ
T&G Panel Cabinet Electrical 6063 Aluminum Din Rail is easily fit the DIN Rail cutter manufactured by normal manufacturers.
T&G Panel Cabinet Electrical 6063 Aluminum Din Rail use steel products produced by domestic ultra-large steel works.
All Panel Cabinet Electrical 6063 Aluminum Din Rail are gone through strict inspection before shipment.
