Product Details
Guide Width or Diameter: | 35mm | Guide Length: | 1m/2m | Model Number: | T&G D357.5E10+ |
Place of Origin: | Zhejiang, China | Brand Name: | T&G |
Product Description
35/7.5 Din Rail
Din Rail :A 35/7.5 Din Rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated and chromated bright surface finish. The term derives from the original specifications published by Deutsches Institut für Normung (DIN) in Germany
1.Specification
Brand: T&G
Item: 35/7.5 Din Rail
Model No.: T&G D357.5E10+
DIN Type: 35 mm standard din rail
Cross Section Dimension: 35mm x 7.5mm x 1.0mm (Width x Height x Thickness)
Slot Dimension: 6.2mm x 15mm on 25mm center (other slot dimension available upon request)
Weight: 0.315 kg per meter
Material: Cold rolled steel with a zinc chromate plating
RoHS Compliance:yes
Standards: EN50022, EN50035, EN60715, IEC715, IEC715, JISC2812, JB6525
2.
Detailed information of 35/7.5 Din Rail
Din Type | EN60715 |
Material | Cold Rolled Steel |
a zinc-plated and chromated bright surface finish | |
Salt Spray Test | Over 72 hours |
Application | used for mounting circuit breakers and industrial control equipment inside equipment racks
|
Model | T&G D357.5E10+ |
MOQ | A.Small Orders is accepted |
B.By Sea: The MOQ.is 1000M will be fine | |
Payment Term | A.L/C,T/T (Bank Transfer,Wire Transfer) |
B.Western Union | |
C.Paypal (For samples fee & Courier cost) | |
D.ESCROW | |
Delivery Time | A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port | |
Delivery Term | FOB NINGBO/SHANGHAI,CIF C&F and others |
Supply Ability | 2000000M per year |
Packaging Details | A.Common Packing:100pcs /carton+ export carton |
B.Customized Packing:Over 30000M, Customized package accepted | |
Origin Country | Hangzhou,China |
Certification | RoHS Compliant |
3.Data Sheet of 35/7.5 Din Rail
T&G D357.5E10+ Din Rail | |
Width | 35mm |
Height | 7.5mm |
Thickness | 1.0mm |
Hole Dimension | 6.2mmx15mm on 25mm center(hole can be customized) |
Drawing: | |
4.Raw Material quality certificate
5.RoHS Certificate
6.Main Market
Cooperative Partner
7.Package of the Din Rail
8.Loading the Container

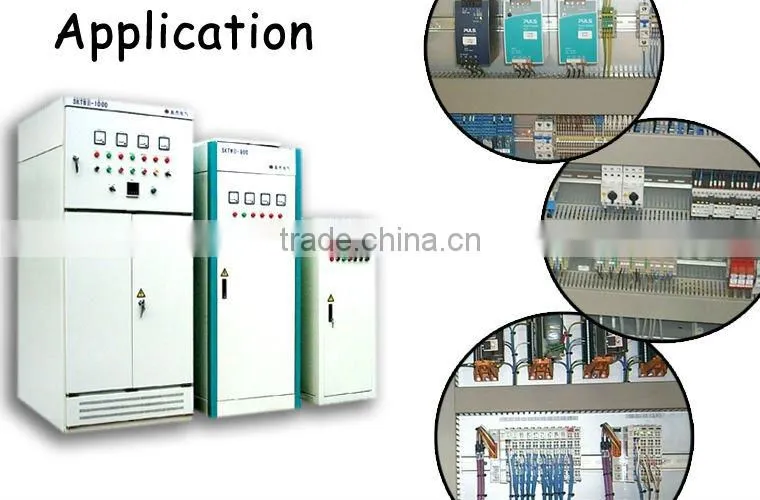

9. Application
35/7.5 Din Rail
This product is made from carbon constructional steel plate and passivated by yellow chrome acid after zincification which led to a good rigidity and good corrosion resistance.
<Model Number> T&G D357.5E10+
<Width> 35 mm
<Height> 7.5 mm
<Thickness> 1.0 mm
<Material> Steel
Length: 1 or 2 meter (We also offer factory cut service, pls tell us what length you need before you order)
Perforation: Perforated or unperforated
Default hole dimension: 6.2 mm x 15 mm on 25 mm center (Other dimensions upon request)

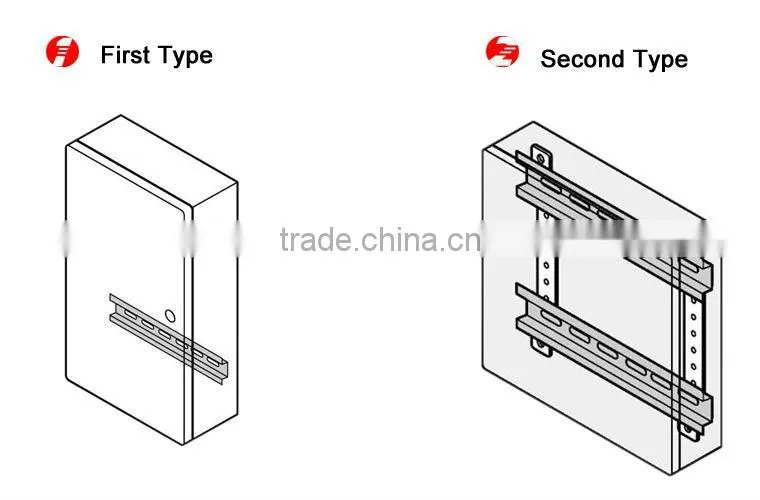

Get holes in the plate, then fix the DIN Rail and plate together with a proper size screw through the hole or fix on the mounted bracket strictly.
DIN Rail is suitable to mount breaker, contactor, surge protector, relay, terminal, PLC, module socket, module appliance and favorable to circuit design of electric appliance and maintenance. It improves installation speed and lower the manufacturing cost and use-cost.
Why choose 35/7.5 Din Rail from T&G?
Specialty
T&G offer a complete specification of 35/7.5 Din Rail and has more than nine years of experience in producing this product, equipped with adequate professional technical team, fully equipped, superb technology.
High Dimensional Accuracy
When you are using the 35/7.5 Din Rail , have you met these questions? Such as very arduous to mount or cannt mount, cannt put into cutter machine easily, etc. If so, the 35/7.5 Din Rail now you use must not have ccurate dimension.
Our 35/7.5 Din Rail are strictly produced according to International Standards (Including: EN50022, EN50035, EN50045, EN60715, IEC715, JB6525, JISC2812), graceful shapes, accurate dimension. Let you use handy when you use it !
Smooth Edge, Burr Free
Both edges of 35/7.5 Din Rail and puching holes are treated by special technics, not sharp and buff free. It neither hurts your hands nor damages the mounted components.
Beautiful Color without impurity
Processed by advanced electroplating technology, with good adhesion plating, lustre uniform, excellent resistance ability, ensure product surface glossed and day long constant new.
Environmental-friendly
