Help CenterJohn Crane Type 80 Impeller Pump Seal
Related Products
-
John Crane Blender Seal Type 502NegotiableMOQ: 1 Piece -
John Crane Type 21DIN Impeller Pump SealNegotiableMOQ: 1 Piece
-
John Crane Type 2100L1K Impeller Pump SealNegotiableMOQ: 1 Piece
-
John Crane Blower Seal Type 2100L1KNegotiableMOQ: 1 Piece
-
John Crane Agitator Seal Type 21NegotiableMOQ: 1 Piece
Specifications
John Crane Type 801.Alternative to:Crane 80,AES W01,Flowserve 168,Latty T510,Roplan 800/850,Roten 7K,Sterling 280,Vulcan 1688
John Crane Type 80 Impeller Pump Seal

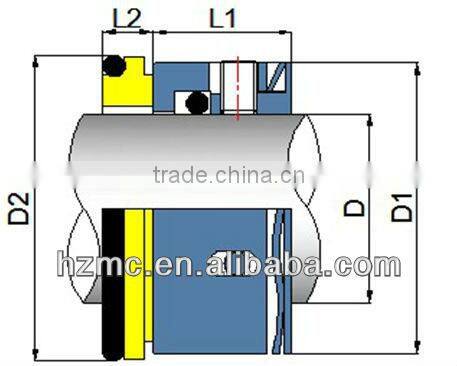

Dimensions
• Elastomer: Nitrile, Viton, EPDM
• Metal parts: SS304, SS316
Equivalent to
• Crane Type 80 Seal
• AES Seal W01
• Flowserve 168 Seal
• Latty T510 Seal
• Roplan 800/850 Seal
• Roten 7K Seal
• Sterling 280 Seal
• Vulcan 1688
Operating Range
• Shaft diameter: d1 = 16… 75 mm (0.625" ... 2.875")
• Pressure: Up to 10 bar (145 PSI),
• Temperature: t = -30 °C … +200 °C (-22 °F … +392 °F)
• Sliding velocity: vg = 5.5 m/s (1100 fpm)
• Admissible axial movement: ±2.0 mm
Process Of An Order
1. Please check product detailed information above.
A. Model/Shaft Size B. Face Material C. Order Quantity.
2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your
enquiry.
3. When you place an order, our team will confirm with you about ordered product information, package,
method of payment and delivery, then a sales contract will be sent to you to confirm.
4. Packing: Cardboard box (absorbing wrapper inside).
5. How to delivery:
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer provide your express account, or our sales team find suitable express for buyers.
Others - We arrange to delivery goods to some place in China appoint by buyers.
Real Products
Item parts
| Part No. | A | B | C | D | E | F |
| Description | Seal Face | Seat | Spring | Retainer | Elastomer Bellows | Drive Band |
Features
• O-ring pusher seals designed
• Wave spring arrangement
• Short working length mechanical seal
• The seal can installed either internal or external
• Most commonly used on lobe, gear pumps
Advantages
• Self-aligning unit automatically adjusts for shaft end play and run-out
• Eliminates potential shaft fretting damage between the seal and shaft
• Positive mechanical drive protects the elastomer bellows from overstressing
• Single coil spring improves tolerance to clogging
• Simple to fit and completely field repairable
• Can be used with practically any type and type of mating ring
Recommended applications
• Water and waste water technology • Food and beverage industry
• Pulp and paper industry • Water and waster water pumps
• Water, waste water, slurries (up to 5 % by weight) • Pulp (up to 4 % otro)
• Centrifugal pumps • Rotary and turbine pumps
• Compressors • Mixers
• Blenders • Chillers
• Agitators
