Specifications
Mechanical Seal Type 2100(L1K)1.Equivalent to:John Crane Type 2100(L1K),AES Seal B052,Flowserve Pac-Seal 142,Sterling 542

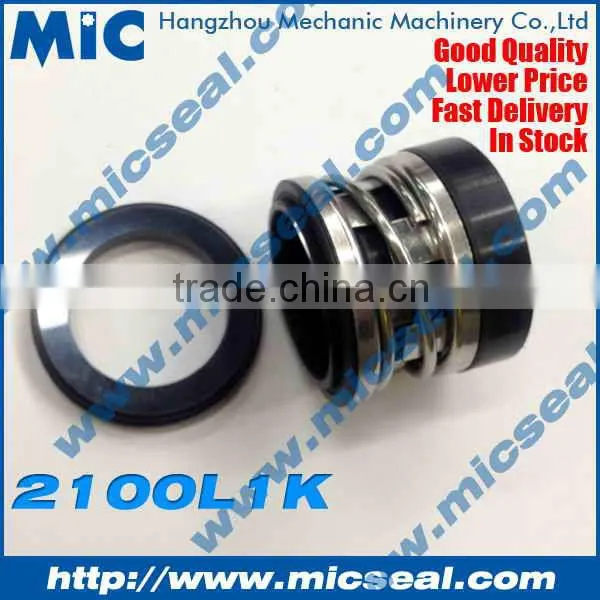

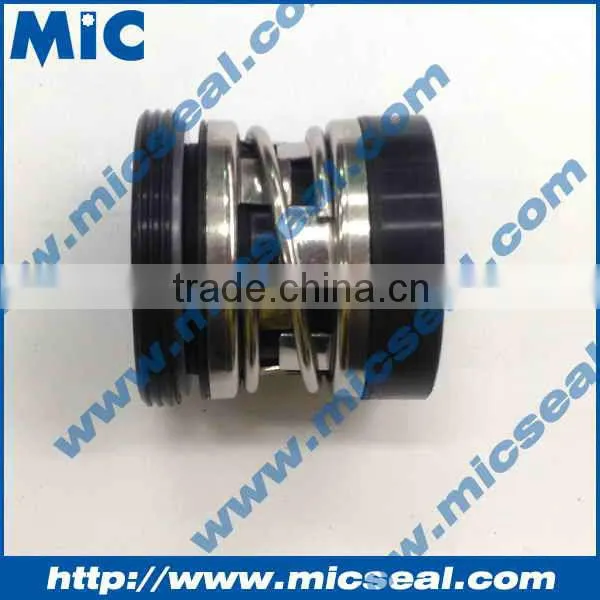

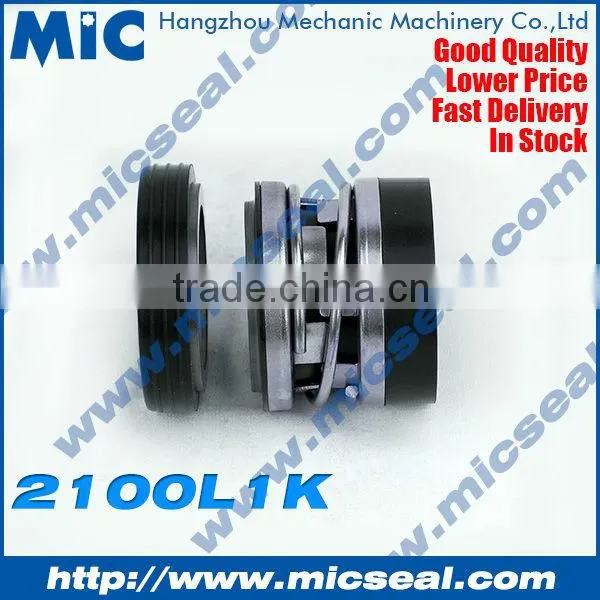

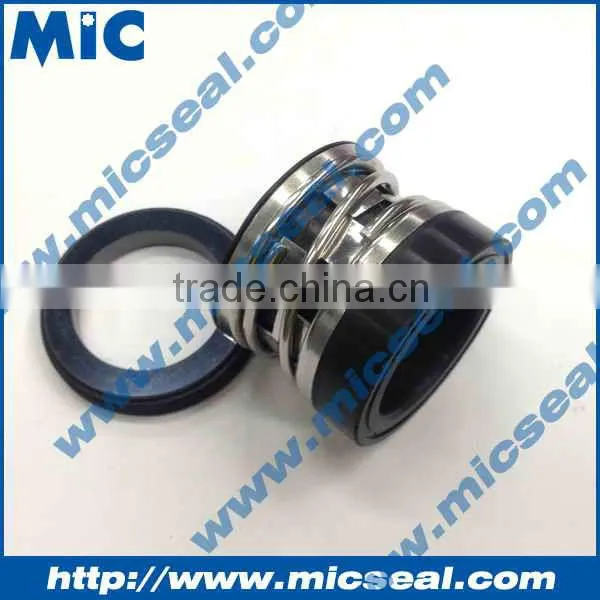

Type 2100L1K Shaft Seal for Pump

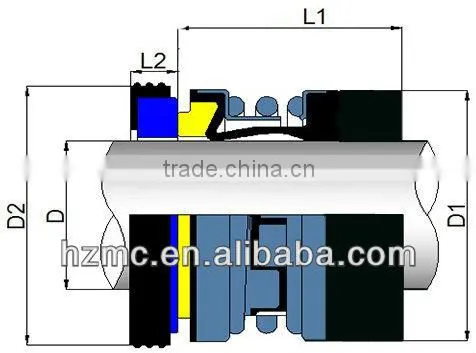

Dimensions
Materials
• Seal face: Carbon, Silicon Carbide
• Elastomer: Nitrile, Viton, EPDM
• Metal parts: SS304, SS316
Equivalent to
• John Crane Type 2100 (LK)
• Flowserve Pac-Seal 142
• Sterling 542
Operating range
• Shaft diameter: d1 = 10 … 100 mm (0.39" ... 3.94")
• Pressure: Up to 20 bar (290 PSI),
• Temperature: t = -20 °C … +200 °C (-4 °F … +392 °F)
• Sliding velocity: vg = 15 m/s (3000 fpm)
• Admissible axial movement: ±2.0 mm
Process Of An Order
1. Please check product detailed information above.
A. Model/Shaft Size B. Face Material C. Order Quantity.
2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your
enquiry.
3. When you place an order, our team will confirm with you about ordered product information, package,
method of payment and delivery, then a sales contract will be sent to you to confirm.
4. Packing: Cardboard box (absorbing wrapper inside).
5. How to delivery:
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer provide your express account, or our sales team find suitable express for buyers.
Others - We arrange to delivery goods to some place in China appoint by buyers.

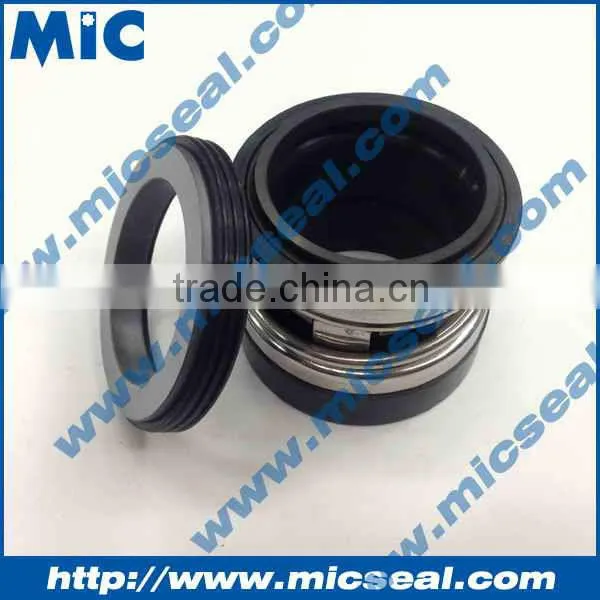

Real Products
Features
• For plain shafts
• Single and dual seal
• Elastomer bellows rotating
• Unbalanced
• Eliminates damage to bellows
• Non-Clogging, Single-Coil Spring
Advantages
• Unitized Construction
Allows for fast and easy installation and replacement
• Bellows Design
Innovative bellows design is pressure supported and will not crease or fold under high pressure
• Elastomer Drive Ring
Elastomer drive ring grips shaft to provide positive sealing and drive without set screws or drive pins
• Spring
Non-clogging single coil spring keeps seal faces closed and properly tracking during all phases of operation
• Heavy Duty Drive
Positive drive through interlocking tangs will not slip or break free during upset conditions
• Material Options
Available with the widest array of material options, including high performance Silicon Carbides
Recommended applications
• Water and waste water technology • Food and beverage industry
• Pulp and paper industry • Water and waster water pumps
• Blowers • Fans
• Centrifugal pumps • Rotary and turbine pumps
• Compressors • Mixers
• Blenders • Chillers
• Agitators • Air compressors
