1. G type popular din rail2. 9 years experience for Guide Rail
3. 32mmx15mmx1.5mm G type
4.Cold Rolled Steel with Zinc Plate
G type popular din rail
G type popular din rail :A G type popular din rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated and chromated bright surface finish. The term derives from the original specifications published by Deutsches Institut für Normung (DIN) in Germany
1.Specification
Brand: T&G
Item: G type popular din rail
Model No.: T&G D3215E15
DIN Type: 35 mm standard din rail
Cross Section Dimension: 35mm x 15mm x 1.5mm (Width x Height x Thickness)
Slot Dimension: 6.2mm x 15mm on 25mm center (other slot dimension available upon request)
Weight: 0.68 kg per meter
Material: Cold Rolled Steel
RoHS Compliance:yes
Standards: EN50022, EN50035, EN60715, IEC715, IEC715, JISC2812, JB6525
2.
Detailed information of G type popular din rail
Din Type | EN60715 |
Material | Cold Rolled Steel |
a zinc-plated and chromated bright surface finish | |
Salt Spray Test | Over 72 hours |
Application | used for mounting circuit breakers and industrial control equipment inside equipment racks
|
Model | T&G D3215E15 |
MOQ | A.Small Orders is accepted |
B.By Sea: The MOQ.is 1000M will be fine | |
Payment Term | A.L/C,T/T (Bank Transfer,Wire Transfer) |
B.Western Union | |
C.Paypal (For samples fee & Courier cost) | |
D.ESCROW | |
Delivery Time | A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port | |
Delivery Term | FOB NINGBO/SHANGHAI,CIF C&F and others |
Supply Ability | 2000000M per year |
Packaging Details | A.Common Packing:100pcs /carton+ export carton |
B.Customized Packing:Over 30000M, Customized package accepted | |
Origin Country | Hangzhou,China |
Certification | RoHS Compliant |
3.Data Sheet of G type popular din rail
T&G D3215E15 G type popular din rail | |
Width | 32mm |
Height | 15mm |
Thickness | 1.5mm |
Hole Dimension | 6.2mmx15mm on 25mm center(hole can be customized) |

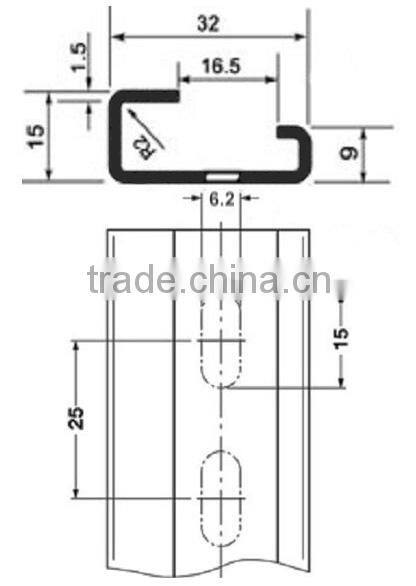

Drawing: | |
 | |
4.Raw Material quality certificate

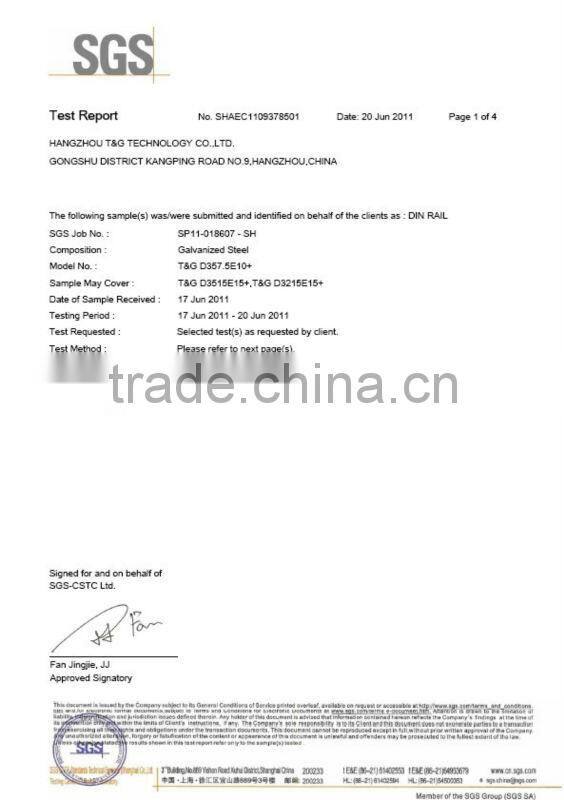

5.RoHS Certificate
6.Main Market
Cooperative Partner
7.Package of the G type popular din rail
8.Loading the Container
9. Application
FAQ
T&G G type popular din rail din rail mounting enclosures is easily fit the DIN Rail cutter manufactured by normal manufacturers.
T&G G type popular din rail use steel products produced by domestic ultra-large steel works.
All G type popular din rail are gone through strict inspection before shipment
