Theory Electromagnetic Relay
Usage Other, YOMIN
Size Miniature
Protect Feature Sealed
Contact Load High Power



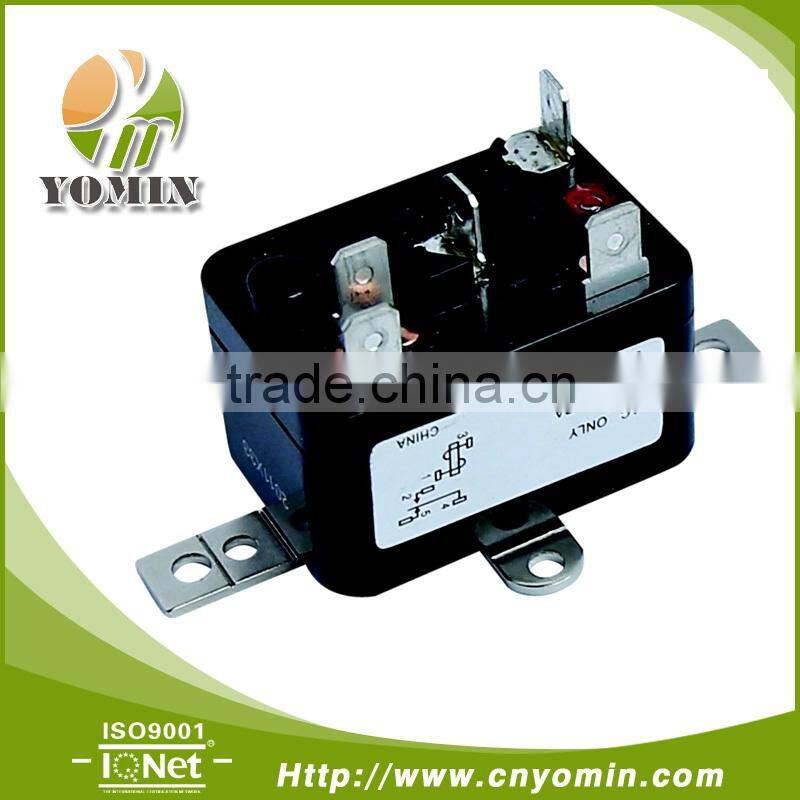

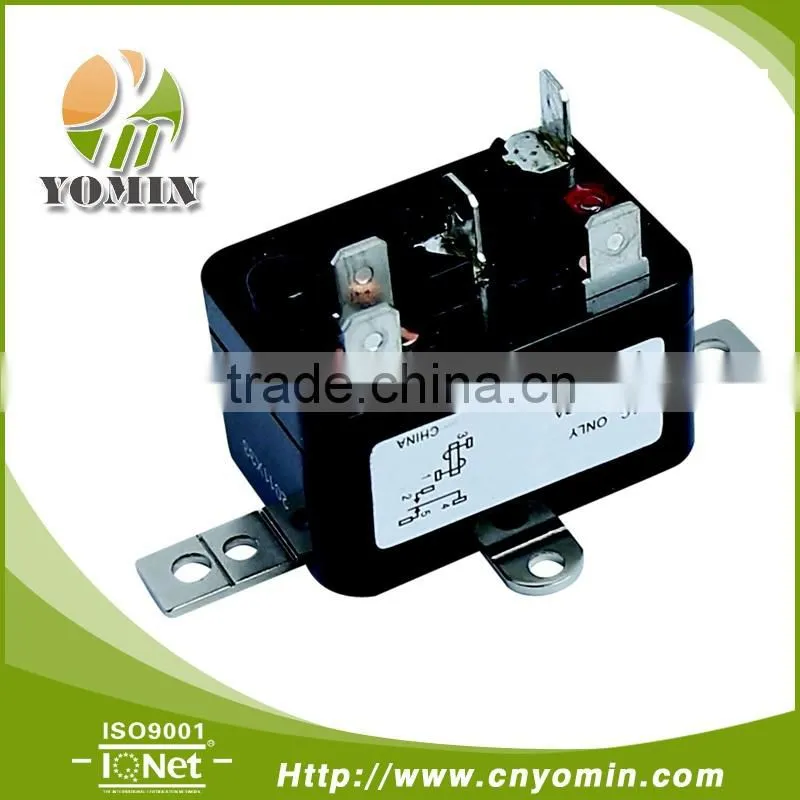

High quality safety cooling  High Power  Fan Relay

high quality safety cooling High Power Fan Relay



Features



1) 16A switching capability



2) 2.5kV dieletric strength (between coil and contacts )



3) Panel mount types available



4) Environment friendly product (RoHS COMPLIANT)



5) Outline Dimensions:4.70×32.0×28.5mm







Technical Parameter

high quality safety cooling High Power Fan Relay

Oedering Iformation



aultop

relay

 type mount

contact

arrangement

coil voltage

form

 coil volatage

cunstomer

special code
ATR 1 M 1 D 24


Metal

Bracket

1:FormaA

2:FormaB

3:FormaC

D:DC

A:AC

AC:6TO 227VAC

AC:6TO 120VDC





Coil Power

Coil Power
DC type:2.1W;  AC type: 3.5VA



 Contact Data

Contact arrangement: 1A, 1B, 1C
Contact resistance: 50mΩ max.(at 1A 24VDC)
Contact Material Silver alloy

Contact yating:



(Res. Load)

FormA:16A 250VAC ,resistive load
FormB:8A 250VAC ,general load
FormC:16A 250VAC ,resistive load
Max. Switching Voltage: 250VAC
Max. Switching Current: 16A
Max. Switching Power: 4000VAC
Mechanical endurance: 1106 OPS
Electrical endurance: Form A :SPST-NO 1105OPS(16A 250VAC,Resistive load,at 65°C1s on 9s off)
Form B:SPST-NC 3104 OPS(8A 250VAC ,General use, at 40°C 1s on 9s off)
Form C: SPDT-NO+NC 1105OPS (16A 250VAC Resistive load, at 65°C 1s on 9s off)



Characteristics

Insulation resistance   500MΩ max.(at500VCD) Vibration resistance 10Hz to 55Hz 2.54mmDA
Dielectric strength Between coil & contacts 2500vac 1min Ambient temperature -40°Cto 65°C
Between open contact Dust protected Humidity 5%to 85%RH
Operate time(at nomi.Volt.)   DC type: 25ms Max. Termination QC
Release time(at nomil.Volt.)   DC type:25ms Max. Unit weight Approx.71g
Temperature rese(at nomoi.Volt.)   90k Max. Construction Dust protected
Shock resistance 9Functional)   147m/s211ms



 Notes:The data shown above are initiai values.



 Coil Data At 23°C

Nominal voltage VDC

Pick-up voltage VDC max

 Drop-out Voltage VDC min Max.Voltage VDC Coil Resistance Ω Nominal Voltage VDC

Pick-up voltage VDC max

 Drop-out Voltage VDC min Max.Voltage Coil Resistance Ω VDC Coil Resistance Ω
6 4.50 0.6 6.6 17.5×(1±10%) 6 5.1 1.2 6.6 4.8 ×(1±10%)
9 6.75 0.9 9.9 40 ×(1±10%) 12 10.2 2.4 13.2 19 ×(1±10%)
12 9.00 1.2 13.2 70 ×(1±10%) 24 20.4 4.8 26.4 90 ×(1±10%)
24 18.00 2.4 26.4 280 ×(1±10%) 48 40.6 9.6 52.8 300  ×(1±10%)
48 36.00 4.8 52.8 1120 ×(1±10%) 120 102.0 24 132 2000 ×(1±10%)
120 90.00 12 132 7000  ×(1±10%) 240 204.0 48 264 7200 ×(1±10%)
  277 235.0 55.4 304.7 11000 ×(1±10%)



 Note:Maximum voltage refers to the maximum voltage which relay coiol could endure in a short preiod of time.

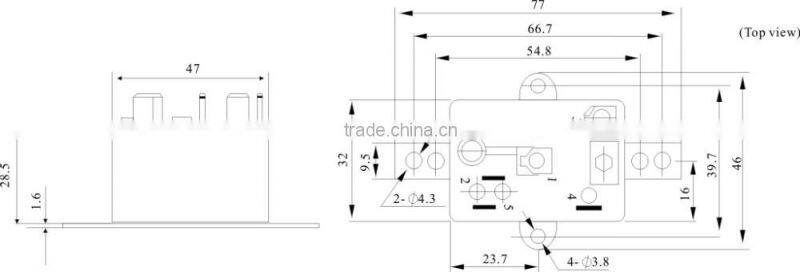

Outline Dimensions





high quality safety cooling High Power Fan Relay

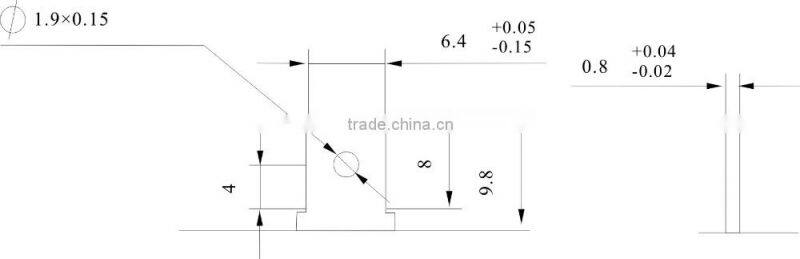

Terminals Type







  high quality safety cooling High Power Fan Relay

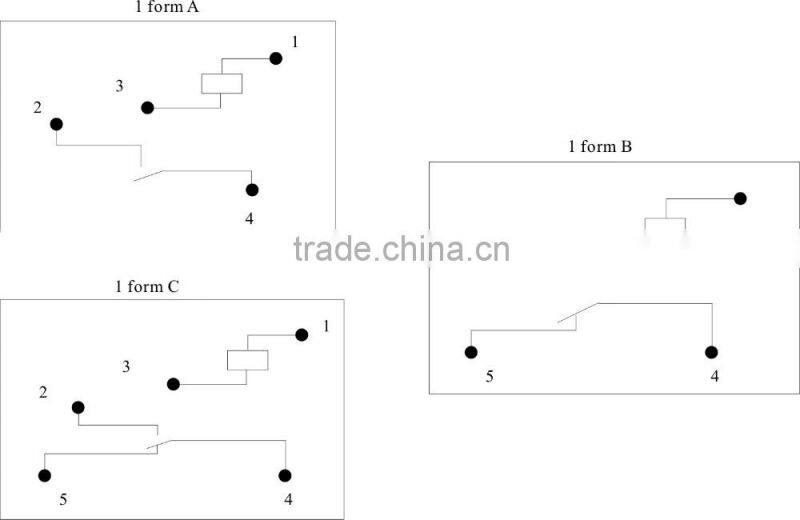

Wiring Diagram
