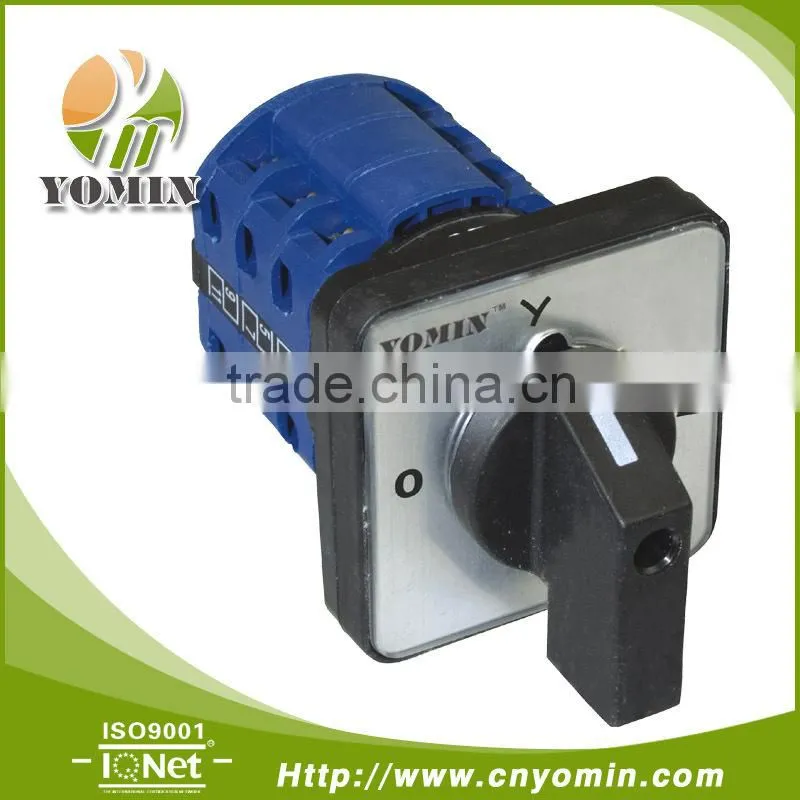

Good Quality 125A 2-CELL 5POS Multi Step Cam Switch, Cam Switch/
US$ 3.1 - 8.3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
DW26-125/2+ST001
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
63A 2-CELL 3POS/2POS Cam Switch With Protective Enclosure (IP65)US$ 2.1 - 8.1MOQ: 1 Piece -
Good Quality 20A 4-CELL 3POS/2POS Cam Switch With Protective Enclosure (IP65), Cam Switch/US$ 1.1 - 7.6MOQ: 1 Piece
-
Good Quality 63A 4-CELL 3POS Multi-Speed Switch (Selector Switch) for Motor, Cam Switch/US$ 2.4 - 8.6MOQ: 1 Piece
-
China Manufacture 25A 5-CELL 3POS/2POS Cam Switch With Protective Enclosure (IP65), Cam Switch/US$ 1.2 - 8.6MOQ: 1 Piece
-
Good Quality 25A 1-CELL 3POS/2POS Cam Switch With Protective Enclosure (IP65), Cam Switch/US$ 2.1 - 8.3MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
YOMIN
Model Number
DW26-125/2+ST001
Max. Current
125A
Max. Voltage
690V AC
Mechanical Life
100,000times (Operation frequency is 120 times per hour
125A 2-CELL 5POS Multi Step Cam Switch
Model: DW26-125/2+ST001
Product Overviews
The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switch are suitable for AC as well as DC application used for virtually all purposes, such as motor control, panel meter switching, control and distribution panel, etc.

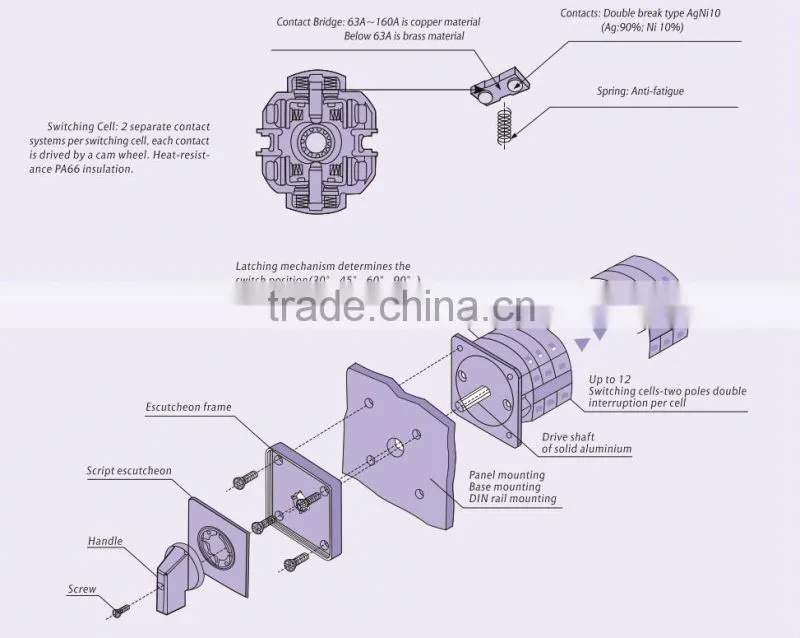

Construction Demo:
Product Description
Multi Step Cam Switch directly operate the motor with AC3 or AC4 duty rating for control step of motor.

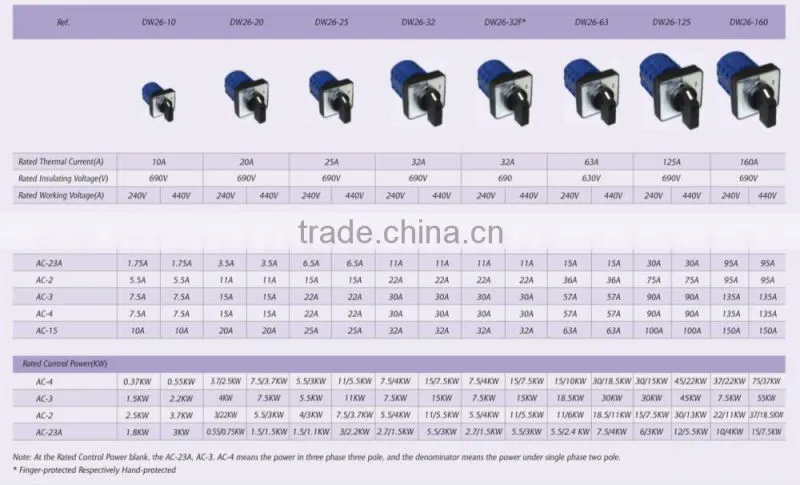

Below is DW26 series overall specifications.
Specifications
- Max. Current...................................................125A
- No. of Cells.....................................................2-Cell
- Function..........................................................Multi Step Selectivity
- No. of Switch Positions.................................5POS.
- Max. Voltage....................................................690V AC
- Frequency........................................................50/60Hz
- Operation Series.............................................Rotary Cam
- IP / NEMA Rating.............................................IP20
- Working Temperature....................................-25°C~+40°C
- Altitude............................................................≤2,000m
Relative Humidity............................................≤50% @ Max. +40°C, (NOTE: allow higher humidity with low temperature less than 40°C eg.:humidity 90% @ 20°C)
- Customized Escutcheon................................Provided
- Standards........................................................IEC60947-3, EN60947-3, VDE0660 part 107, IEC60204, VDE0113,
- Mechanical Life...............................................100,000times
- Electrical Life...................................................30,000times
- Operative Frequency......................................120times per hour.
- Pollution Rating..............................................Class III
- Installation.......................................................Panel Mounting.
- Sample Service...............................................Pay to provide
- Quality Assurance..........................................24 months
- Item Condition................................................Brand-New

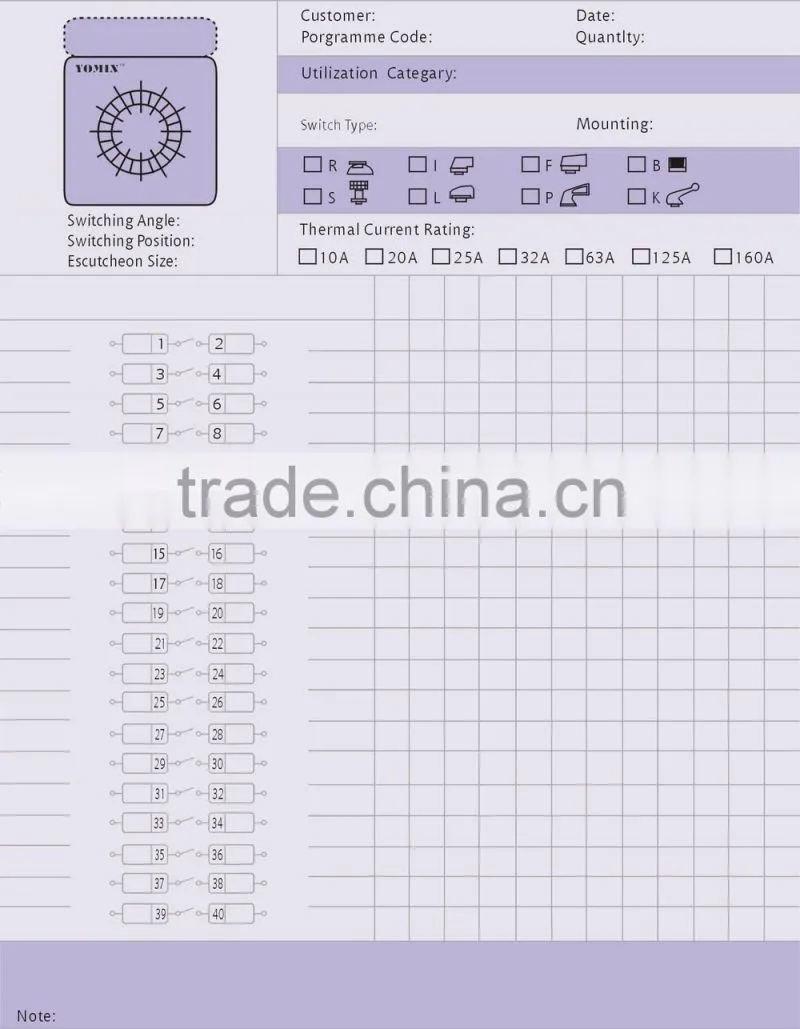

Selection Form
| Item | Rated Thermal Current | No. of Cells | Programme Code |
| Model | (A) | ||

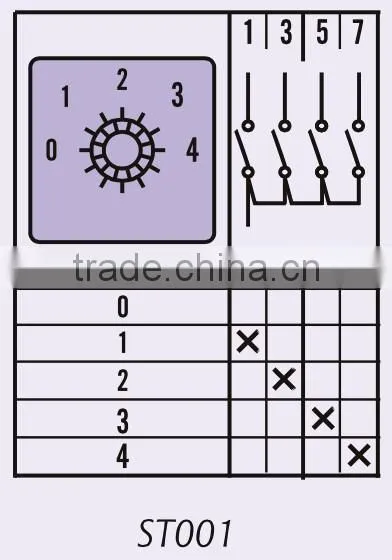

| DW26 | 10, 20, 25, 32, 63, 125, 160 | 2 | +ST001 |

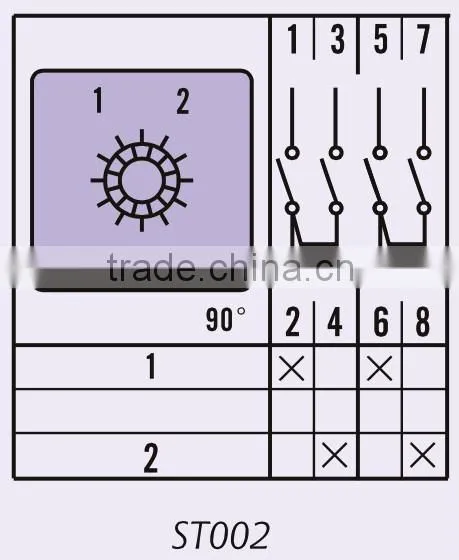

| 2 | +ST002 | ||

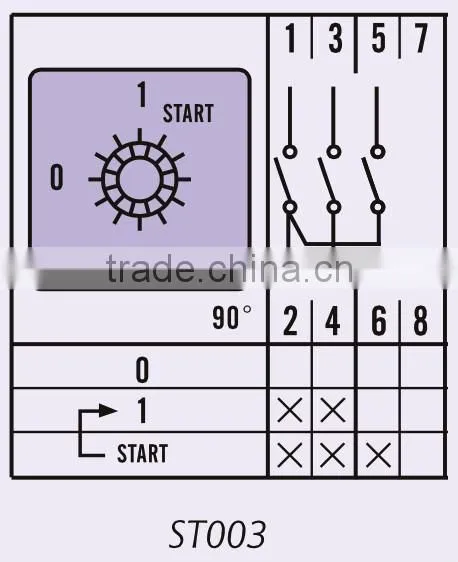

| 2 | +ST003 |
Note:
Please mention the Programme Code when ordering.

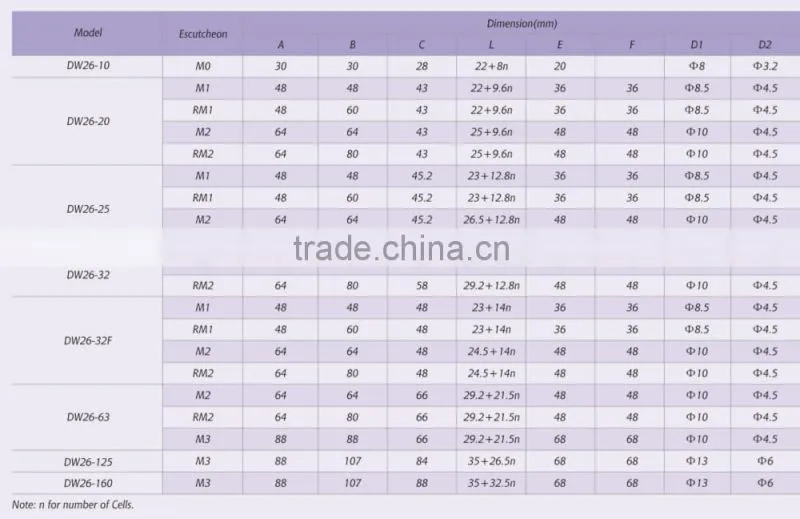

Dimension
If you would like to find out more details of our products, please feel free to contact me by mobile: 0086 13968745210
