Specifications
>Most professional station>OEM ODM standard SPEC
>Frequency:76-108MHz (OEM 70-120MHz)
>High Quality 5 years Warranty
Description:
-------------------------------------------------------------------------------------
- User programmable frequency
- Easily choose your frequency LCD and buttons,No manual tuning required
- Japan Phase Lock Loop (PLL) Technology
- Works with standard FM receivers
- Hi-Fi Steroe audio quality
- Adjustable input level with over modulation indicator
- Stereo 1/4-F audio input connector
- Choice of GP antenna or telescopic antenna
- Temperature protect
- Standing Wave Protect
- 1 years warranty
Specifications:
-----------------------------------------------------------------------------------------
- DC input:2.1mm
- input voltage:DC12V
- Operating current:1500mA
- Frequency :76~108MHz
- Modulation:WFM
- Frequency Step:0.1MHz
- Frequency stabilization method:PLL
- Deviation:±75KHz
- RF Output:7 W
- Output Impedance:50Ω
- Harmonic radiation:-60db
- Frequency Response:50~15000Hz
- Distortion:0.2 %
- Pre-emphasis delay:50us
- Stereo Separation:40db
- Input level :-15dbV
- Input impedance:50KΩ
- SNR:65db
- Match the microphone :ECM mic
- Size :128*95*55mm
- Color: black
- Weight :0.45kg
- Working temperature:0~45°C

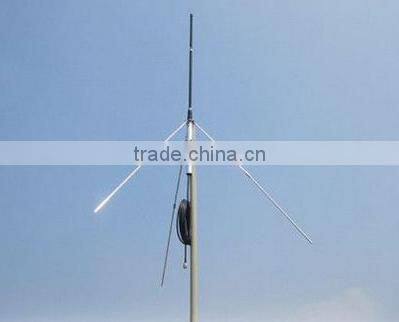

This is the only one 1/4 wave GP antenna in the world, which can easily adjust the accuracy frequency for fix your FM transmitter.It is also the design of anti-rain and lightness. It is very sure that this antenna is your best choice for your FM transmitter.
To know the transmitter:
-----------------------------------------------------------------------------------------------
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
digital tv transmitter
Below are the approximate range of different power FM Transmitters. ( The range is radius,The following distance is bassed on the antenna . )
- 50W TV Transmitter :3M ~10KM
- 100W TV Ttransmitter : 5KM ~ 15KM
- 300~500W TV Transmitter : 10KM ~20KM
- 1KW FM Transmitter : 15KM ~ 25KM
- 3KW FM Transmitter : 30KM ~40KM
- TV-VHF-5KW:with the 4 Bay DV1 antenna:45KM
- TV-VHF-10KW:with the Slot antenna:80KM
- TV-UHF-5KW:with the Slot antenna:45KM
- TV-UHF-10KW:with the Slot antenna:80KM
- Digital TV 50~100W:10KM~15KM
- Digital TV 300~500W:25~30KM
- Digital TV 1KW:40KM
What we can do for you?
- If you need a set of perfect professional FM/TV transmission station.We can help you.Welcome to contact us .
- If you have any problem of the FM/TV transmission.Please contact us.we are a professional team who can help you.
- If you are in Guangzhou,welcome to our office to know more information about the FM/TV transmission.
- If you want to get some English manual,please contact me.
About us:
------------------------------------------------------------------------------------------
We specialized in production and sales of FM / TV Transmitter , FM / TV antenna , the FM / TV transmitter accessories. We have been exporting FM /TV transmitter for 6 years. We have clients all over the world, not only the resellers but also the consumers. With 6 years experience in this field ,we have professional team and excellent aftersales service. We dedicated in supplying the best quality products with competive prices and excellent customer sevice! If you have any question about it , No matter you buy or not, please feel free to tell us your questions,we are very willing to help you and solve your problems.
Our factory:
Products list:
-----------------------------------------------------------------------------------------
We have modernization of the factory . You are welcome to visit our factory when you come to China.
At present , there are already 1095 customers around the world visited our Guangzhou Tianhe office . If you come to China , you are welcome to visit us .
If you want to come to my office,please contact:
Erin Huang
Tel:+86-2-87597795 +86-2-87588285
Cellphone:+86 15800205544
Skype:Erin-huang2
At Fair
This is our participation in 2012 Global Sources Hong Kong Electronics Fair . Customers from all over the world finally have a chance to get together.
How to find our Guangzhou Office:
-----------------------------------------------------------------------------------------
You can search this numbers "Fmuser " in google map , then you can find our fmuser office .
FMUSER Guangzhou office is in Tianhe District which is thecenter of the Canton . Very near to the Canton Fair , guangzhou railway station, xiaobei road and dashatou , only need 10 minutes if take TAXI . Welcome friends around the world to visit and negotiate .
Our team:
------------------------------------------------------------------------------------------
We have a good team who are work in unity and help one another.We will help you to sovle any problems in our different products.
