Specifications
>Most professional station>OEM ODM standard SPEC
>Frequency:76-108MHz (OEM 70-120MHz)
>High Quality 5 years Warranty

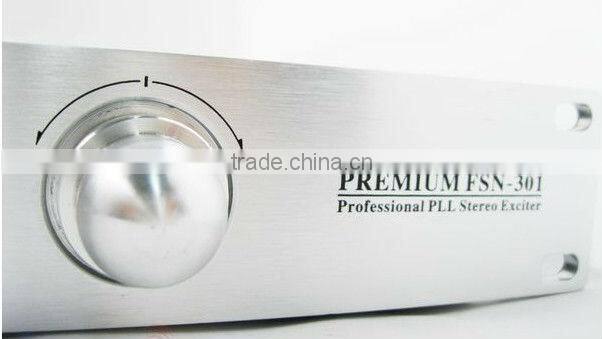

Description:
-------------------------------------------------------------------------------------
- 0 ~ 30W adjustable power.

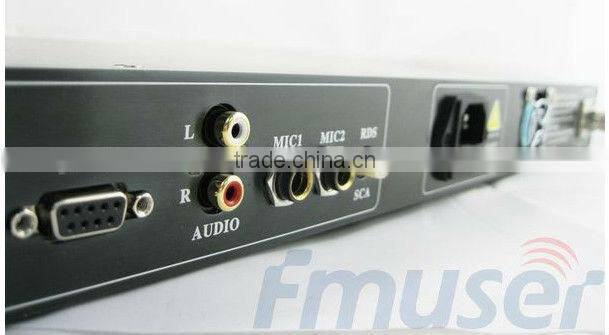

- Dual microphone inputs Reverb.
- External encoder input (for external SCA or RDS encoder).
-
RCA audio input,Through the BNC to connect the AUX to RDS SCA input.

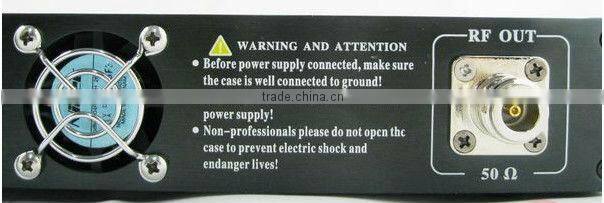

- VSWR protection, and can set the start value of the standing wave protection.
- Over-temperature protection, and can set the start value over temperature protection.
- Controlled fan forced cooling system to ensure stability while the machine can also increase the working life of the fan.
- Automatic volume control function. Input volume can be detected automatically adjusted, to ensure the best modulation.

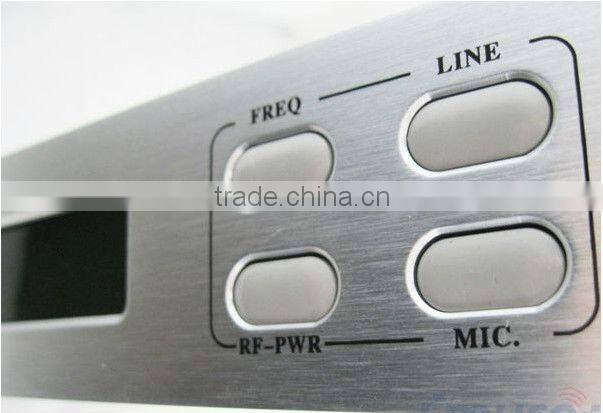

- Four commonly used function keys. Can be quickly set the parameters of the machine.
Specifications:
-----------------------------------------------------------------------------------------
>Power supply voltage: AC90V ~ 260V/50Hz/60Hz
>Working frequency: 87 ~ 108MHz (can be customized 76 ~ 92MHz)
>Frequency stabilization mode: PLL Frequency Synthesizer (PLL)
>Frequency Step: 0.1MHz
>Modulation: WFM
>RF power: 0 ~ 30W adjustable. Maximum 30W
>RF output impedance: 50Ω / Coaxial
>Stray radiation: <-60db
>Audio level: 15dbV
>Frequency response: 50 ~ 15KHz
>Signal to noise ratio: 70db
>Separation: 40db
>Ambient temperature: 0 ~ 45 °C
>Size:483 x 44 x 200mm 19inch 1U
>Cover Range:5Km—8Km
>Weight:3.5Kg
|
|
|
|

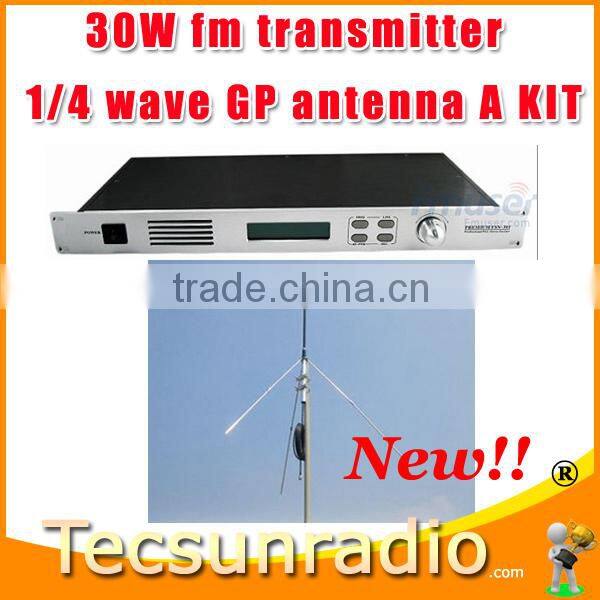

You can order one machine ,and also choose the kit machine.

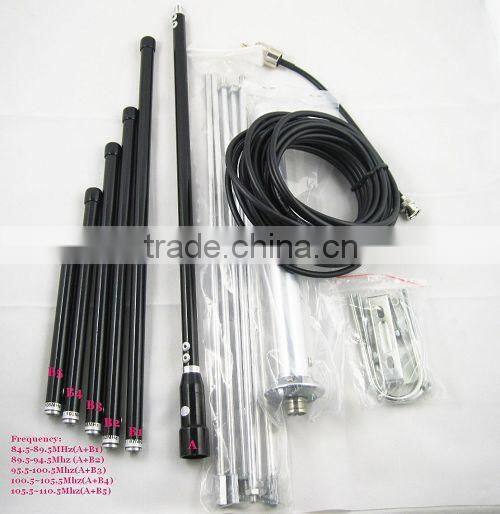

This is the only one 1/4 wave GP antenna in the world, which can easily adjust the accuracy frequency for fix your FM transmitter.It is also the design of anti-rain and lightness. It is very sure that this antenna is your best choice for your FM transmitter.
To know the transmitter:
-----------------------------------------------------------------------------------------------
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
digital tv transmitter
Below are the approximate range of different power FM Transmitters. ( The range is radius,The following distance is bassed on the antenna . )
- 30W TV Transmitter :5kM ~6KM
- 80W TV Ttransmitter : 6KM ~ 15KM
- 300~500W TV Transmitter : 10KM ~20KM
- 1KW FM Transmitter : 15KM ~ 25KM
- 3KW FM Transmitter : 30KM ~40KM
- TV-VHF-5KW:with the 4 Bay DV1 antenna:45KM
- TV-VHF-10KW:with the Slot antenna:80KM
- TV-UHF-5KW:with the Slot antenna:45KM
- TV-UHF-10KW:with the Slot antenna:80KM
- Digital TV 50~100W:10KM~15KM
- Digital TV 300~500W:25~30KM
- Digital TV 1KW:40KM

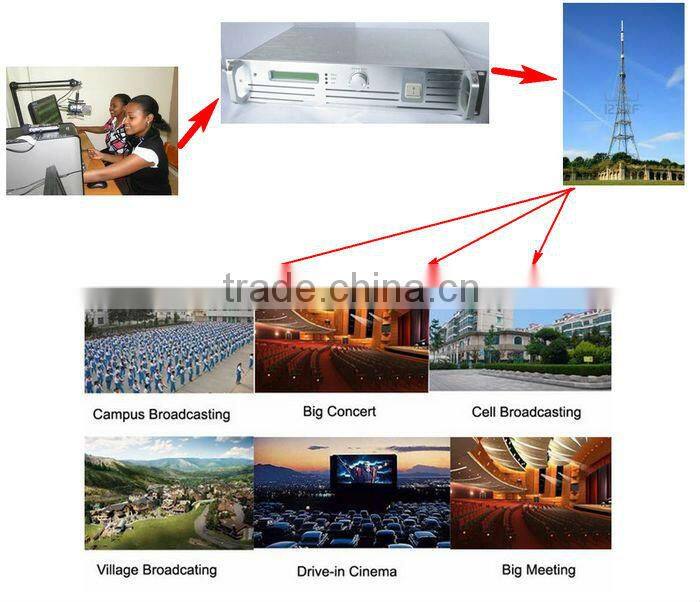

The Application of the transmitter:
--------------------------------------------------------------------------------------------------------
What can I do for you?
About us:
------------------------------------------------------------------------------------------
We specialized in production and sales of FM / TV Transmitter , FM / TV antenna , the FM / TV transmitter accessories. We have been exporting FM /TV transmitter for 6 years. We have clients all over the world, not only the resellers but also the consumers. With 6 years experience in this field ,we have professional team and excellent aftersales service. We dedicated in supplying the best quality products with competive prices and excellent customer sevice! If you have any question about it , No matter you buy or not, please feel free to tell us your questions,we are very willing to help you and solve your problems.
Our factory:

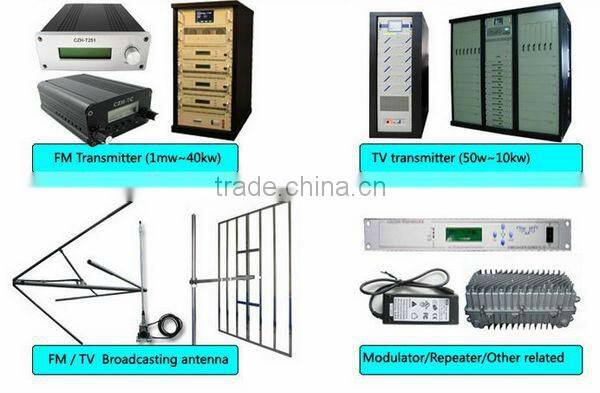

Products list:
-----------------------------------------------------------------------------------------
We have modernization of the factory . You are welcome to visit our factory when you come to China.
At present , there are already 1095 customers around the world visited our Guangzhou Tianhe office . If you come to China , you are welcome to visit us .
If you want to come to my office,please contact:
Erin Huang
Tel:+86-2-87597795 +86-2-87588285
Cellphone:+86 15800205544
Skype:Erin-huang2
At Fair
This is our participation in 2012 Global Sources Hong Kong Electronics Fair . Customers from all over the world finally have a chance to get together.
How to find our Guangzhou Office:
-----------------------------------------------------------------------------------------
You can search this numbers "Fmuser " in google map , then you can find our fmuser office .
FMUSER Guangzhou office is in Tianhe District which is thecenter of the Canton . Very near to the Canton Fair , guangzhou railway station, xiaobei road and dashatou , only need 10 minutes if take TAXI . Welcome friends around the world to visit and negotiate .
Our team:
------------------------------------------------------------------------------------------
