Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase /

Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase /

Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase / thumbnail-1
Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase / photo-1
US$ 10 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Yomin Transformer
Model Number:
RBK-1500 Transformer
Contact Supplier Request Quote Chat Now
Yueqing Yomin Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Yomin Transformer
Model Number RBK-1500 Transformer
Usage Power
Phase Single
Coil Structure Other, E type
Coil Number Autotransformer

Manufacturer RBK-1500 control transformer 1500VA

with terminal bolock  Model:RBK-1500

Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase /

Product Description

Toroidal Transformers offer many advantages over standard laminated power



transformers. Toroidals provide quiet, efficient operation with very low stray magnetic



fields. Their small size and weight support a package that is easy to design into any



application.



Advantages of Toroidal Transformer:

  • A toroidal transformer weighs about half as much as conventional transformer with the same capacity and heat rise. The main materials used in transformer are copper and steel, both of which are getting scarcer with cost increases as a consequence.
  • No impregnation is needed to keep the laminates quiet so this potential environmental hazard is avoided.
  • The toroidal transformer fits into a smaller space, which allows chassis plates and enclosures to be smaller with less material used.

Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase /

Technical parameters



  • Capacity.............................................................................1500VA
  • Frequency..........................................................................50/60Hz
  • Voltage Combination.........................................Pls.see selection form.

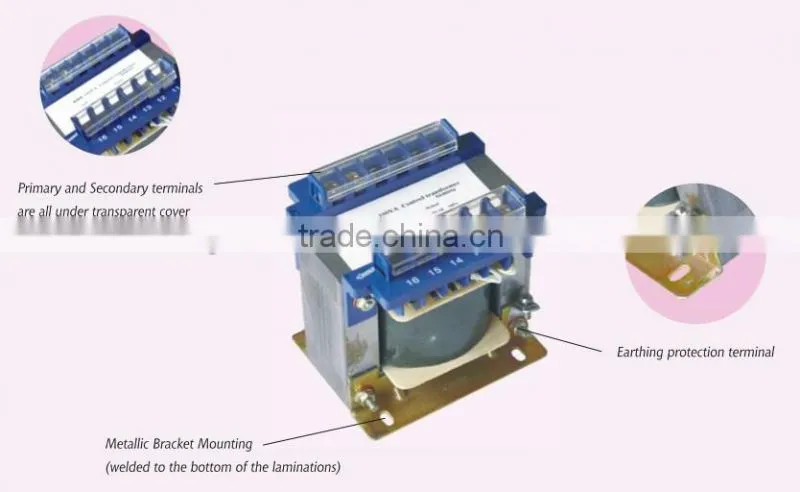

  • Winding Material...............................................................100% Copper
  • Terminal Block Connection..............................................Provided
  • Metallic Bracket Mounting................................................Provided
  • Standards.........................................VDE0550,IEC204-1,IEC61588,EC439
  • Sample Service..................................................................Pay to Provide
  • Quality Assurance.............................................................24 months
  • Item Condition....................................................................Brand-New



Item Capacity Voltage Combination Case Qty.
Model (VA) Primary(V)/Secondary(V) (Pcs)
RBK-50 50

440/220;240/24;220/24;

220-380/110-60-48-24,

380/220-110

 24
RBK-100 100 24
RBK-150 150 16
RBK-200 200 12
RBK-250 250 6
RBK-300 300 6
RBK-400 400 4
RBK-500 500 4
RBK-700 700 1
RBK-1000 1000 1
RBK-1500 1500 1
RBK-2000 2500 1



Dimension and wiring

 Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase /

Company Information

 Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase /Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase /Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase /Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase /Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase /

Manufacturer RBK-1500 Control Transformer 1500VA , With Terminal Block Transformer Single Phase /
