Specifications
tensile testing machine price1 Max.force:1000KN,2000KN
2 Test speed:0.5~500mm/min
3 Computer control
4.CE ASTM ISO

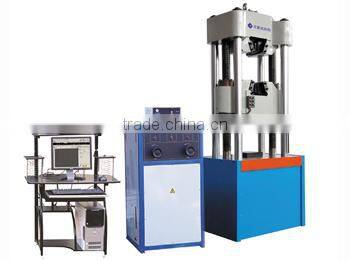

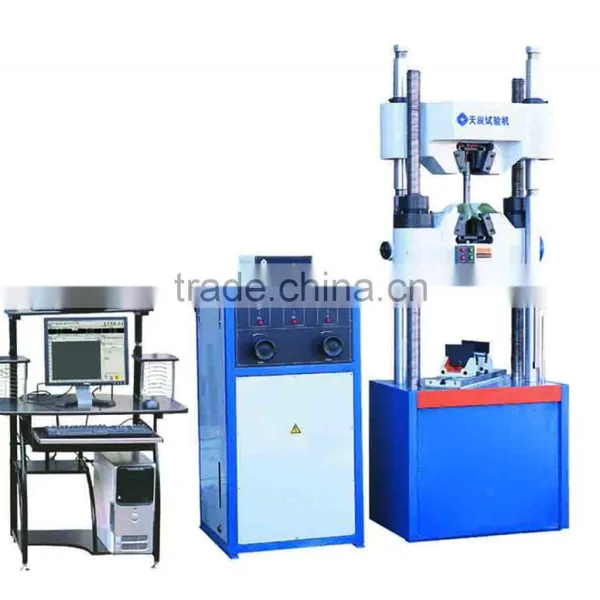

WAW-B 300KN 600KN 1000KN 2000KN Computer Electro Hydraulic Servo Material Universal Tensile Testing Machine Price
Introduction of hydraulic universal testing machine
The machine is mainly used for thetensile, compression, bending and shearing test of metal and non-metal. It is used by aviation, aerospace materials test, quality test, colleges and universities, mining industry, technical department and so on. The test operation and data processing is meeting to GB228-2002. It is also meeting to GB, ISO and many other test standards.
Parameters of universal testing machine
Model | WAW-100B | WAW-300B | WAW-600B | WAW-1000B | ||
Max test force(kN) | 100 | 300 | 600 | 1000 | ||
Test class | 1 class | |||||
Range of test force | 2%~10%FS | |||||
Relative error of indicating value | Better than ±1% | |||||
extensometer gauge length | 50mm | |||||
Deformation measurement range | 0-15mm | |||||
Deformation effective measurement range | 2%~100%FS | |||||
Deformation resolution | 1/300000 | |||||
Deformation indicating accuracy | Better than ±0.5% | |||||
Displacement measurement range | 0~250mm | |||||
Displacement value limit error | Better than ±1% | |||||
Displacement resolution(mm) | 0.01mm | |||||
Features
1) Supportstensile test, compression test, bending test and shearing test;
2) Supports self-defined testing parameters;
3) Supports open EXCEL report form; users can define the report format based on their own needs;
4) Has self-analysis function;
5) Supports management by level (administrator and tester);
6) Simple, reliable and flexible;
7) Meets national standard GB228-2002.
