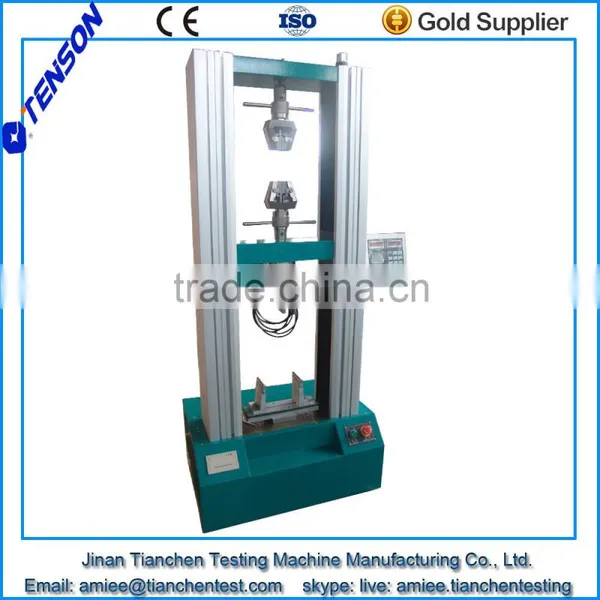

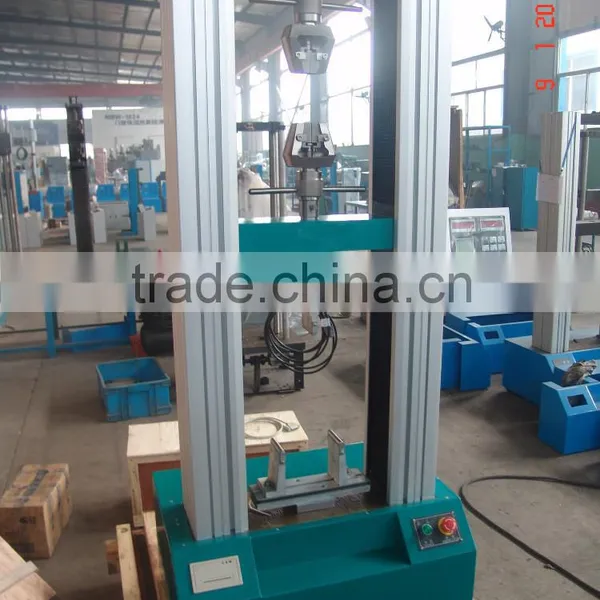

Wood-based Panel Universal Testing Machine 10kN Digital Display
Introduction

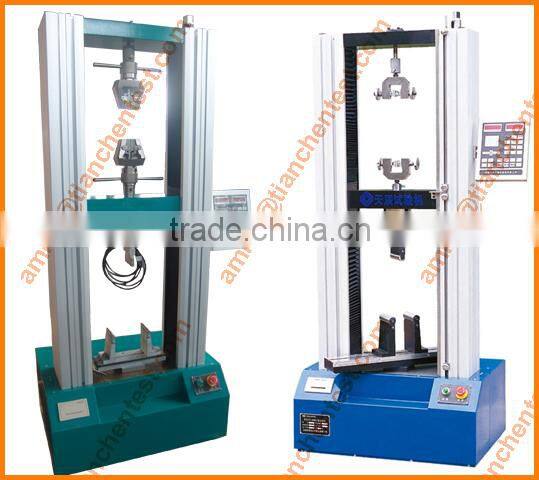

The MWS-10 wood-based universal testing machine is mainly applicable for wood-based panel production company and quality testing section, it can finish the mechanical proterty test of wood-based panels, such as plywood, flake board and firberboard, etc.
Product features

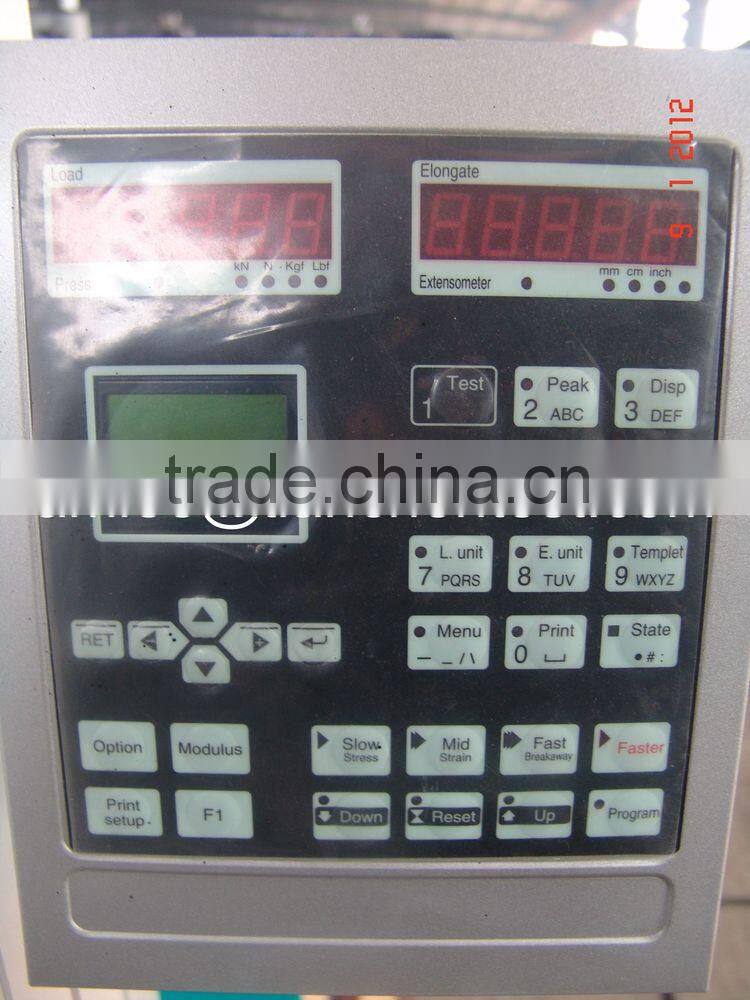

Adpot alternating servo system to control the position, measure and control system adopts flush type measure and control instrument and integrate measure, control, display, calculate and ave and it also can print the testing result.
Technical parameters
pecification Model |
MWS-10 |
|
|
Testing force measuring range (kN) |
0.2~10 |
|
Accuracy of testing force |
±1% |
|
Resolution of testing force |
1/300000, no subsection or four subsections |
|
|
Relative error of displacement |
±1% |
|
|
Resolution of crosshead displacement measuring (mm) |
≥0.001 |
|
Speed range of crosshead |
0.01mm/min~500mm/min |
|
Effective testing space (mm) |
800 |
|
Power supply |
AC 380V±10%, 50Hz, three phases |
|
Working environment |
Room temperature~30℃, relative humidity <80%; |
|
Main configuration |
Imported servo motor system |
|
Overall dimension (mm) |
740×500×1680 |
|
Weight (kg) |
450 |
|
Standard accessory
1. Japan Panasonic Servo motor and driver

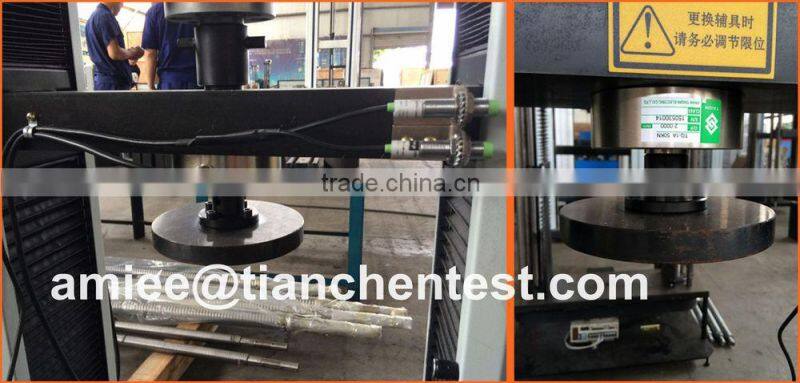

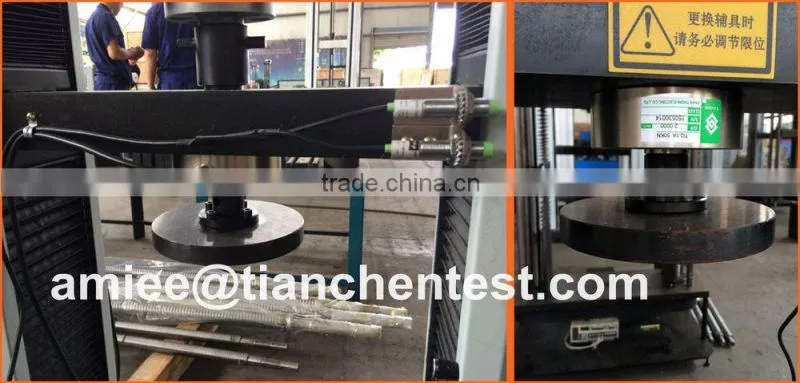

2. High Precision USA CELTRON Load cell

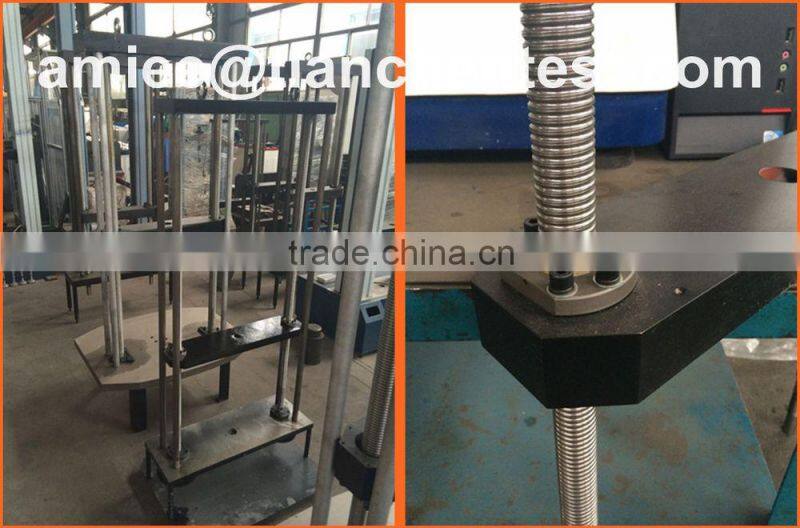

3. Leading screw: precision leading ball screw

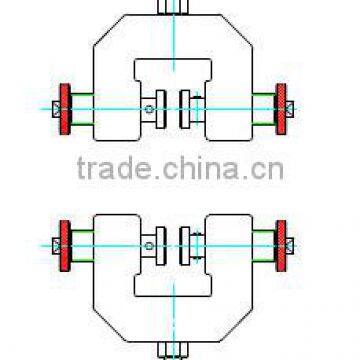

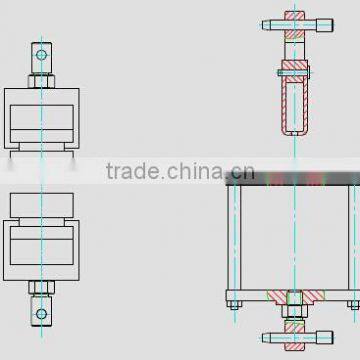

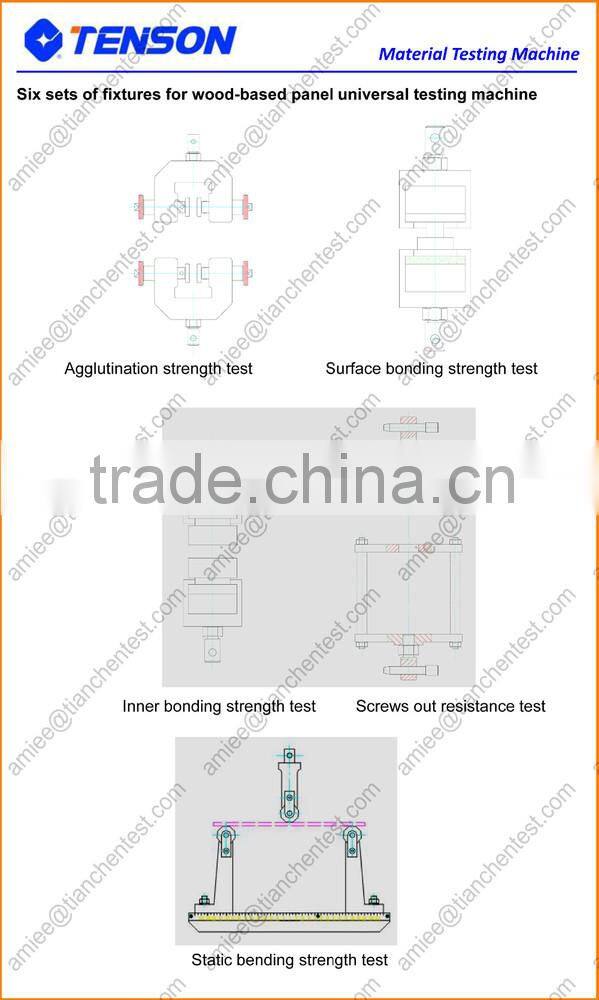

4. 6 sets grips for the wood-based panel
Appurtenaces for inner bonding strength test
Appurtenances for agglutination srength test
Appurtenances for static bending strength test
Appurtenances for elastic modulus test
Appurtenances for screw out resistance test
Appurtenances for surface bonding strengh test

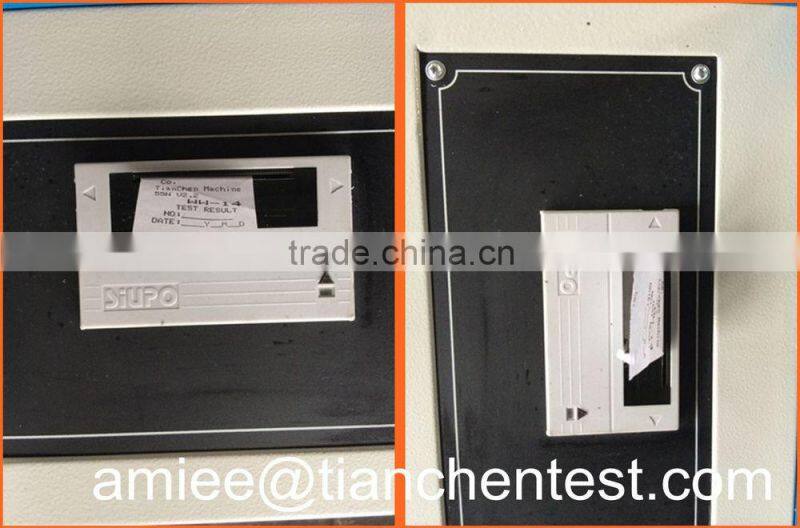

6.Micro pinter, print the testing result timely, more convenient

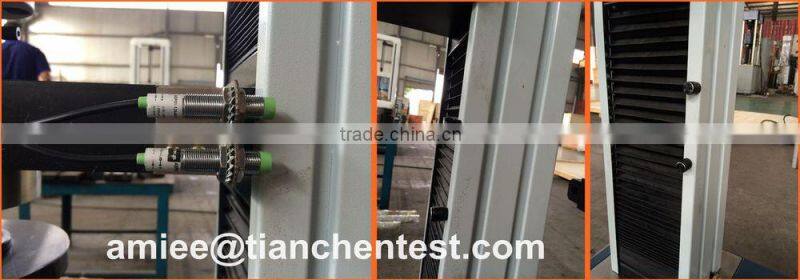

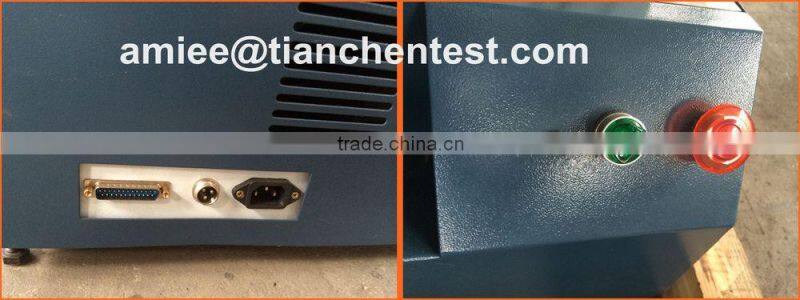

7. Limit swiches, emergency, ensure the machine safety
Suitable wood specimen
1.Are you factory or trading company?
Established in 1998, Jinan Tianchen Testing Machine Manufacturing Co., Ltd is a high technology enterprise devoting on researching, manufacturing, sales and service of Material Testing Machines in Jinan city, China. The registered capital is 10 million RMB.
2.After an order is placed, when to deliver?
Generally about 2-3 weeks, If have in stocks, we can arrange shipment within 3 days.
Please note, different specification/model, needs different delivery time.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate. Main clients has Bureau Veritas and Intertek. our products are widely recognized and trusted by users. All the products meet with: ISO, ASTM,AATCC, BS, EN, DIN, JIS and other requireable standards.
For more information and working videos, pls just feel free to contact us!
