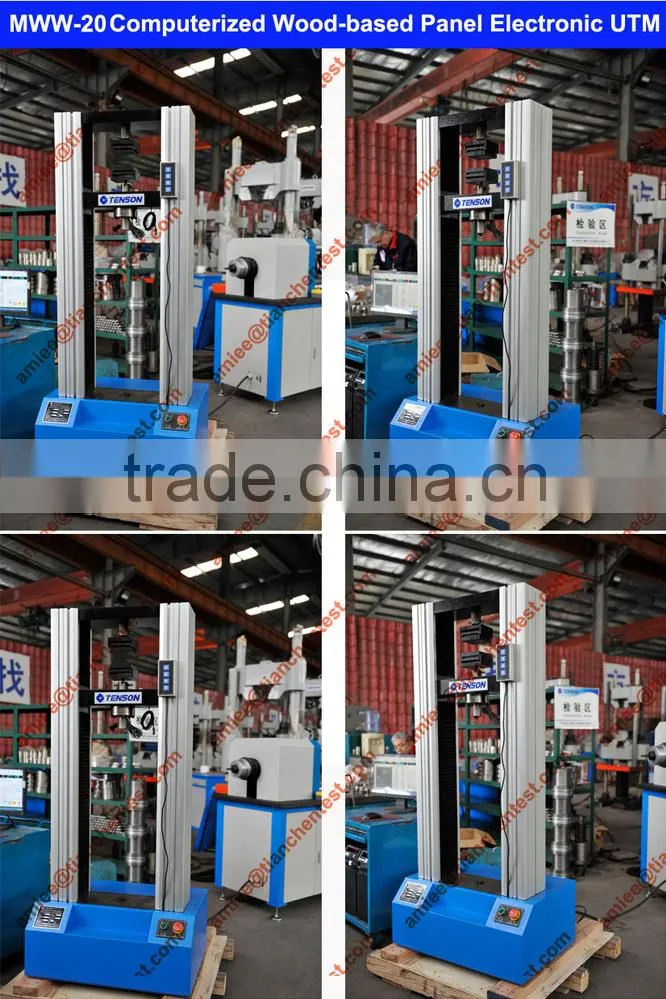

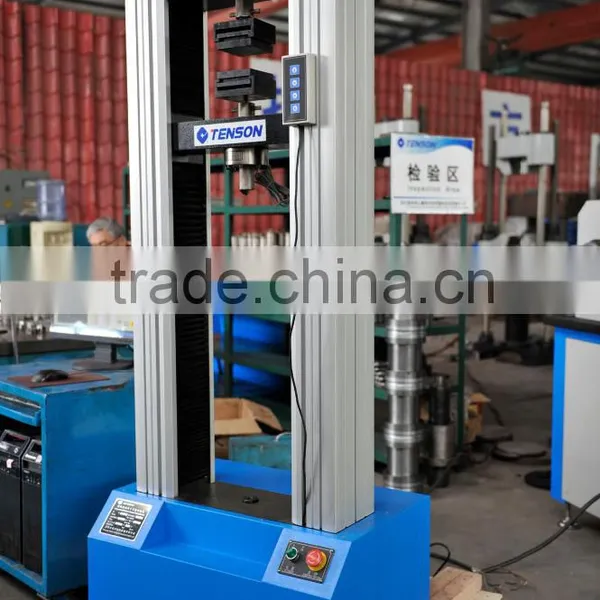

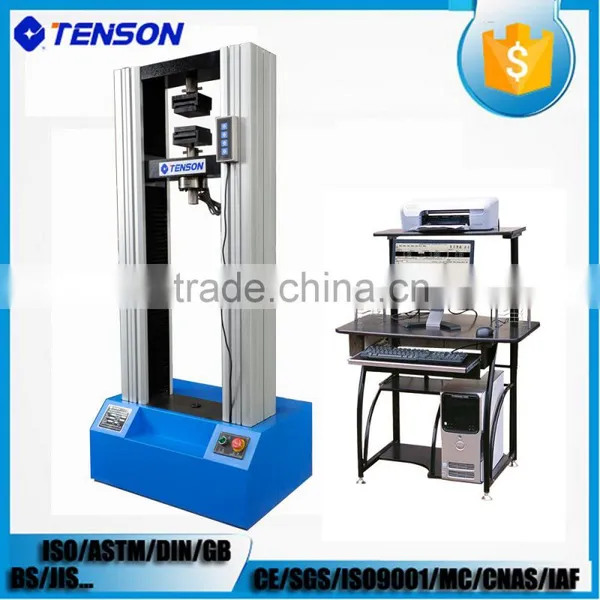

MWW-20 Computerized Wood-based Panel Electronic Universal Testing Machine 20kN
Introduction
This machine is mainly applicable for wood-based panels company and quality testing section. It can finish the mechanical property test of wood-based panels, such as plywood, flake board and fiberboard etc. Controlling software can automatically calculate modulus of elasticity, static bending strength, inner bond strength, surface bonding strength, agglutination strength and so on.
In standard, it conforms to GB/T17657-1999, EN310-1998, EN-319, EN-320, etc.
Product features
Adopt alternating servo system to control the position. Advanced CMOS chip integrated technology and
professionally designed data acquiring mu-factor and controlling software can make the machine stable,
reliable and convenient. Controlling software can automatically calculate modulus of elasticity, static
bending strength, inner bond strength, surface bonding strength, agglutination strength and so on.
Computer control system conforms to the requirements of GB about wood-based panel.
Technical parameters
Model: MWW-20
Max. testing force: 20kN
Accuracy: 0.5 grade
Measuring range of testing force: 0.2-100% FS
Testing force resolution: 1/300000 of max. testing force
Measuring of crossbeam: resolution higher than 0.001mm
Crossbeam speed range: 0.001-500mm/mim
Crossbeam relative error: +0.2%
Effective tensile space( without grips): 1000mm
Testing space width: 410mm
Voltage: AC 380V+10%, 50Hz
Working condition
1. Room temperature10℃~35℃,the relative humidity is≤ 80%;
2. Install it on level solid base, levelness is 0.2/1000;
3. Around it without vibration, corrosive medium, strong electric-magnetic field interference;
4. Fluctuation of power voltage can’t be more than ±10% of rated voltage;
5. The host testing machine should be connected to the ground stably.

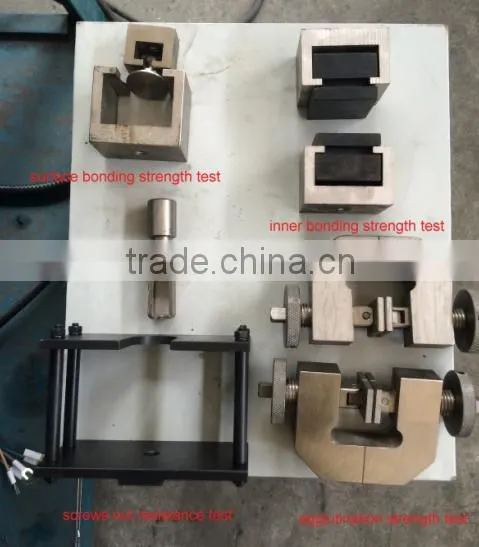

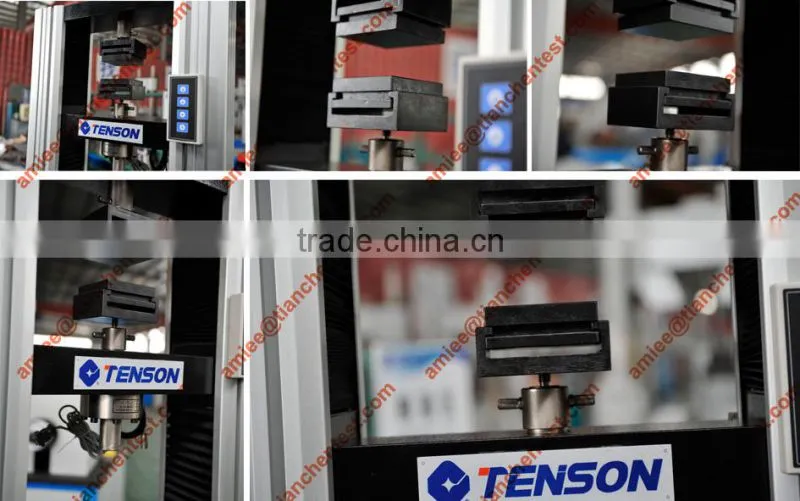

6 kinds of testing for wood-based panel

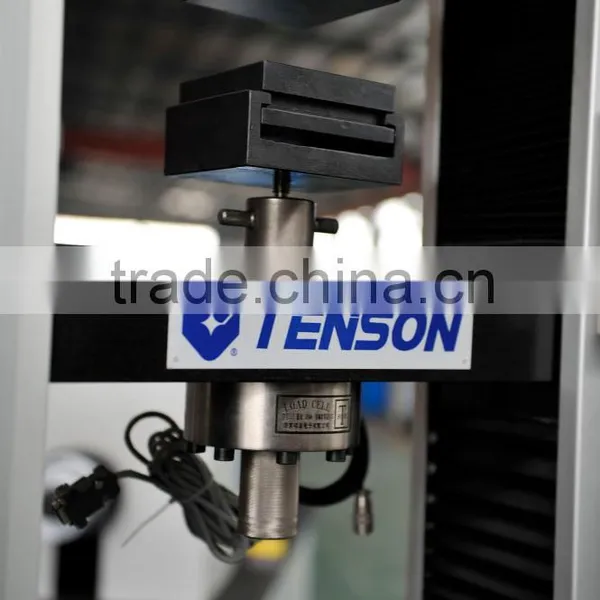

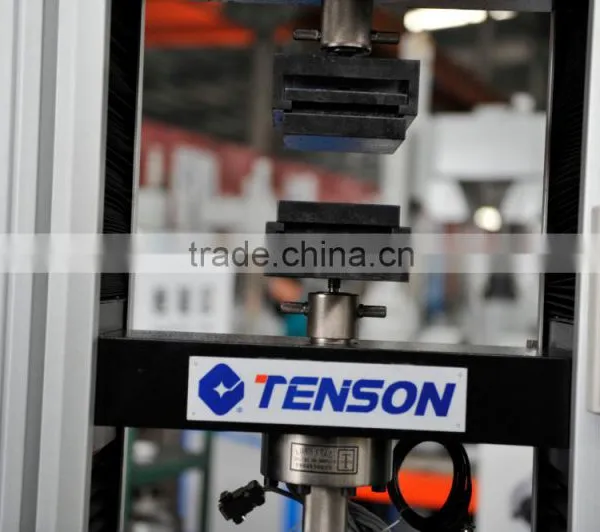

inner bonding strength test

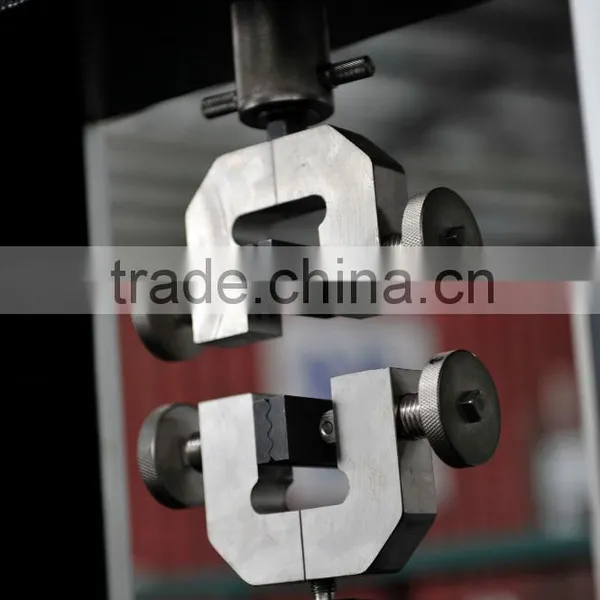

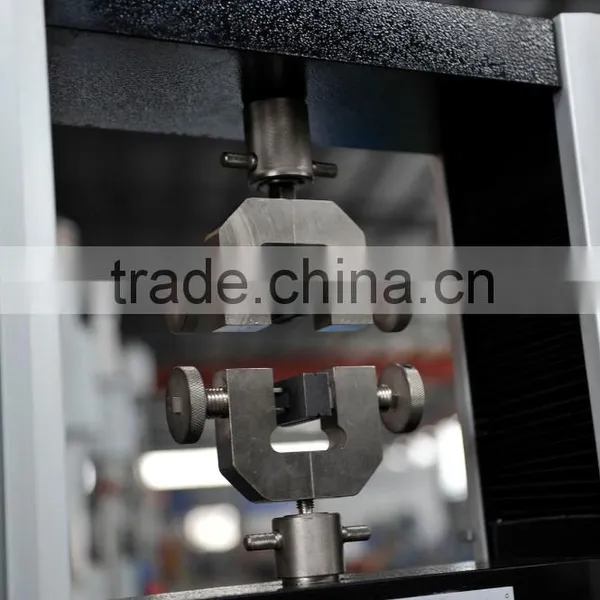

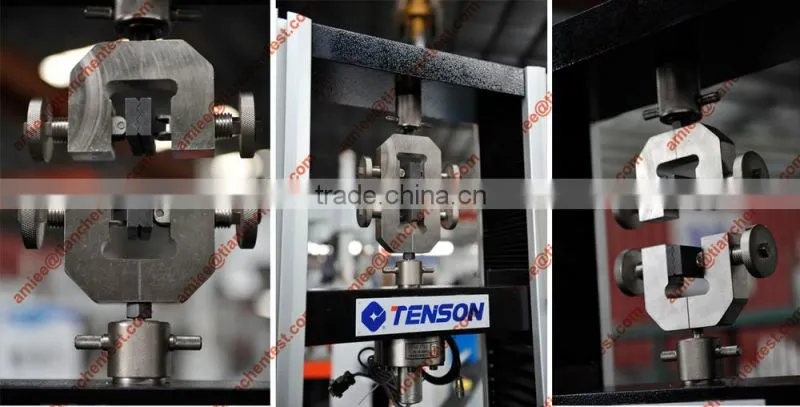

agglutination strength test

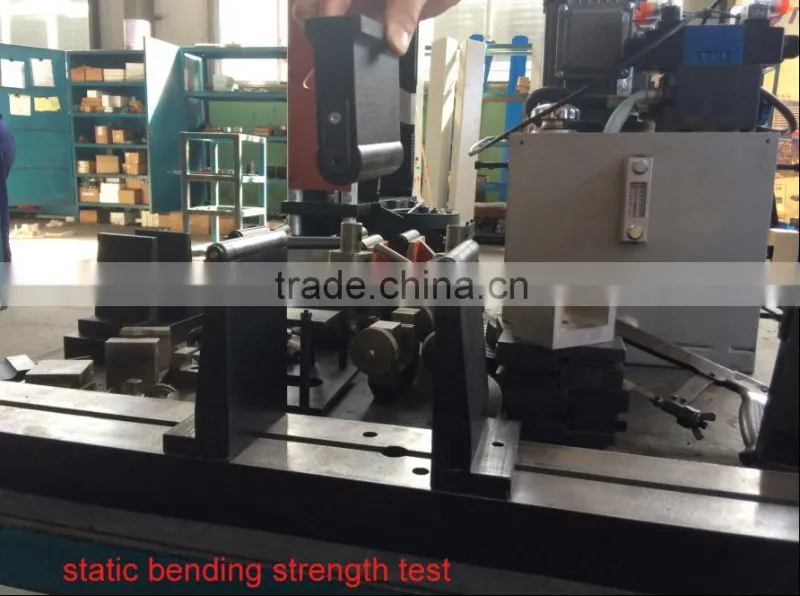

static bending strength test
elastic modulus test
screws out resistance test
surface bodning strenght test
TENSON Test universal testing software
Suitable wood specimen
1.Are you factory or trading company?
Established in 1998, Jinan Tianchen Testing Machine Manufacturing Co., Ltd is a high technology enterprise devoting on researching, manufacturing, sales and service of Material Testing Machines in Jinan city, China. The registered capital is 10 million RMB.
2.After an order is placed, when to deliver?
Generally about 2-3 weeks, If have in stocks, we can arrange shipment within 3 days.
Please note, different specification/model, needs different delivery time.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate. Main clients has Bureau Veritas and Intertek. our products are widely recognized and trusted by users. All the products meet with: ISO, ASTM,AATCC, BS, EN, DIN, JIS and other requireable standards.
For more information and working videos, pls just feel free to contact us!
