Specifications

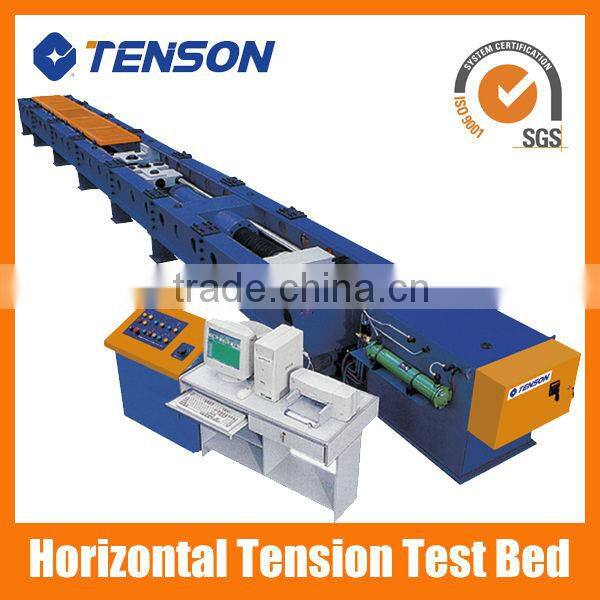

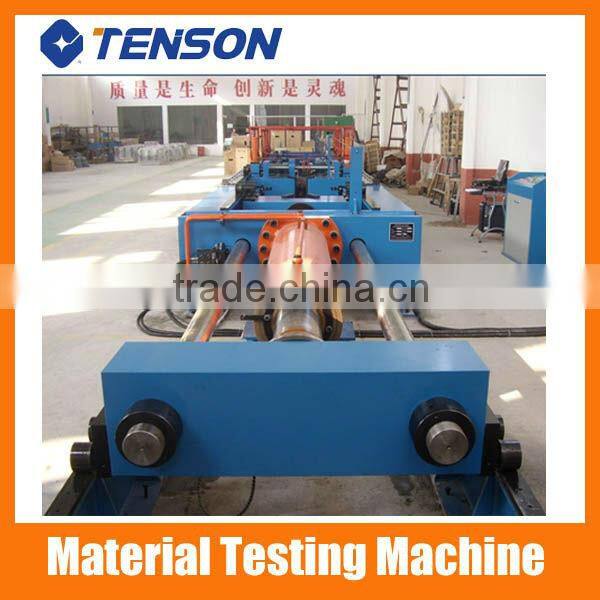

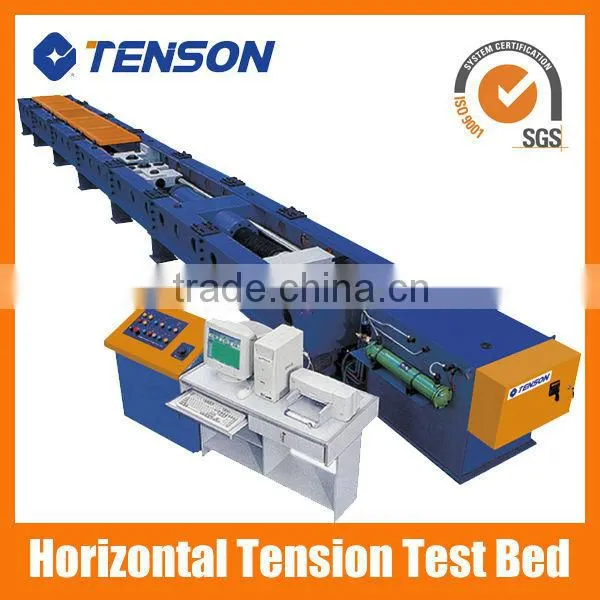

Horizontal Tensile Testing Machine for Wire Rope Chain Sling ConductorHorizontal Tensile Testing Machine
Horizontal Test Bench
1. Introduction:
The testing machine is mainly used to determine the tensile strength of electric cable, optic cable, steel wire rope, steel strand and other rope material. The testing machine adopts hydraulic cylinder to load, load cell to measure, computer to print and computer to display test data and other advanced technology.
2. Main Technical Specification:
2.1. Max test force (kN): 1500kN, 150Ton
2.2. Range of test force: 2%- 100%
2.3. Accuracy of test force: better than ±1% of indicating value
2.4. Max piston stroke: 1500mm
2.5. Range of displacement measurement: 0-1500mm
2.6. Accuracy of displacement measurement: better than ±0.5%FS of indicating value
2.7. Resolution of displacement: better than 0.05mm of indicating value
2.8. Moving speed of piston: tensile process 0-90mm/min
2.9. Max tensile test space: 12000mm
2.10. Min clamping space: 500mm
Adjustment method and adjustment scope of test space: bolt fixed, divided into 4 groups, totally 20 positioning hole (4 holes in a group with interval of 500mm from each other, classification adjustment of position)
2.11. Overall dimension (L x W x H):19900x1900x1455mm
2.12. Host machine weight: Appr.21000kg
2.13. Power: 10KW
