Specifications
1. WDW-T50 Universal Testing Machine2. Floor standing
3. 50kN, 5Ton
4. Tensile, compression, bending test
5. ISO7500-1

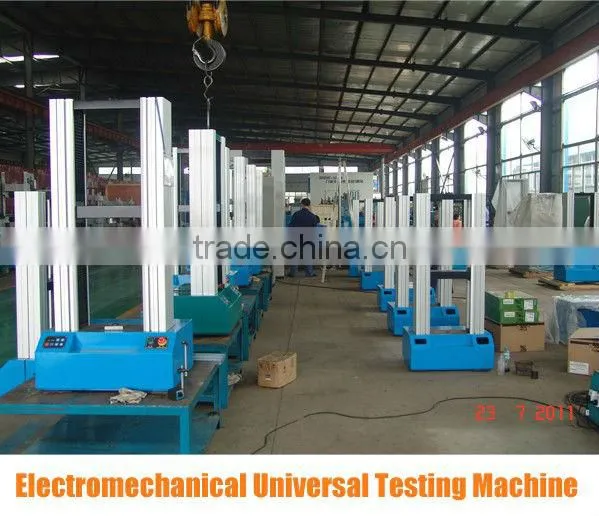

Computerized Electronic Universal Testing Machine 50kN
1. Uses
This testing machine is applicable for tensile, compression, bending, etc test of metal materials and non-metal materials, like steel, aluminum, rubber, plastic, alloy, electric wire and cable, waterproof roll, etc. It is designed according to ISO, ASTM, DIN, GB, etc standards. It is an essential testing machine for quality testing section, university and colleges, research institution and industrial and mining enterprise. The machine is calibrated as ASTM E4, ISO75001 international standard.
2. Main technical specifications
2.1 Load Capacity: 50kN
2.2 Load Accuracy: ≤1%;
2.3 Displacement accuracy: ≤±0.5%
2.4 Deformation accuracy: ≤±0.5%;
2.5 Speed range: 0.001-500 mm/min
2.6 Valid tensile testing space: 650mm;
2.7 Valid compression testing space: 1000mm;
2.8 Width of testing space: 560mm;
2.9 Clamping thickness of flat specimen: 0-14mm;
2.10 Clamping diameter of round specimen: φ4mm-φ22mm
2.11 Compression platen size: φ150mm
2.12 Bending fixture span: 30mm-500mm
2.13 Power supply: three phase, 380V±10%, 50Hz
2.14 Dimension and weight: 1020×800×2180mm, 1100kg
