Specifications
1. Model: WAW-6002. Load capacity: 600kN, 60Ton
3. Tensile, compression, bending, shearing
4. ISO7500-1, ASTM E4

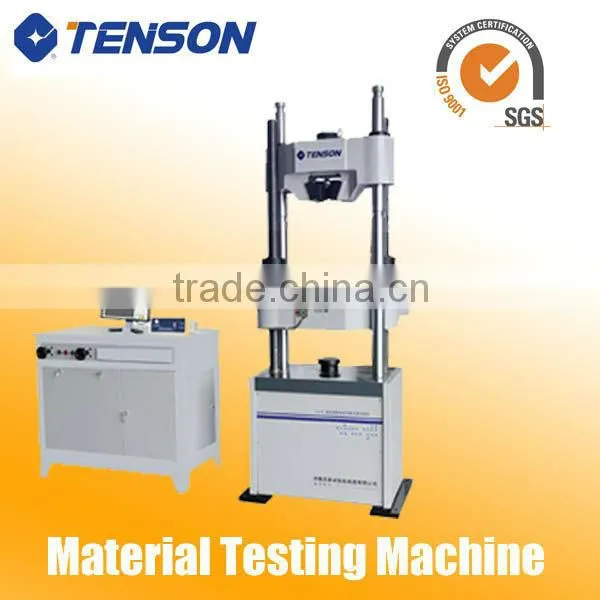

Computerized Hydraulic Servo Universal Testing Machine 600kN WAW-600
1. Introduction
This WAW Series Computerized Electro-h Computerized Hydraulic Servo Universal Testing Machine is fully computer controlled; the testing dates and testing curves can be displayed by computer and printed by printer.
It is widely used for tensile, compression, bending and shearing test for metal materials and also used for compression and bending test of non-metal materials, like cement and concrete materials. With special accessory, it can also be used for mechanical property test of fastener, steel wire rope and components .The machine is calibrated according to ISO 75001 and ASTM E4. It can do many different kinds of test according to different standards, ISO6892, ISO7438, ASTM A370, ASTM E8 and BS EN standards.
2. Main technical parameters
Parameter Model |
WAW-300 |
WAW-600 |
WAW-1000 |
WAW-2000B |
Max. testing force |
300kN |
600kN |
1000kN |
2000kN |
Accuracy |
±1% (±0.5%, optional) |
|||
Round specimen diameter range |
φ10-φ32mm |
φ13-φ40mm |
φ13-φ60mm |
Φ20-φ70mm |
Flat specimen thickness range |
0-15mm |
0-30mm |
0-40mm |
10-70mm |
Flat specimen width range |
70mm |
80mm |
120mm |
120mm |
Tensile space |
750mm |
800mm |
650mm |
900mm |
Compression space |
650mm |
700mm |
600mm |
860mm |
Upper and lower compress plates size |
φ130mm |
φ180mm |
210×210mm |
φ240mm |
Distance of bending by pass roll |
30-580mm |
30-580mm |
30-800mm |
30-580mm |
Max. piston stroke |
250mm |
250mm |
250mm |
250mm |
Power supply |
380/220V±10%, 50/60Hz, three phase |
|||
Work environment |
10-40°C, Relative humidity≤80% |
|||
Dimension of host machine |
905×580×2260mm |
905×580×2325mm |
1070×850×2530mm |
1500×910×3380mm |
Dimension of control cabinet |
600×600×1165mm |
|||
Weight |
2720kg |
3000kg |
4100kg |
9000kg |
For more detailed info, please feel free to contact me.
David Sun (Sales Manager)
