Specifications
Electromechanical Universal Testing Machine10kN-20kN
Tensile, compression, bending test

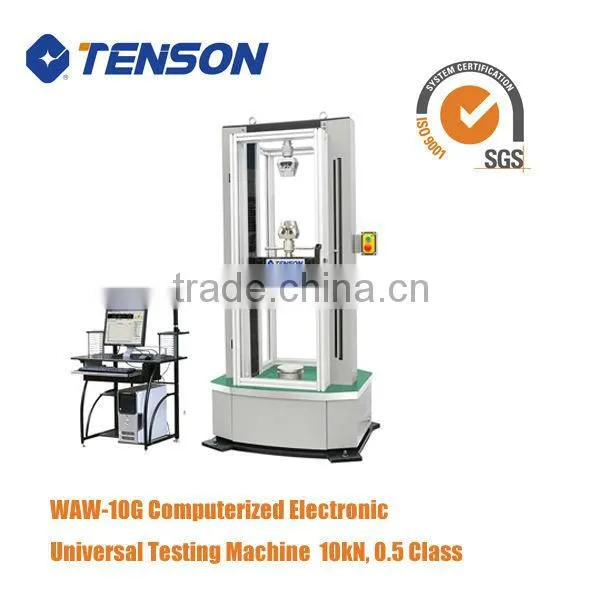

Electromechanical Universal Testing Machine 10kN-20kN
1. Introduction:
It is used for tensile, compression, bending, shearing, peeling, tearing, etc tests of metal and non-metal materials, like rubber, plastic, wire and cable, composite material, metal bar, panel, spring, etc. It confirms to GB, ISO, JIS, ASTM, etc standards, it also supports customized standard. It is an ideal testing machine for quality control enterprise, scientific research department, university and college, etc.
2. Main Technical Parameters
|
Model Specification |
WDW-10A |
WDW-20A |
WDW-10 |
WDW-20 |
|
|
Testing force measuring range (kN) |
0.1~10 |
0.2~20 |
0.1~10 |
0.2~20 |
|
Testing force accuracy |
±1% |
||||
Resolution of testing force |
1/300000, no subsection or five subsections |
||||
|
Relative error of displacement |
±0.5% |
||||
Resolution of crosshead displacement measuring |
≥0.001mm |
||||
Speed range of crosshead |
0.001mm/min~500mm/mim |
||||
Effective testing space (mm) |
800 |
||||
Power supply |
220V±10%, 50Hz |
380V±10%, 50Hz |
|||
Working environment |
Room temperature~30°C, relative humidity <80% |
||||
Main configuration |
Chinese AC Servo motor and governing system |
Imported AC Servo motor and governing system |
|||
Overall dimension (mm) |
740×500×1680 |
||||
Weight (kg) |
450 |
||||
