Home > Instruments & Meters > Test Instrument > Test Machine > WDW Series Computerized Electronic Universal Testing Machine (Desktop Type, 10kN, 20kN)

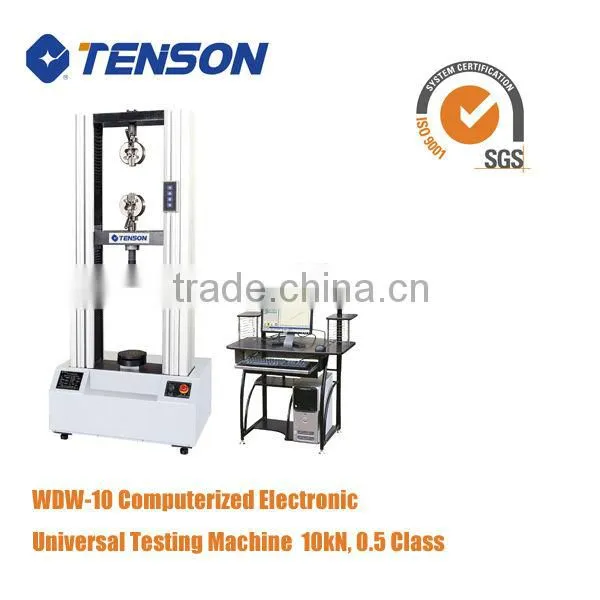

WDW Series Computerized Electronic Universal Testing Machine (Desktop Type, 10kN, 20kN)

Name: WDW Series Computerized Electronic Universal Testing Machine (Desktop Type, 10kN, 20kN)
Brand: TENSON
SKU: 114085327

WDW Series Computerized Electronic Universal Testing Machine (Desktop Type, 10kN, 20kN) thumbnail-1

WDW Series Computerized Electronic Universal Testing Machine (Desktop Type, 10kN, 20kN) photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

TENSON

Model Number:

WDW

Contact Supplier Request Quote Chat Now

Jinan Tianchen Testing Machine Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name TENSON

Model Number WDW

Power Electronic

Usage Tensile Testing Machine

Specifications

Pull tester is used for tensile, compression, bending, shearing, peeling, tearing, etc tests of metal and non-metal materials.

Pull tester

1. Introduction:

It is used for tensile, compression, bending, shearing, peeling, tearing, etc tests of metal and non-metal materials, like rubber, plastic, wire and cable, composite material, metal bar, panel, spring, etc. It confirms to GB, ISO, JIS, ASTM, etc standards, it also supports customized standard. It is an ideal testing machine for quality control enterprise, scientific research department, university and college, etc.

2. Main Technical Parameters

Model Specification	WDW-10A	WDW-20A		WDW-10	WDW-20
Testing force measuring range (kN)	0.1~10	0.2~20		0.1~10	0.2~20
Testing force accuracy	±1%
Resolution of testing force	1/300000, no subsection or five subsections
Relative error of displacement	±0.5%
Resolution of crosshead displacement measuring	≥0.001mm
Speed range of crosshead	0.001mm/min~500mm/mim
Effective testing space (mm)	800
Power supply	220V±10%, 50Hz			380V±10%, 50Hz
Working environment	Room temperature~30°C, relative humidity <80%
Main configuration	Chinese AC Servo motor and governing system		Imported AC Servo motor and governing system
Overall dimension (mm)	740×500×1680
Weight (kg)	450

3. Function and Features:

3.1. Main frame

3.1.1 It adopts most advanced and reliable floor type structure, imported Germany MOTEC full digital alternating servo motor and servo adjusting system and imported load cell. Whole digital measurement and control system can realize high precision, wide range measure and three closed loop control.

3.1.2 It adopts precision leading ball screw and reducing mechanism, transmit stable, low noise and zero clearance.

3.2. Measuring system

High precision 24 A/D date acquisition card (built in computer), it realizes full digital adjustment, high accurate enlarge and precision control.

Advanced chip integrated technology, 300000 code high acquisition card, which make the perfection measuring of load cell. It has advantage of high precision integration, stable, convenient to use.

The testing software can auto figure out routine dates, such as tensile strength, yield strength, fracture strength, modulus of elasticity, non-proportional extend strength RP0.2, etc. Auto figure out each point’s force, stress, displacement, deformation, etc.
