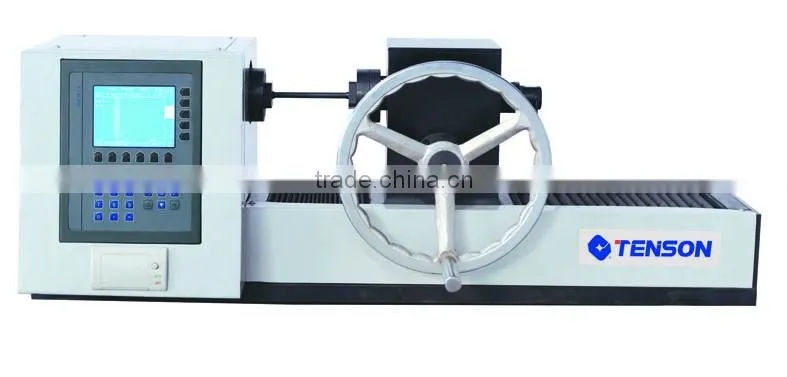

NJS Torsion Testing Machine
Introduction
The test machine is doing reverse test of materials by reversing deformation in two directions. It can choose to record the angle of 9 points freely during the test process and can inquiries and print the test results after the test.
Technical parameters
1,Maximum torque of test(Nm):100 ;
2,Minimum of reading torque(Nm): 0.05;
3,Maximum of reading torsion angle: 9999.9°;
4,Minimum of reading torsion angle: 0.1°;
5,Relative error of torque: ≤±1.0% ;
6,Repetitive relative error of torque: ≤±1.0%;
7,Diameter of sample(mm): 10;
8,Maximum test space of axis(mm): 260;
9,Voltage: 220V±10%
For more information, quotation, working videos, just feel free to contact us!
