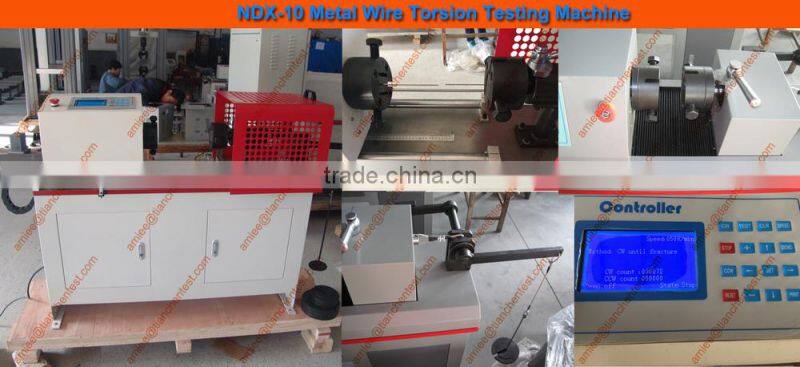

ISO ASTM EN DIN Standard Steel Wire Torsion Testing Machine NDX-10
Application

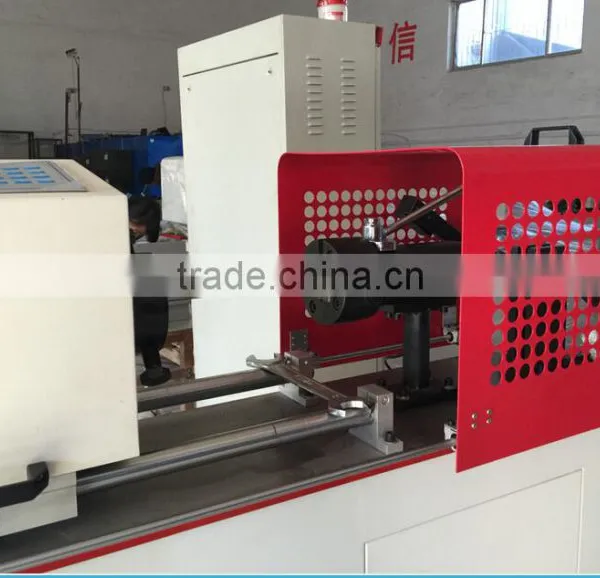

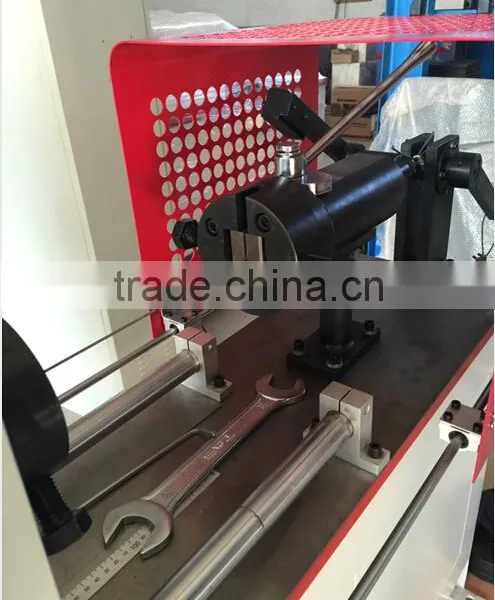

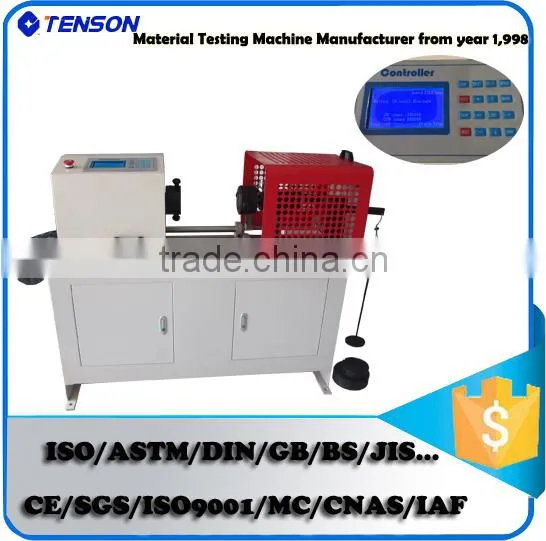

NDX-10 metal wire torsion testing machine is mainly used for determination of diameter φ1-φ10mm
metalwire in the one-way or two-way reverse the ability to withstand plastic deformation during the test can
show wire surface defects. Mainly applied scientific research departments, industrial and mining
enterprises and institutions used to determine the mechanical laboratory torsion properties of materials,
particularly suitable for production line testing and the use of flat wire cable unit purchase inspection.
torsion test machine with 2-3 kinds of rotation speed to choose from, such as 30,60,90,120,180,300/min,

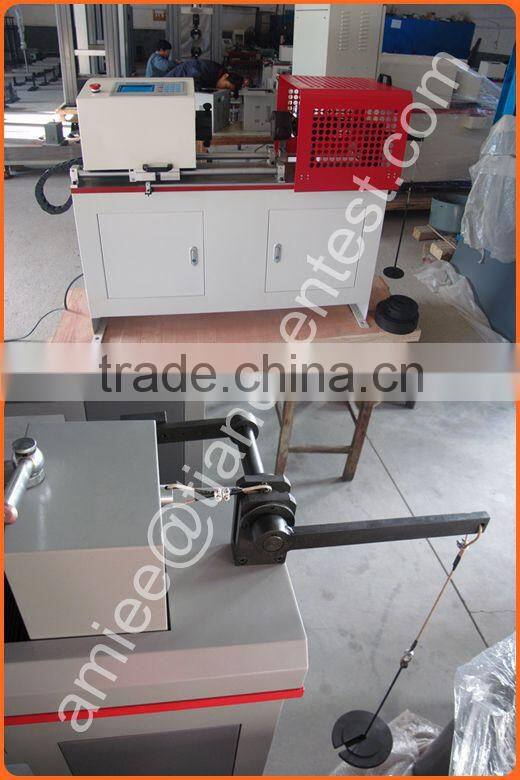

through the belt pulley adjustment; to clamp wire length 0~500mm; with a pulley driven weights and axial

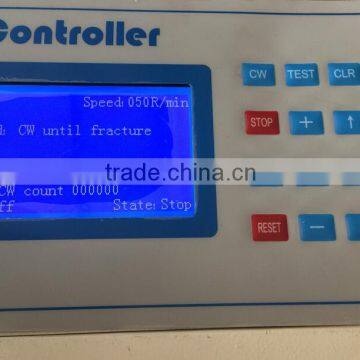

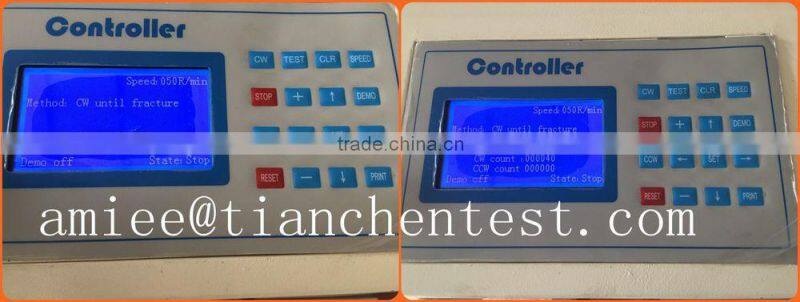

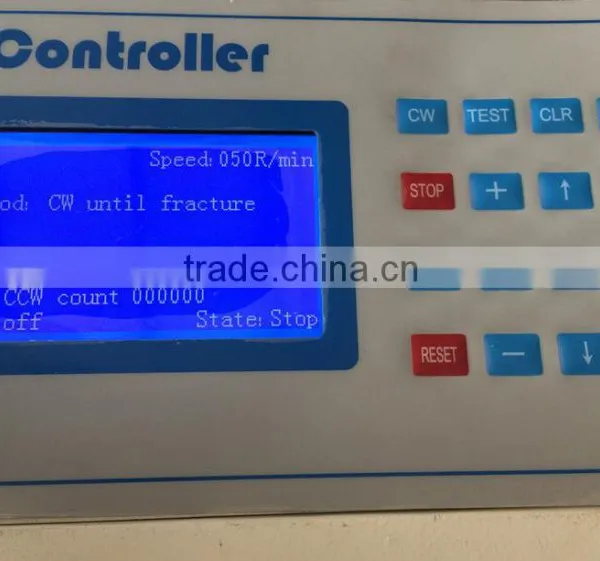

force, liquid crystal display test laps, after the test specimen and automatically latch ring value.
Suitable testing standard
ISO 7800:2003, Metallic Materials-Wire-Simple torsion test MOD
ISO 9649:1990, Metallic Materials-Wire-Reverse torsion test, MOD
Main technical specifications and operation conditions
1. Clamping metal diameter: Ø1mm~Ø10mm
2. Max counting volume: 99999.9
3. Min number of coil: 0.1
4. Two chuck concentricity <0.4mm
5. Mobile guide in the length range of flatness <0.2
6. The maximum distance between the two chuck : 500mm
7. Rotation speed: 0.5r/s,1r/s (International Standard)
8. Jaw hardness HRC55 ~ 65
9. Tolerance ± 0.01% weight
10. Testing machine work noise <70db
11. Resolution:0.1
12. Net size of machine: 1420*480*1250mm
Net weight of machine: 165kG
13. Environment and working conditions
a. Temperature of 10 °C ~ 35°C
B.Placed on Solid foundation place, the level of degree <0.2 ‰
c. No vibration environment
d. The surrounding non-corrosive media
e. Power three-phase four-wire 380 V ± 10% 50HZ

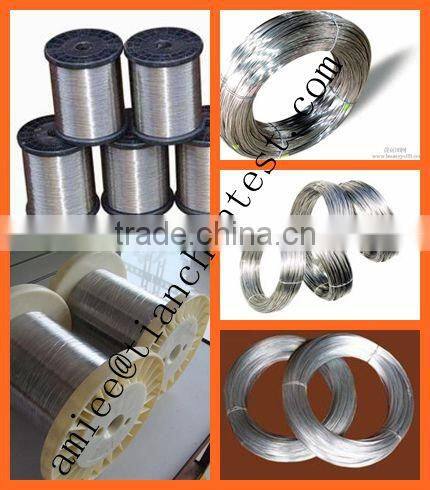

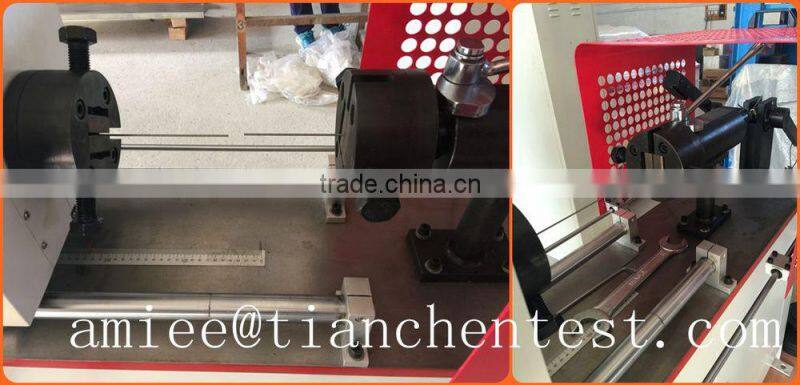

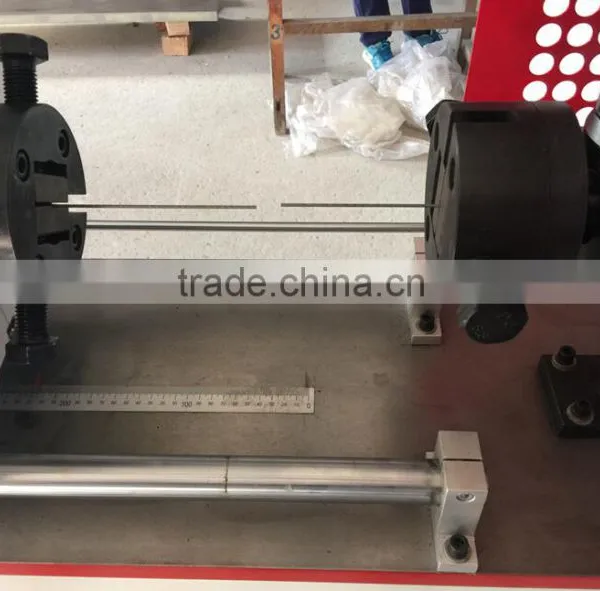

Reference metal wire torsion testing specimen
Shipping: Airplane/air express door to door/ EXW/FOB/CIF/DDU/DDP or according to your need
1.Are you factory or trading company?
Established in 1998, Jinan Tianchen Testing Machine Manufacturing Co., Ltd is a high technology enterprise devoting on researching, manufacturing, sales and service of Material Testing Machines in Jinan city, China. The registered capital is 10 million RMB.
2.After an order is placed, when to deliver?
Generally about 2-3 weeks, If have in stocks, we can arrange shipment within 3 days.
Please note, different specification/model, needs different delivery time.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate. Main clients has Bureau Veritas and Intertek. our products are widely recognized and trusted by users. All the products meet with: ISO, ASTM,AATCC, BS, EN, DIN, JIS and other requireable standards.
