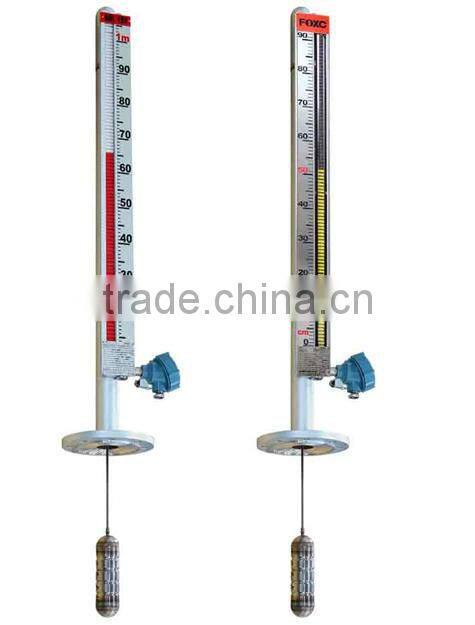

UHZ 517T32 Magnetic Level Gauge for Water Level Probe Top Mounted

Name: UHZ 517T32 Magnetic Level Gauge for Water Level Probe Top Mounted
Brand: FOXC
SKU: 114084063
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

FOXC

Model Number:

UHZ 517T32

Shanghai Xingshen Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name FOXC

Model Number UHZ 517T32

Specifications

1. measure for underground tanks and vessels without side openings.
2. operaton temperature range: -40~200 centigrade

Technique Parameter

Measure Range:	Max 4000 mm (center distance) or on request.
Nominal Pressure:	PN 2.5 MPa, 4.0 Mpa, Class 300LB ANSI
Working Pressure:	≤1.875Mpa 112.5 LB, ≤ 3 Mpa 225LB
Working Temperature	-40~200 °C ( 233.15~473.15K )
Medium Density	650~2000 kg/m³
Chamber(bypass tube)	Φ 63.5 X 3 mm
Process Connection	Factorty Standard: DN80 , DN100 HG20592-97; PN2.5, PN4.0 Mpa; Class 150LB, 300LB 3~4" ANSI Optional std: 3~4" ANSI B16.5; DN80--DN250 GB/T 9112-2000; JB/T 79.1-94 SH3406-1996 DIN 2635; DN80-DN250; DIN 2527; DN80-DN250 80A~250A JIS 20K FF RF; 3"~4" JPI 300LB RF
Chamber/Flange/ Wetted Material	304, 316, 316L, 316Ti, 321, 1.4301, 1.4435, 1.4401, 1.4571, 1.4783, 0Cr18Ni9, 1Cr18Ni9Ti, 00Cr17Ni14Mo2, 0Cr17Ni12Mo2, 0Cr18Ni2Mo2Ti
Magnetic Float	Its size depends on liquid density Material: Titanium, 316SS or 316L SS
Optional Items	Tri-magnet level switch Depth vacuum insulation jacket LB series level transmitter Transmitter(4~20mA, two/ three wire,HART) Magnetostrictive level transmitter
