Specifications
1. corrosion proof PPR lined2. for hydrochloric acid,alkaline liquids and many organic solvents
(especially active solvents)
It is for level measurements of hydrochloric acid, alkaline liquids and many organic solvents (especially active solvents), but it is not for measuring levels of concentrate nitric acid, chromium acid mixture, chloride solvent, aliphatic series and aromatic hydrogen etc.
Technique Parameter
Measure Range: |
300~6000mm (center distance) or on request. |
Nominal Pressure: |
PN1.0MPa |
Working Pressure: |
≤0.75MPa |
Working Temperature |
-20°C~80°C |
Medium Density |
600~2000kg/m³ |
Chamber(bypass tube) |
Φ76×3mm |
Process Connection |
Factory Standard: DN25 PN1.0MPa; Or on request |
Chamber/Flange/ Wetted Material |
Chamber:304SS Flange:304ss CS Wetted material: PPR |

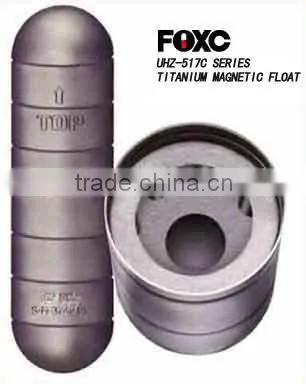

Magnetic Float |
Its size depends on liquid density Material: PPR
|
Optional Items |
1. Tri-magnet level switch 2. Drain valves(PPR ball valve) 3. Level Transmitter 4. Magnetostrictive level transmitter |
