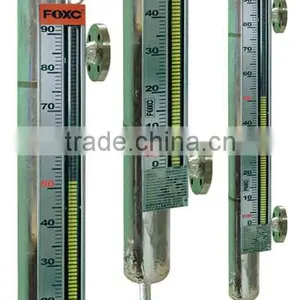

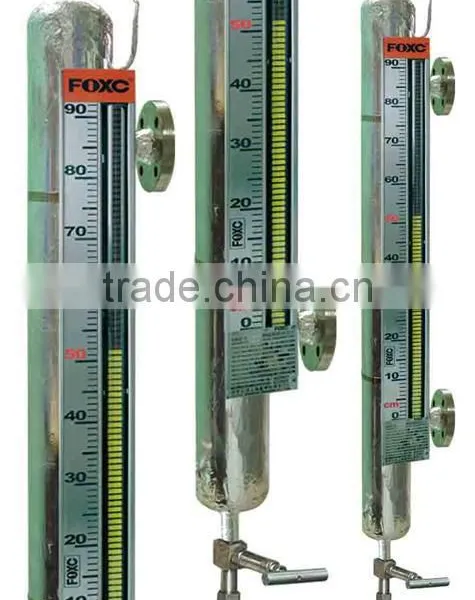

UHZ 517C13 Water Tank Level Gauge for Low Temperature Frost Proof - 40~+100 Centigrade 300lb

Name: UHZ 517C13 Water Tank Level Gauge for Low Temperature Frost Proof - 40~+100 Centigrade 300lb
Brand: FOXC
SKU: 114083689

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

FOXC

Model Number:

UHZ 517C13

Shanghai Xingshen Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name FOXC

Model Number UHZ 517C13

Specifications

1. low temperature -40 centigrade
2. with vacuum jacket
3. visual display,easy reading and wide range
4. transmitter optional

Technique Parameter

Measure Range:	150~8000mm (center distance) or on request.
Nominal Pressure:	PN5.0 MPa Class 300LB ANSI
Working Pressure:	≤3.75Mpa 225LB
Working Temperature	UHZ517C13: -40°C ~100°C (223.15~373.15K) UHZ517C13A: -196°C ~100°C (77.15~373.15K)
Medium Density	500~2000kg/m³
Chamber(bypass tube)	Φ63×4mm
Process Connection	Factory Standard: DN25 PN5.0MPa HG20592-97; 300LB 1" ANSI B16.5; Optional std: 1/2"~ 2" ANSI B16.5; DN10-DN50 GB/T 9112-2000; JB/T 79.1-94 SH3406-1996 DIN 2635; DN10-DN50; DIN 2527; DN10-DN50 10A~50A JIS 20K FF RF; 1/2"~2" JPI 300LB RF
Chamber/Flange/ Wetted Material	304, 316, 316L, 316Ti, 321, 1.4301, 1.4435, 1.4401, 1.4571, 1.4783, 0Cr18Ni9, 1Cr18Ni9Ti, 00Cr17Ni14Mo2, 0Cr17Ni12Mo2, 0Cr18Ni2Mo2Ti

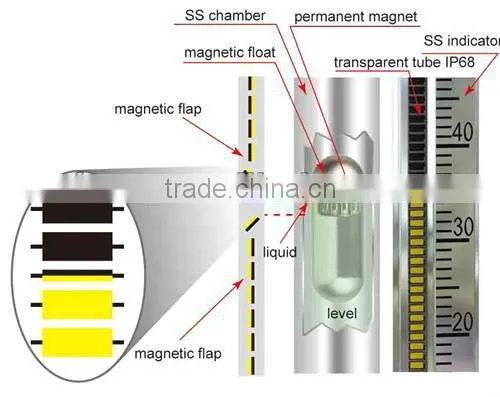

Magnetic Float	Its size depends on liquid density Material: Titanium
Optional Items	1. Tri-magnet level switch 2. Quad-magnet level switch 3. Heating Jacket 4. Depth Vacuum heating jacket 5. Coil type heating jacket 6. Drain/Vent valves 7. Transmitter(4~20mA, two/ three wire,HART) 8. Magnetostrictive level transmitter

UHZ-517C13		With blind flange, no drain valve
	L	Bottom drain valve
		G	Tri-magnet driven level switch
		GH	High temperature four-magnet driven level switch
				Control points(quantity of level switches)
				R	Ltransmitter two wire 4~20mA output
				R1	LB transmitter HART two-wire 4~20mA output
				R2	AT200 Magnetostrictive transmitter two-wire 4~20mA output HART
				R3	AT201 Magnetostrictive transmitter three-wire 4~20mA output HART
				R4	AT202 High temperature magnetostrictive transmitter output HART
				R5	AT203 High temperature transmitter three-wire output HART
					D	ExdIIBT1~T6 Explosion proof
					E	ExiaIICT1~T6 Intrinsically safe
					EF	Intrinsically safe with barrier			W	Wide rollers board
							Removable heating jacket		J2	Sleeve type heating jacket
						J3	Coil type heat tracing device		J4	Depth vacuum jacket
						J5	Depth vacuum insulation& compound heating jacket
								Installation height(N/A for side-side mounted level gauge
									(M)Measuring range,mm
										Medium density,kg/m³
											Nominal pressure
