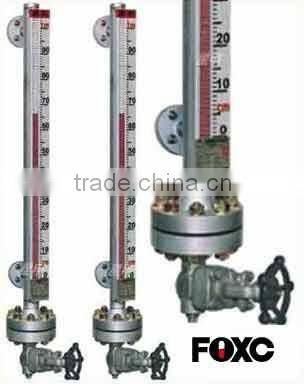

UHZ 517C12B Magnetic Float Level Gauge for Fuel Level Measuring Insturment Max 450 Centigrade 400lb

Measure Range:

150~8000mm (center distance) or on request.

Nominal Pressure:

Working Pressure:

≤4.8Mpa 300LB

Working Temperature

450°C 723.15K

Medium Density

500~2000kg/m³

Chamber(bypass tube)

Φ63.5×3mm

Process Connection

Factorty Standard: DN25 PN 6.4MPa  HG20592-97;400LB 1" ANSI B16.5;

Optional std:

1/2"~ 4" ANSI B16.5;

DN10-DN100 GB/T 9112-2000;

JB/T 79.1-94 SH3406-1996

DIN 2635;DN10-DN100;

DIN 2527;DN10-DN100

10A~100A JIS 30K FF RF;

1/2"~4" JPI 400LB RF

Chamber/Flange/ Wetted Material

304, 316, 316L, 316Ti, 321, 1.4301, 1.4435, 1.4401,

1.4571, 1.4783, 0Cr18Ni9, 1Cr18Ni9Ti, 00Cr17Ni14Mo2,

0Cr17Ni12Mo2, 0Cr18Ni2Mo2Ti

Magnetic Float

Its size depends on liquid density

Material: Titanium, 316SS or 316L SS

Optional Items

1. Tri-magnet level switch
2. Quad-magnet level switch
3. Heating Jacket
4. Depth Vacuum heating jacket
5. Coil type heating jacket
6. Drain/Vent valves
7. Transmitter(4~20mA, two/ three wire,HART)
8. Magnetostrictive level transmitter
