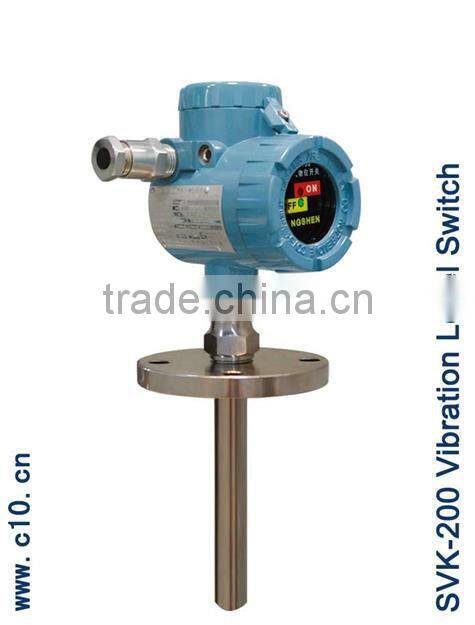

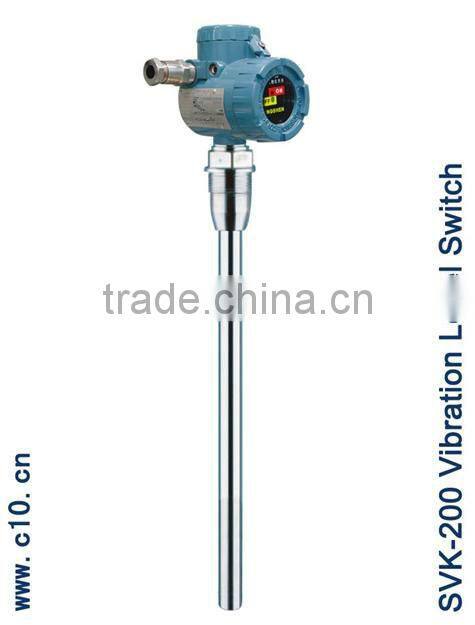

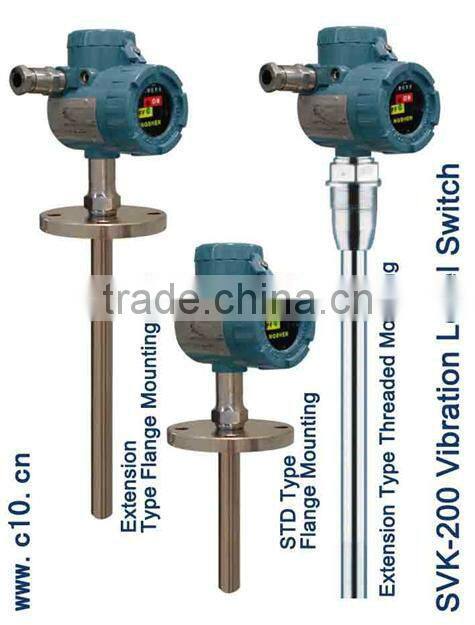

SVK 200 Relay Water Level Switch for Vibration Level Switch

Specifications

SVK-200 vibrating rod is activated to vibrate via the piezo drive.  If the vibrating rod is immersed.  the amplitude will be damped.  The electronic element detects this damping and converts it into a switching command.  Due to the rod design, it is almost impossible for material to build up or get wedged in.

Applications:

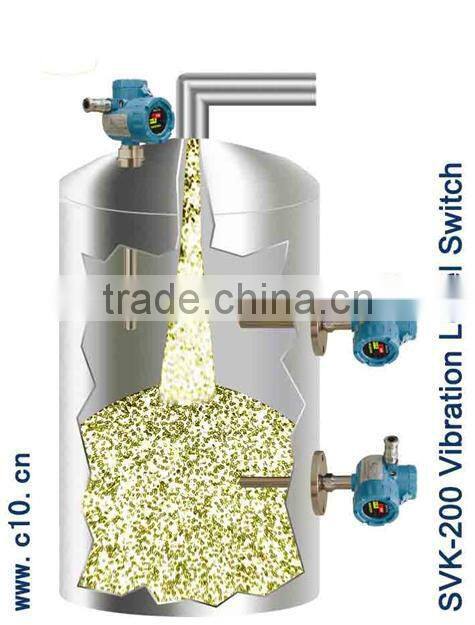

Vibratng level switch is widely used to indicate and control material level in the field of chemical,  foodstuff and petrochemical industry etc.

Powered milk                                   wheat flour                                                   Fibrous powder

Frozen praties                                  Casting sand                                              Silicon powder

Legume                                             Spice                                                            Plastic pellet

Sugar                                                 Ainimal foodstuff                                        Pebbles

Coffee bean                                      Saccharoid                                                 Wooden meal

Salt                                                     Peanut                                                         Tobacco

Soda                                                 Coal dust                                                     Whiting

Features

1.  No calibration needed, user-friendly as well as sturdy and durable design.

2.  Shed off build-up material. No fear about accumulated material on sensor.

3.  High or low fail safe modes offer safety and reliability.

4. According to different density, its adjustable sensitivity wheel button can be set even for finest material.
