Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > 333333333333333333

333333333333333333

Name: 333333333333333333
Brand: FMUSER
SKU: 114083585

US$ 650 - 759 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

FMUSER

Model Number:

FUTV4652H

Contact Supplier Request Quote Chat Now

Guangzhou Fmuser Information Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name FMUSER

Model Number FUTV4652H

Please contact the following staff for instant help with product user manual, datasheet and updated wholesale price.

Email: hch(at)

Skype: erin-huang2

Wechat: +86 15800205544

Whatsapp: +86 15800205544

Tel:+86 15800205544 (Monday~Friday: 9:00 ~ 18:00 (+8 China ) )

Working Time

09:00--18:00 Beijing
17:00--2:00 San Francisco

19:00--4:00 New York

21:00--6:00 Paris

04:00--13:00 Moscow

12:00--21:00 Sydney

02:00--11:00am Congo ( Africa )

Quality Control

OEM Order Welcomed

Production Intruduction

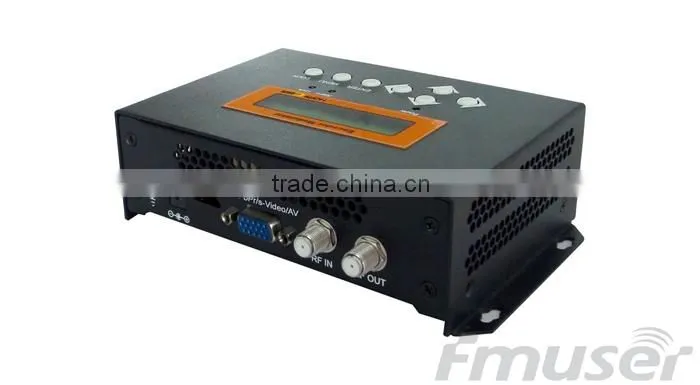

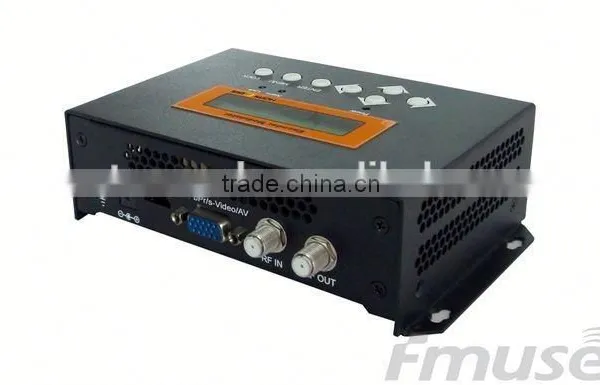

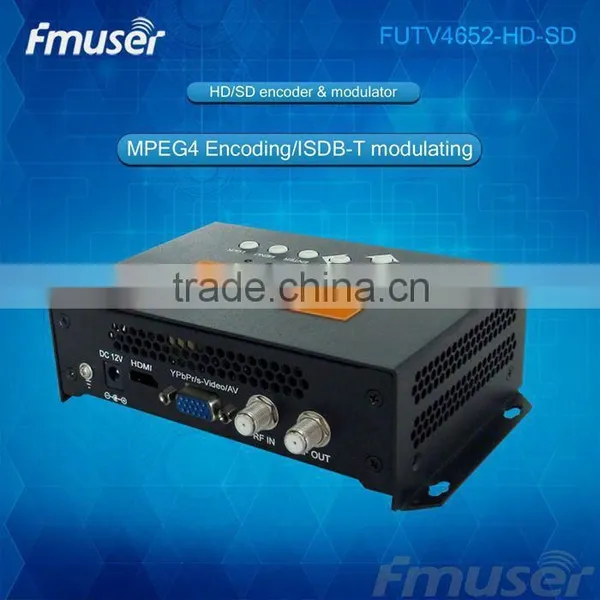

FUTV4652H ISDB-T MPEG-4 AVC/H.264 HD/SD Encoder Modulator (Tuner,HDMI,YPbPr/CVBS/S-Video in; RF out) for Home Use

R: V20150605-18-24 Data sheet User Manual

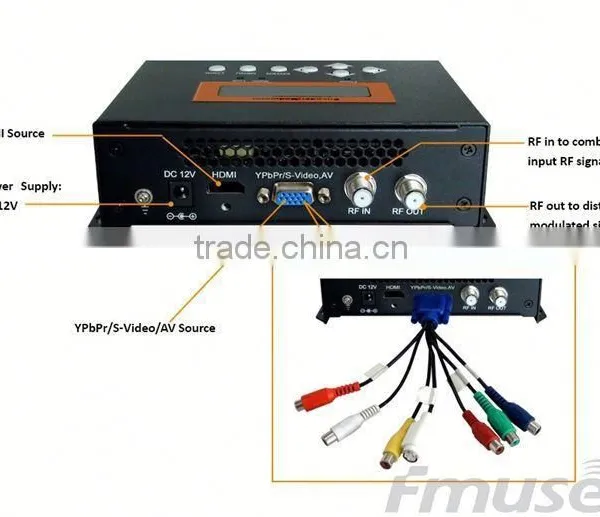

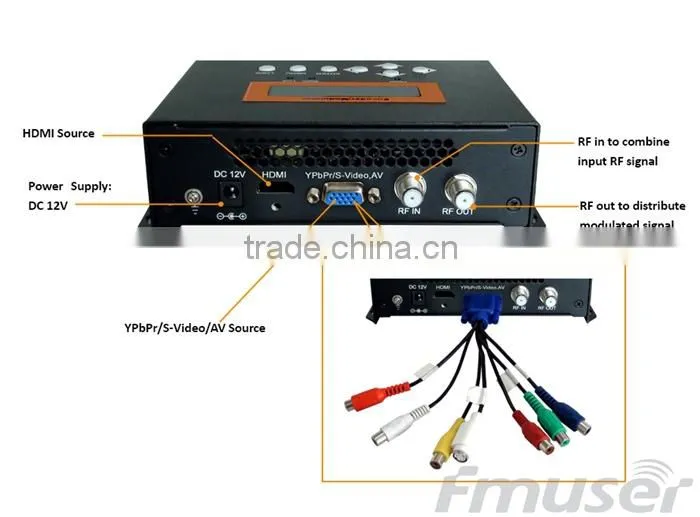

Input:Tuner, CVBS, YPbPr, S-Video, HDMI Output:ISDB-T

Overview

FUTV4652H HD/SD encoder & modulator is FMUSER’s consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.

It is an all-in-one device integrating MPEG-4 encoding and ISDB-T modulating to convert audio/video signals to digital RF.

The signal source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. its output signal is to be received by ISDB-T standard TVs or STBs etc.

Easy Operation and Upgrade

Small Size

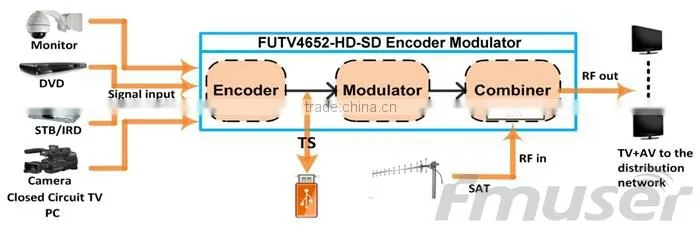

Principle Chart

Technical Specifications

Encoding Section
HDMI
Video	Encoding	MPEG-4 AVC/H.264
	Interface	HDMI*1
	Resolution	19201080_60P,19201080_50P; 19201080_60i, 19201080_50i; 1280720_60p, 1280720_50P
	Bit rate	0.500~19.500 Mbps
Audio	Encoding	MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC
	Sample rate	48KHz
	Bit rate	64, 96,128, 192, 256, 320, 384kbps
YPbPr/CVBS/S-Video (with an adapter to VGA)
Video	Encoding	MPEG-4 AVC/H.264
	Interface	CVBS 1, YPbPr1, S-Video*1
	Resolution	CVBS & S-Video: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 19201080_60i, 19201080_50i; 1280720_60p, 1280720_50P
	Bit rate	0.500~19.500 Mbps
Audio	Encoding	MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC
	Interface	1*Stereo /2 mono
	Sample rate	48KHz
	Bit rate	64, 96,128, 192, 256, 320, 384kbps

Modulator Section
ISDB-T
Standard	ARIB STD-B31
Bandwidth	6M
Constellation	DQPSK,QPSK, 16QAM, 64QAM
Guard Interval	1/32, 1/16, 1/8, 1/4
Transmission Mode	2K, 4K, 8K
MER	>=42dB
RF frequency	30~960MHz, 1KHz step
RF output level	-16~ -36 dBm (71~91dbµV), 0.1db step

System
Management	Local control: LCD + control buttons
Language	English
LCN Insertion	yes
Upgrade	JTAG

General
Power supply	DC 12V
Dimensions	15311050mm
Weight	Appro 1kg
Operation temperature	0~45C

Technical Comparison

Solutions

Kindly contact me to send you more solutions for DVB-C, DVB-S, DVB-T, Cable QAM System for Hotel ,Microwave , Radio reporter system...etc

Applications

About US

1.FAQ:Where is your company located? How can I visit your company?

A:Our factory is located in Tian He District, Guang Zhou City, China, it's about 25 mins away from Canton Fair Center and 15 mins from Guang Zhou Eastern Station, all our clients, from home or abroad, are warmly welcome to take a visit here!

You can search this numbers " 23.127,113.332 " in google map , then you can find our fmuser office .

2.FAQ:How does your company do regarding quality control?

A:Quality is very important and always the priority of our inspection system. FMUSER team members always pay great attention to quality control from the very beginning to the end.

All machine will be Aging work 40days before shipment.

3.FAQ:Can I get some samples?
A: Yes, sure, we are honored to offer you samples, sample fee can be discussed.

4.FAQ:What is your mode of transportation?
A: We ship via International Express like FedEx, UPS, DHL, TNT, other ways designated by customers are also optional.

5.FAQ:Could you pls make OEM for us?
A: Surely yes.We provide the service of replacing your logo and company name on box, product and software interface
of the device .

6.FAQ:What's your payment method supported?
A: We accept T/T, Paypal, Western Union, MoneyGram etc.

7.FAQ:What about your warranty?

A: We provide 1 year quality warranty for our main devices, accessories are not within this range, but our accessories are endurable enough to use for long time.

FMUSER International Group Inc is a comapny dedicated to FM and TV broadcasting equipments and relevant accessories. All of our products are fully inpsected before shipping, and sold to many countries all over the world. We will make effort to become a super supplier in the global FM and TV filed.
