Specifications

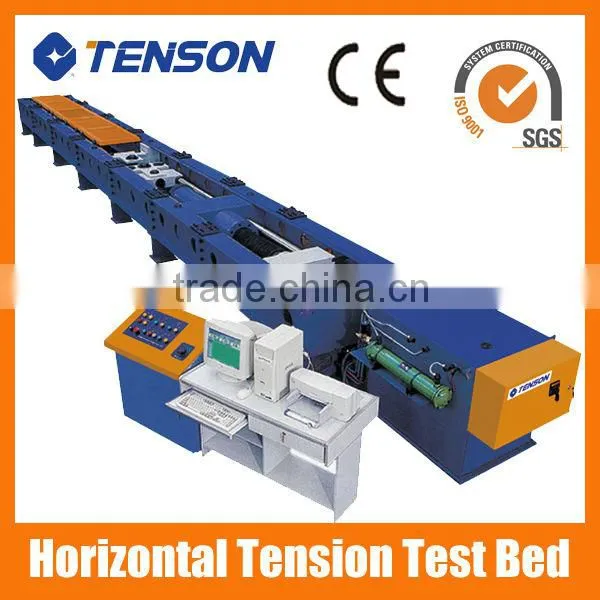

Universal Tensile Testing machineUsed for Wire Rope, Anchor Chain
Tensile Test Bench
1000kN,2000kN,3000KN
1. Application:
Mainly to do tensile test for polyester webbing slings, wire rope, wire rope slings with soft eyes and hard eyes terminations, hooks and shackles.
2. Applied standard:
ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221
ASTM E83, ISO 9513, BS 3846 and EN 10002-4
3.Main technical parameter:
Model |
WLW-600 |
WLW-1000 |
WLW-2000 |
WLW-3000 |
Max Load Capacity |
600KN |
1000KN |
2000KN |
3000KN |
Range of Testing Force |
4%-100% |
|||
Accuracy of Testing Force |
± 1% |
|||
Relative error of displacement |
± 1% |
|||
Stress speed |
1-45Mpa/s |
|||
Precision of constant stress |
± 1% |
|||
Stretching distance |
0-10000mm |
|||
Piston stroke |
1500mm or customized |
|||
Method of Specimen Clamping |
Bolt way,specially according to the specimen that customer provide. |
|||
Control mode |
Computer controlled or hand valve control |
|||
Effective testing space |
Width 750mm,1000mm or customized |
|||
Fixed-way of moving beam |
Manual bolt fixed or hydraulic automatic bolt fixed |
|||
Power supply |
220V/380V, 50Hz |
|||
4.Features:
1. Computer automatic loop-closed control, sensor test force,

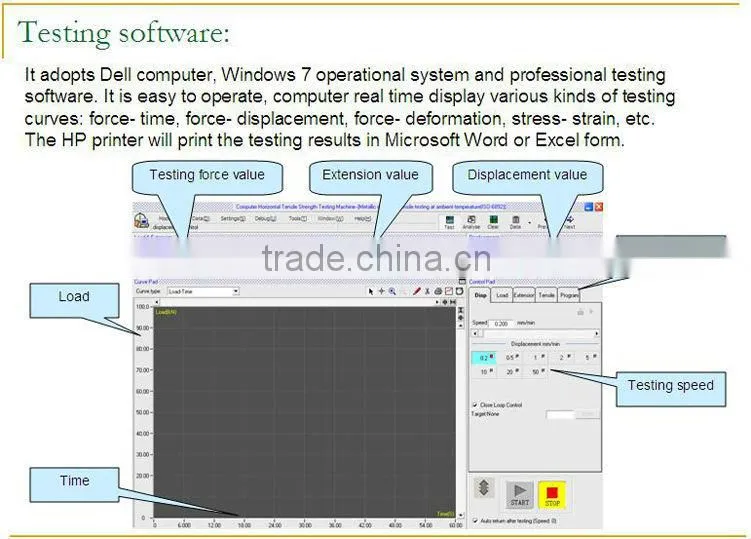

2. Computer screen can timely display, memory printing
3. Sample hydraulic automatic clamping
4. Automatic calculate the material test result of the max force, tensile strength,yield strength, elastic modulus, percentage elongation after fracture, reduction of area
5. Safety net protecting the test personnel is available when sample breaking

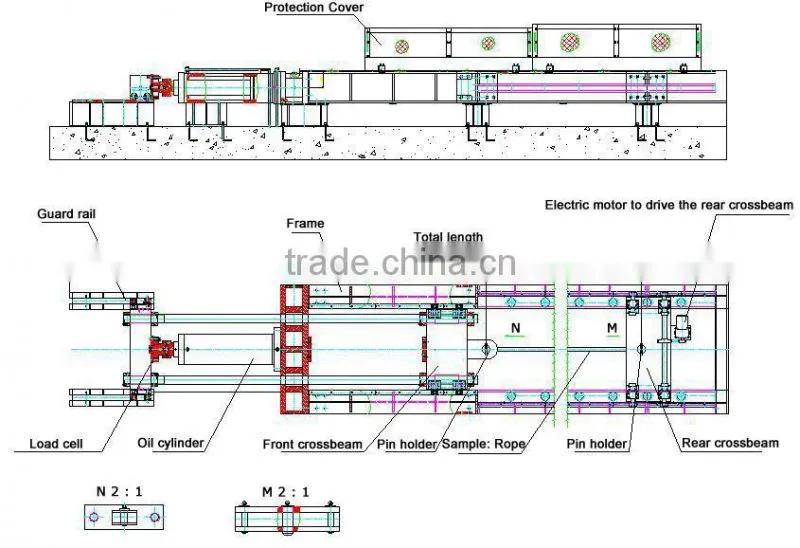

5.Pictures for reference:
6. Warranty
The warranty of all our testing machines is one year.
During this warranty, it is free to replace the spare parts.
Without this warranty, it only charges the cost of the spare parts.
All our testing machines enjoy a long life after-sales service.
7. Contact person:
