Specifications
Tensile strength tester1. double column
2. Load cell: USA CELTRON sensor
3. Motor and servo system: Japan PANASONIC
4. CE
WDW-T Series Computerized Type
Electronic Universal Testing Machine
Max. tensile force: 50KN,100KN,200KN,300KN,600KN
Electronic Universal Tensile Testing Machine
Standard: ASTM E23-02, EN10045, ISO148and ISO083
1. Function
WDS series LCD Display Electronic universal tensile testing machine is used for tensile test of plastic and rubber materials, textile fabrics, water-proof materials, wires and cables, net ropes and metal materials. it can also be used for compression test or bending test with some adjustment.
2. Features
1) High-precision and full digital speed control system to achieve large-scale adjustment of testing speed and stable operation;
2) Touch key operation, LCD display;
3) Multiple options on the display screen: test method option, test parameter option, test value option;
4) Has overload protection function;
5) Optional computer access to control the test and store and print the test data.
3. Technical parameters
Model |
WDW-T300 |
Maximum test load |
300kN |
Load measuring range |
0.4kN-300kN |
Displacement accuracy |
≤±0.5% |
Deformation accuracy |
Within ±0.5% of display value |
Clamping thickness of flat specimen |
φ0-20mm |
Valid tensile testing space |
600mm |
Width of testing space |
650mm |
Clamping thickness of round specimen |
φ9-26mm |
Power supply: three phase |
380V±10%, 50Hz |
Dimension and weight |
1020×800×2180mm, 2000kg
|

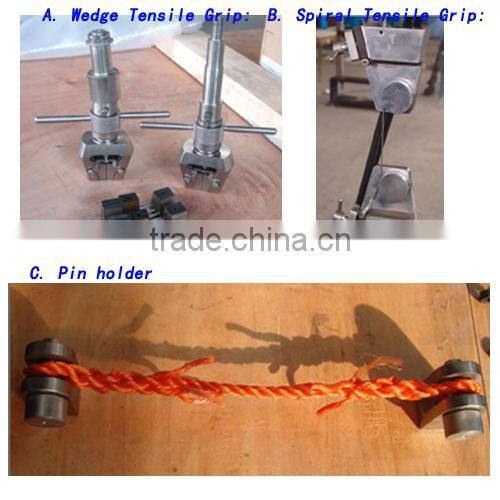

4. Pictures of the machine
5. Warranty
The warranty of all our testing machines is one year.
During this warranty, it is free to replace the spare parts.
Without this warranty, it only charges the cost of the spare parts.
All our testing machines enjoy a long life after-sales service.
6. Why choose us!
1. As the original manufacturer, we can balance the price and quality
2. We have confidence to have your 100% satisfactory.
3. Fast delivery for urgent purchase
4. Good after sale service.

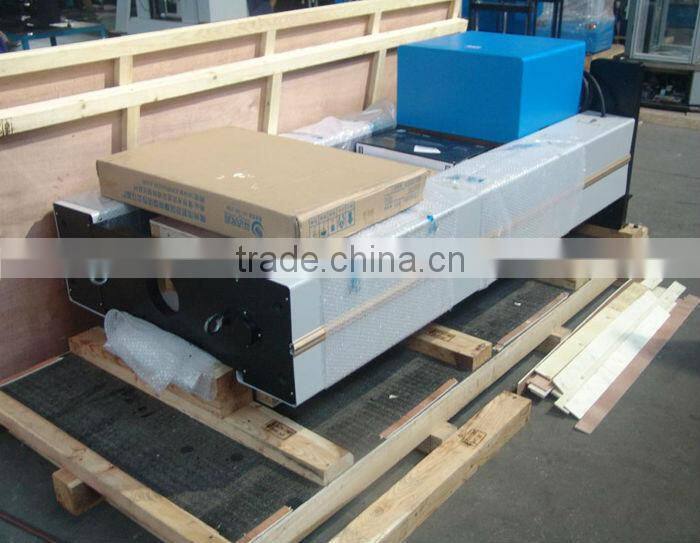

7. Packing
Any questions, please feel free to contact me.
Contact person:Kevin
Tel:0086 15168825790
Skype:kevin88030
Trademanager:cn1511024090
Website: www.tianchentest .com
