Specifications
utm tensile Testing machine1.tensile strength test
2.horizontal type
3.with CE certificate
4.1 class accuracy

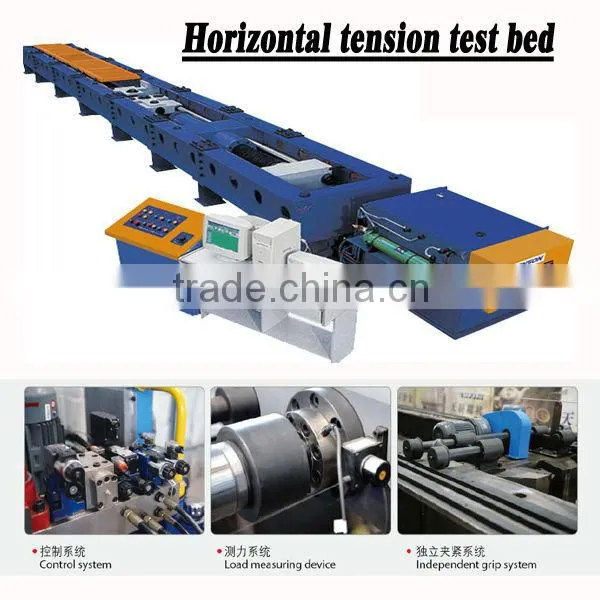

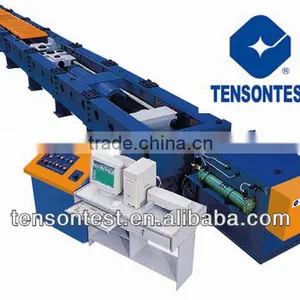

WLW series computer control electro-hydraulic servo horizontal tensile testing machine UTM Tensile testing machine
1.Functions & Applications:
MLW Computer Servo Horizontal Tensile Tester/Horizontal Tensile Testing Machine applies the full digital controller, servo valve control system along with the standard analytic software, so it can realize closed loop control to load and displacement, digitally physically setting zero, software/hardware digitally calibrating, protection, limit-position signal input, thus the machine possess the function of user’ programming. In addition the machine can be equipped special analytic software and print the report form according to the requirements from customers. The machine also can realize the functions of screen display for test data and test curve, disc storage, database management and keep them on the web net interface. The machine mainly do tensile test to specimen conforming to global standards. It can do tensile test to various kinds of metal materials and actual component, such as chains.
2. Main Technical Specification:
Parameters: | |
Max. Force |
600, 1000, 2000, 3000kN |
Accuracy |
Class 1 |
Force range |
2% ~ 100% FS |
Force accuracy |
±1% of reading |
Force resolution |
1/±350,000 of max force |
Force rate |
0.02 ~ 2%FS/S |
Cylinder speed |
150mm/min |
Displacement range |
0 ~ 600mm |
Displacement accuracy |
±0.1mm |
Tensile space (excluding piston travel) |
3 ~ 20meter |
Dimension |
18000 (L) x 800(W) x 700(H) mm |
Power supply |
415V±10%, 4.0kW |
Standard accessories: | |
Load frame |
1 set |
Driving system |
1 set |
600kN loading cylinder |
1 set |
600kN load cell |
1 set |
Hydraulic power unit |
1 set |
|
Hydraulic tension grip Stranded wire diameter (7-wire) |
1 set 9.5 ~ 15.2mm; 15.2 ~ 18mm |
English version manual/ software |
Testing Machine operation Manual and software (hard copy and 1 CD) |
Branded High performance Computer System |
Intel Pentium Processor 3.0 GHZ CPU or higher 512MB DDR Combo Drive CD-RW/DDR RAM, 80GB HDD, P/S 2 key & mouse, 17” LCD Screen or higher Genuine Microsoft Win. Vista License, Color Printer |

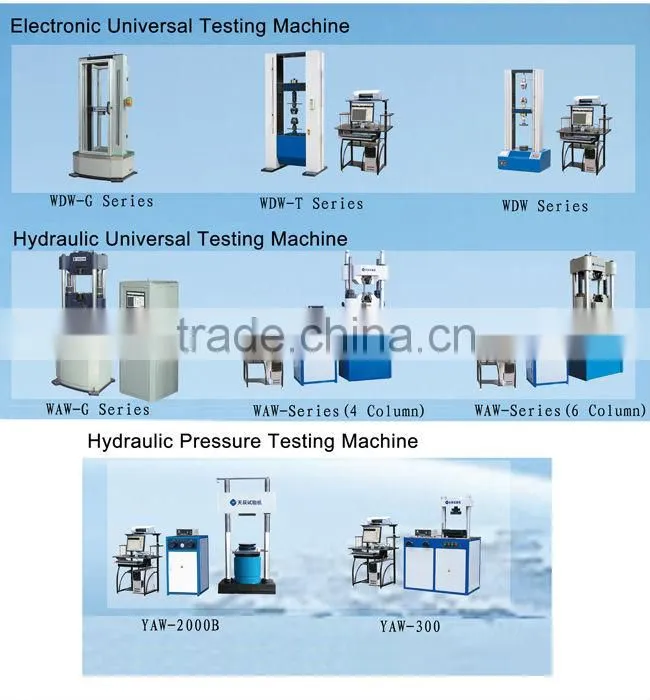

3.Our universal testing machine
