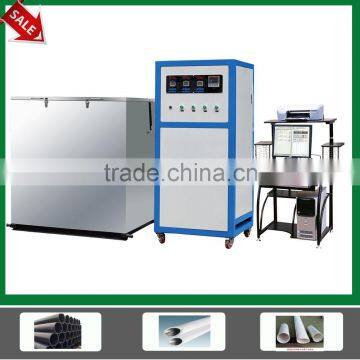

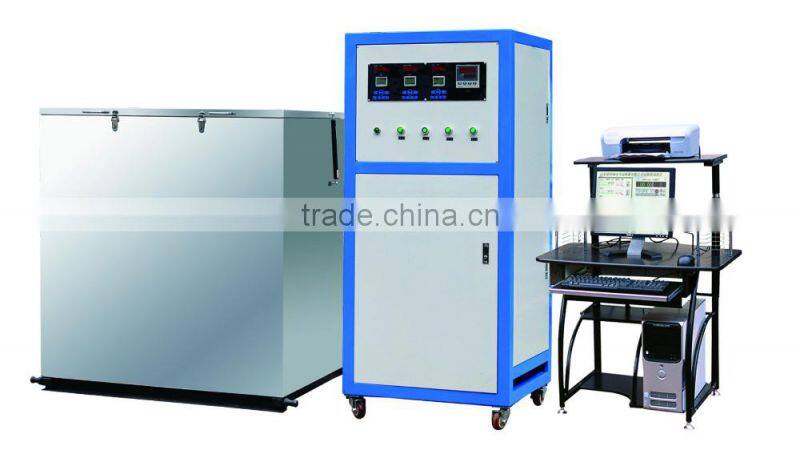

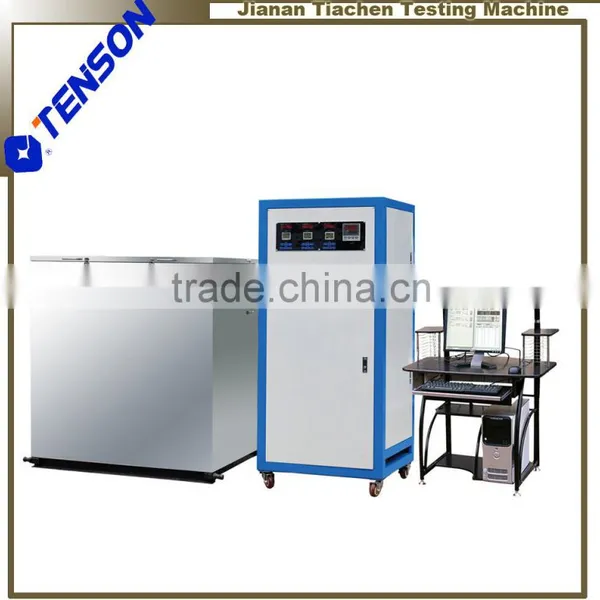

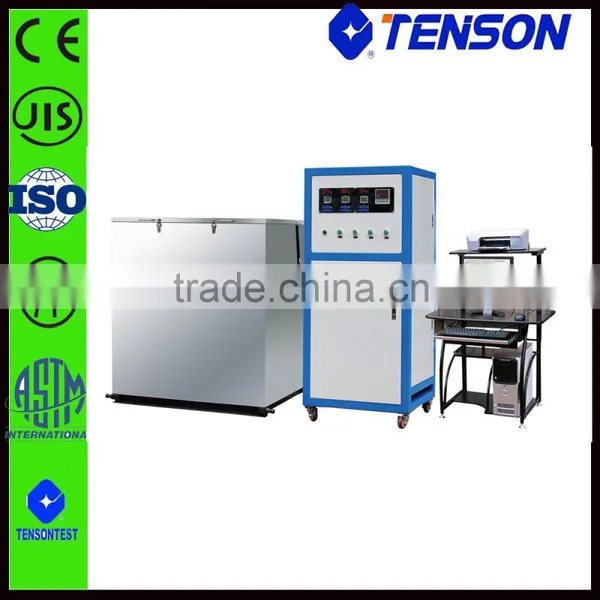

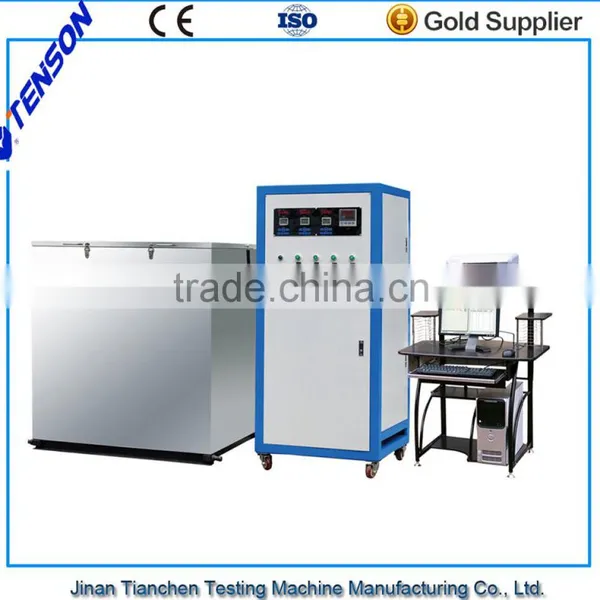

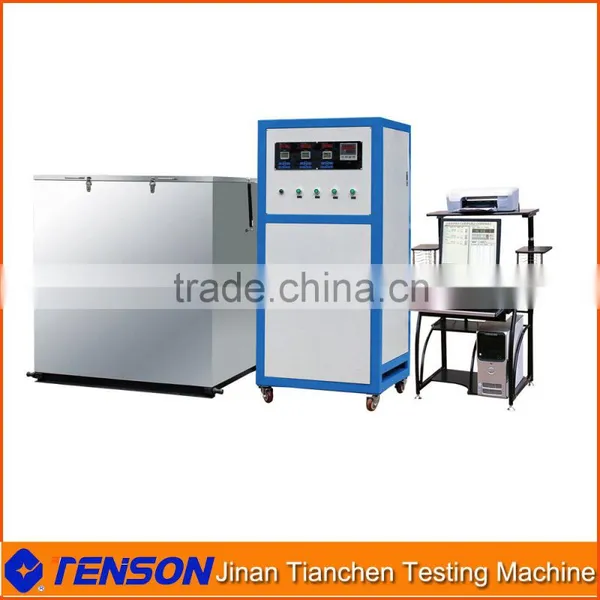

XGY Plastic Tube/Pipe Compression Testing Machine
Introduction
This machine is mainly used for all kinds of plastic pipes at a constant temperature and pressure transient performance of the bursting pressure of the determination of the plastic pipe manufacturers, tertiary institutions, the quality of scientific research units and units of essential equipment.
Features
1 Single control, it can be set different testing force and testing time separately. Unpack any station during test process.

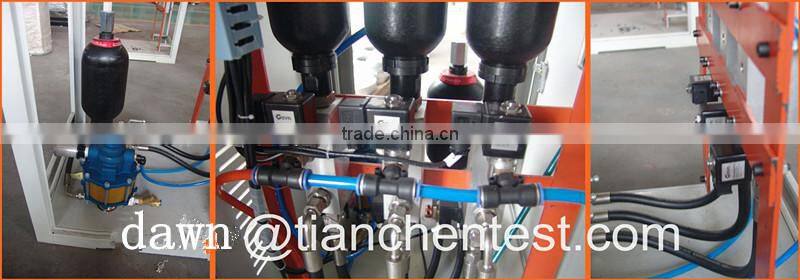

2 Double-solenoid valve control, ensure the stability of pressure.
3 It can save the test data and condition when the power is off; it can continue to finish the test when the power is on.
4 It can check the test condition during the test process.
5 3 buffer design, it can make the pressure to be more stable.
6 The water and power is separated, is much safer.

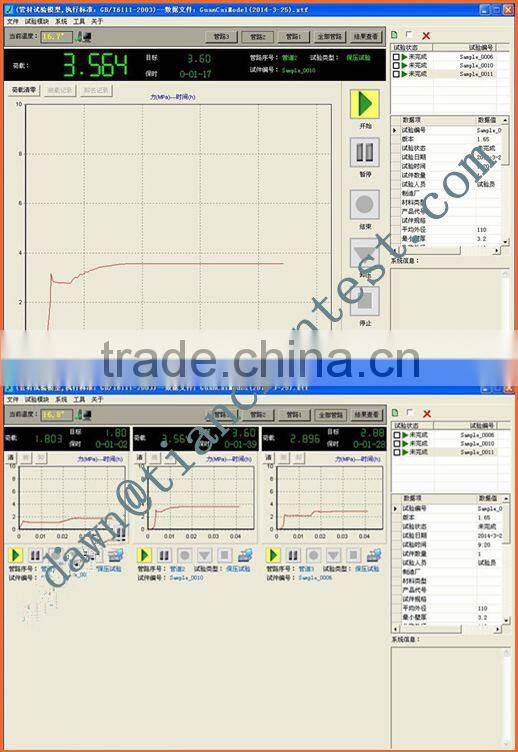

7 It can record the test result and print the result in standard format.

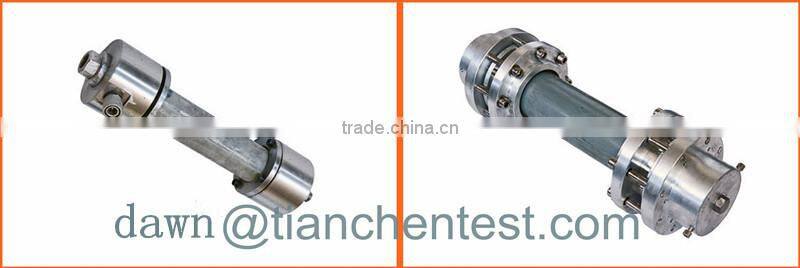

8 Install the grips easily, reliably and sealing well.

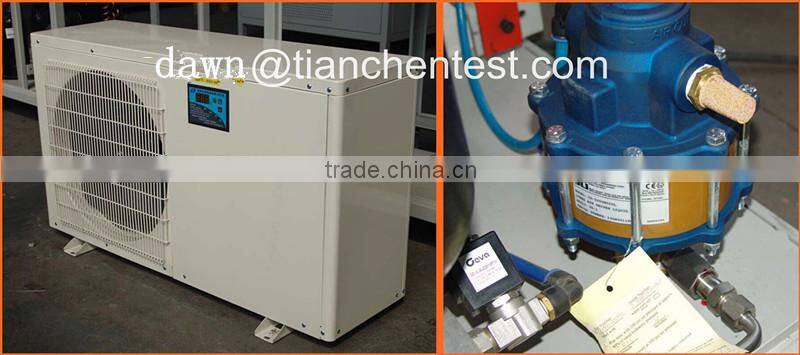

9 Rotary piston pump, supply the pressure uniformly and smoothly.
10 Reserve the data interface, it can connect with internet directly and share the resources.
Technical parameters
3.1 Maxi. Capacity: 6MPa (It can be chosen by the customer)
3.2 Grips:
Diameter of pipe: 16- 500mm
Type: <200, can choose A type or B type,
>200, can choose B type
The grips materials can be Aluminum, 45# chrome steel, stainless steel;
3.3 Test station: 3 stations or chosen by the customer
3.4 Pressure accuracy: ≤±1%
3.5 Constant pressure range: 5%~100%
3.6 Constant pressure accuracy: -1%~+2%
3.7 Constant Temp. Range: Room Temp. ~95℃ or 20℃~95℃
3.8 Temp. Accuracy: ±0.1℃
3.9 Temp. evenness: ±1 ℃
3.10 Time range: 1s-9999h
3.11 Time accuracy: ≤±0.1%
3.12 Power supply: 3 phase, 380v±10%, 50Hz

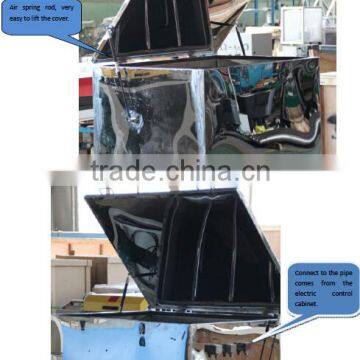

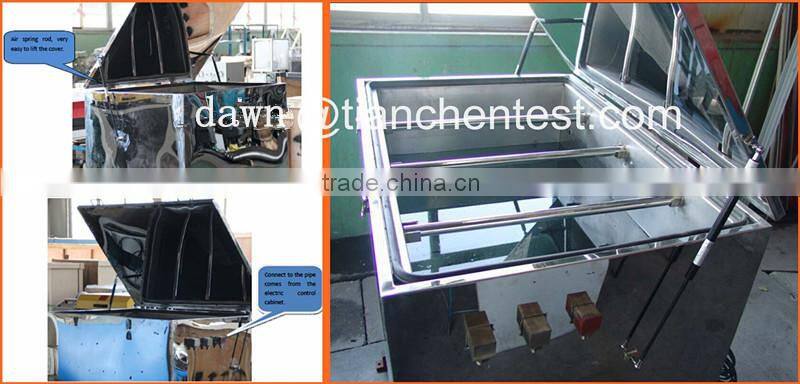

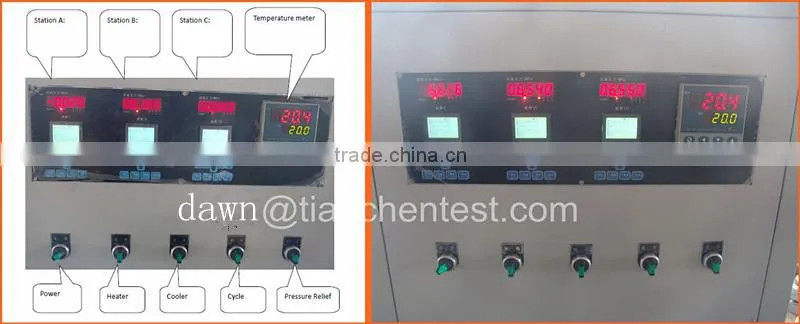

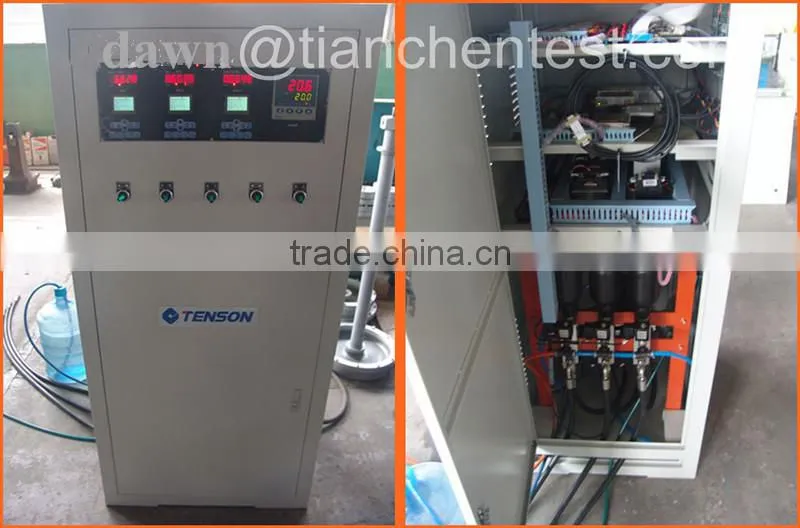

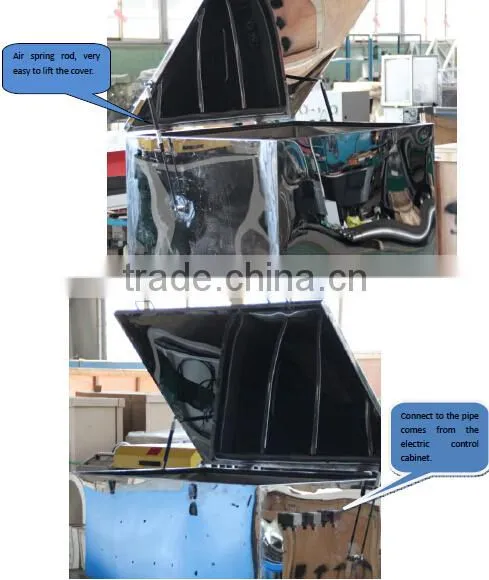

Parts show
For more information, quotation, working videos, just feel free to contact us!
