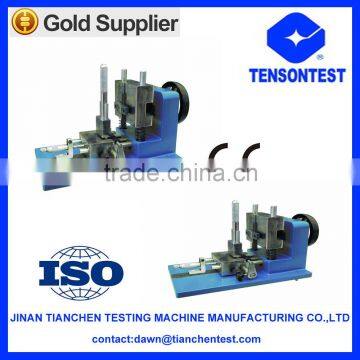

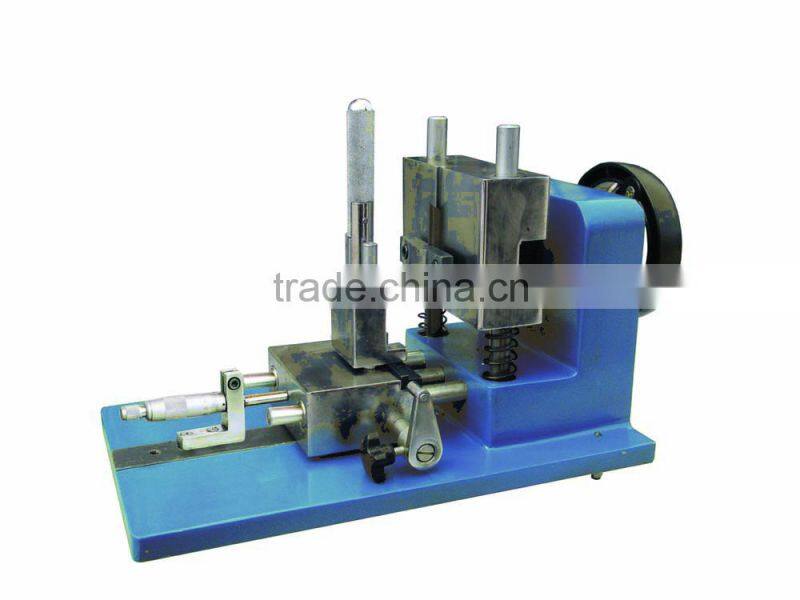

Gap Machine for Impacting Testing Machine

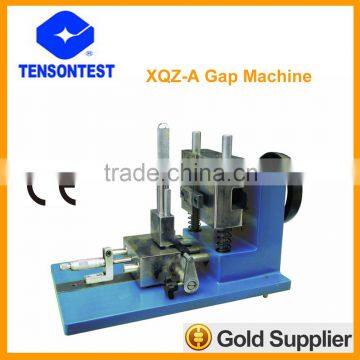

XQZ-A Gap Machine

Main functions

This machine is used to make gap on cantilever beam and simple beam impacting testing machine. It can make one or more gap at one time. The dimension of gap is accurate.

Technical parameter

1,Cutter stroke:36mm;
2,Feeding stroke:10mm,;10mm, and the feed volume is variable
3,Type of specimen:1type, 2type, 3type, 4type
4,Type of gap: A type, B type, C type;
5,Parameter of cutter:
 cutter of A type:45°±30′, r=0.25±0.025;
 cutter of B type:45°±30′, r=1±0.025;
 cutter of C type: width Ⅰ=2±0.2 , r≤0.1;
               width Ⅱ=0.8±0.1, r≤0.1
