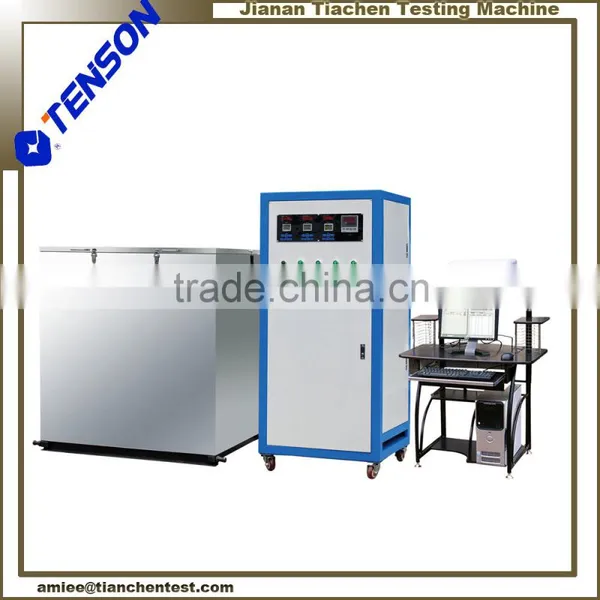

25Mpa PPR Tubular Withstanding Pressure Blasting Testing Machine 3 Stations Working
Usage
XGY-25 tubular materials withstanding pressure ( blasting) testing machine is mainly used for all kinds of plastic pipes at a constant temperature and pressure transient performance of the bursting pressure of the determination of the plastic pipe manufacturers,tertiary institutions, the quality of scientific research units and units of essential equipment.
Functions and features
1.Closed loop control,which makes the accuracy of pressure dwell are more reliable;
2.Each circuit is separately controlled and can set different testing pressure and time;
3.Automatically conserving the testing data when the power supply is cut off and automatically continuing to finish the testing after the current is switched on again insure the testing continuity;
4.Real time detecting test state during test process;automatically note the testing result and
print in normal format;
5. Reserved data interface can link with internet directly and achieve resource sharing;
6.Import solenoid valve,pressure sensors,booster pumps;The pressing speed is fast and
controlled accurately .
7.Water and electricity separation,high security.
Main Technical Specifications:
Maximum Capacity |
6/10/16/25MPa |
Grips |
Ø12/14/16/20/25/32/40/50/63/75/90/110/125/140/160/180/200/225/250/280/315/355/400/450/500/560/630 A/B type Stainless steel/ aluminum/ 45# chrome steel 3 kinds materials for your choosing |
Test station |
3 stations |
Pressure accuracy |
≤±1% |
Constant pressure range |
0.2Mpa~Max. capacity |
Constant pressure accuracy |
-1%~+2% |
Constant Temp. Range |
20℃~95℃ |
Temp. Accuracy |
±0.1℃ |
Temp. evenness |
±1 ℃ |
Time range |
1s-10000h |
Time accuracy |
≤±0.1% |
Power supply |
AC 380v±10%, 50/60Hz, three phases |

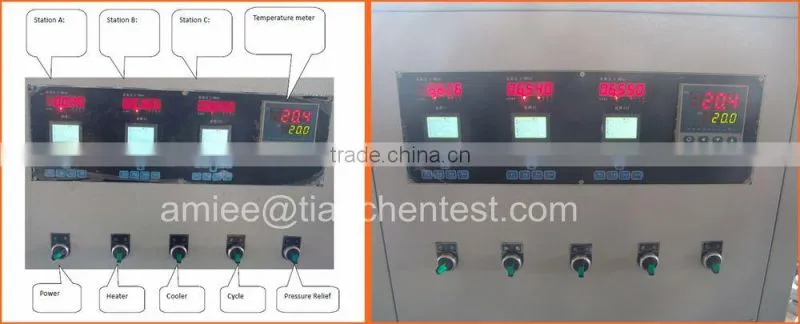

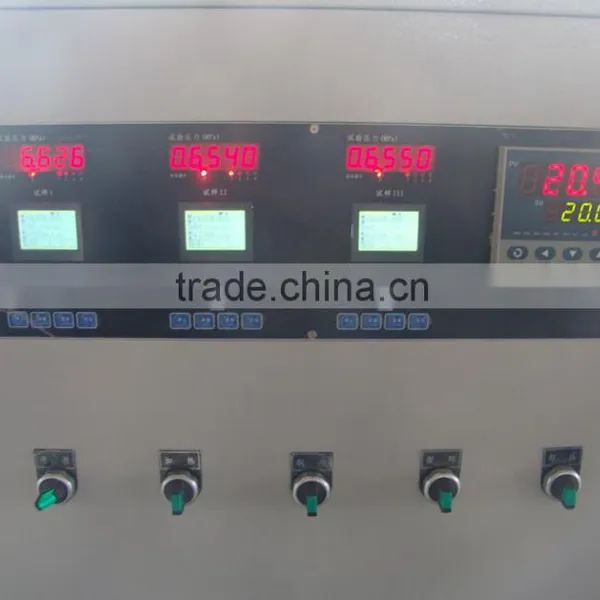

Testing software interface ( 3 stations)

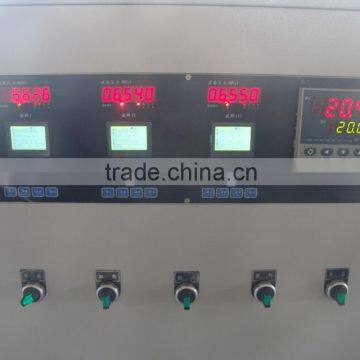

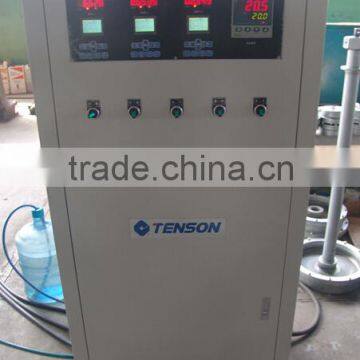

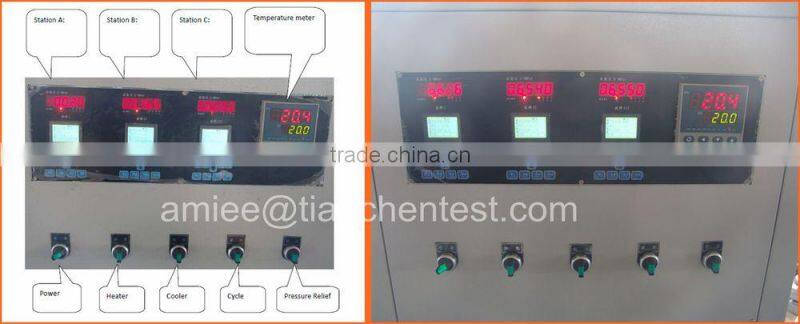

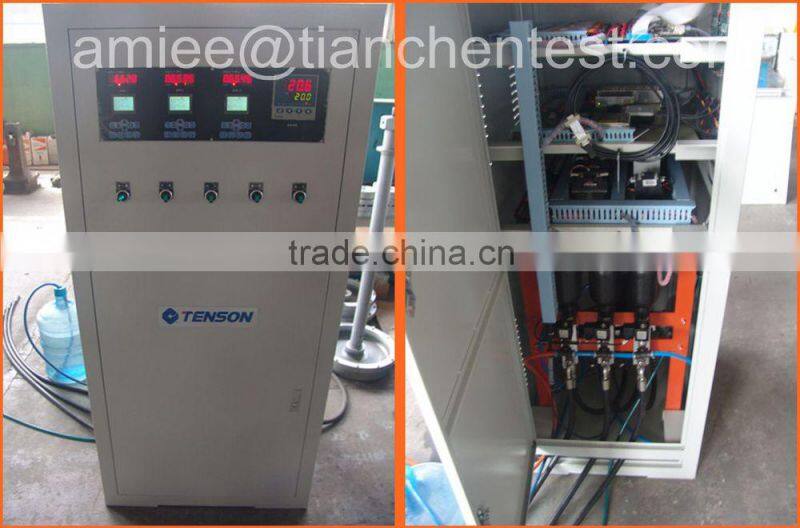

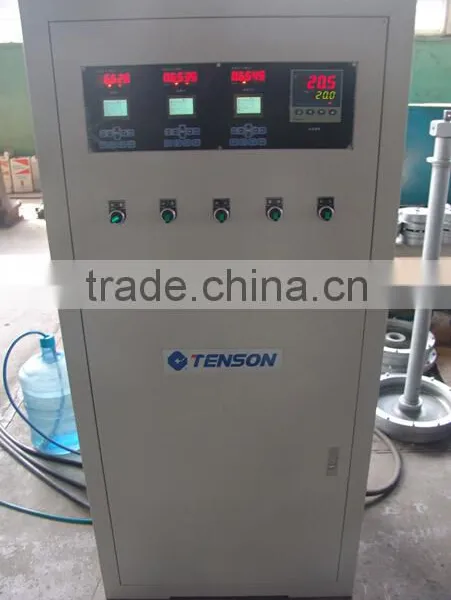

Electronic cabinets

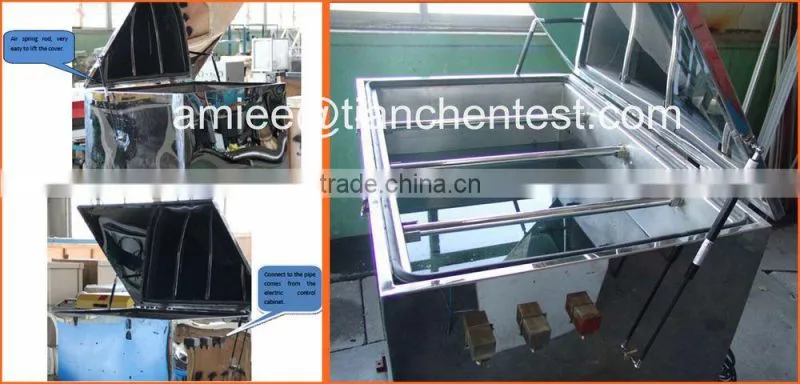

Water tank

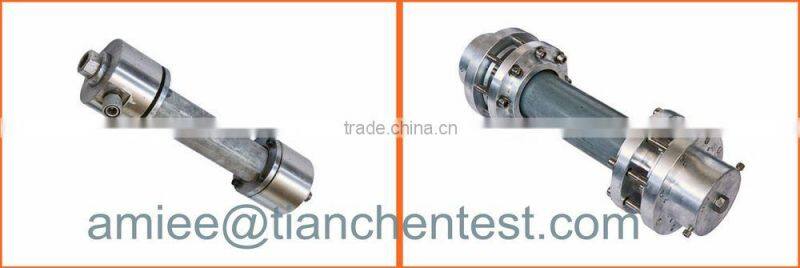

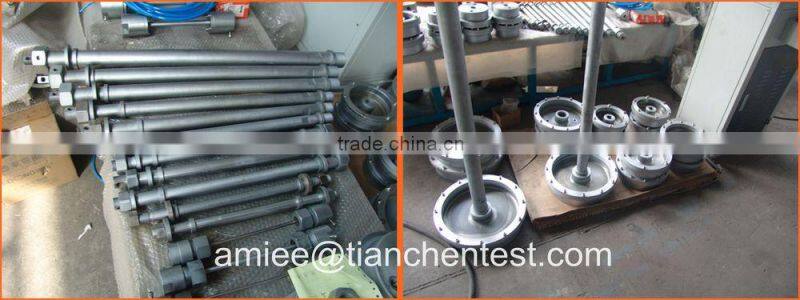

Grips

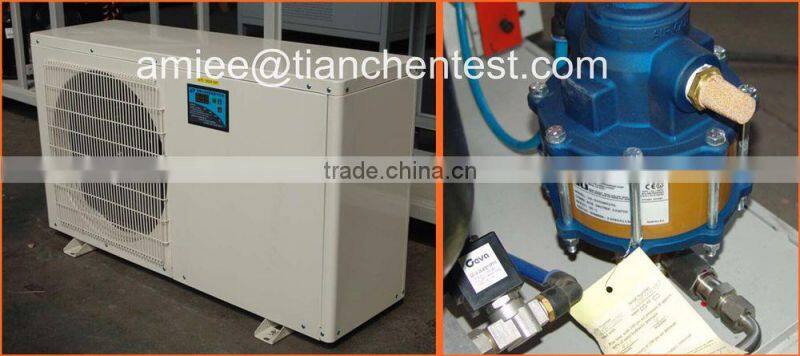

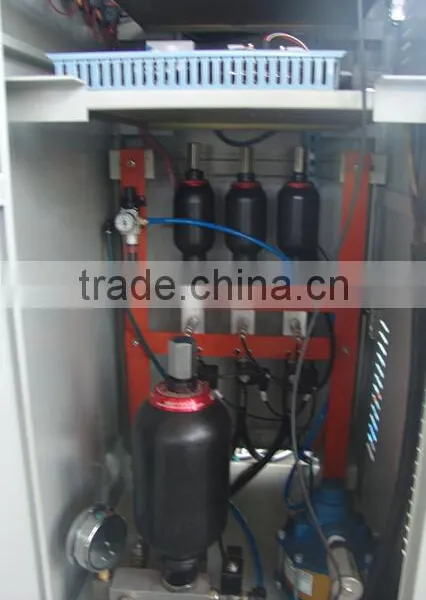

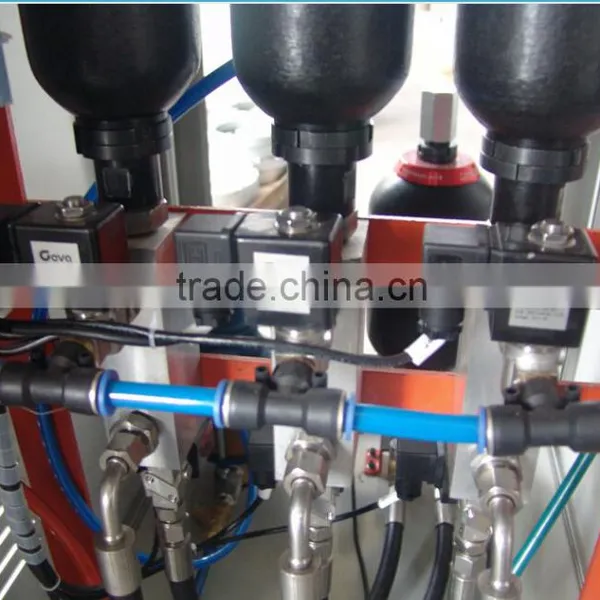

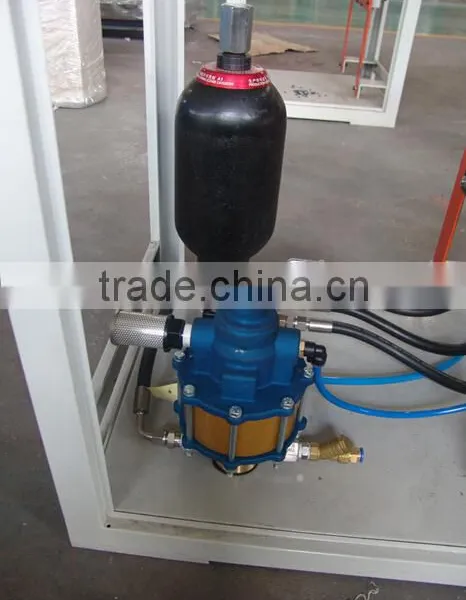

Compressor & USA SC pneumatic booster pumo & solenoid valve --Netherland GEVA

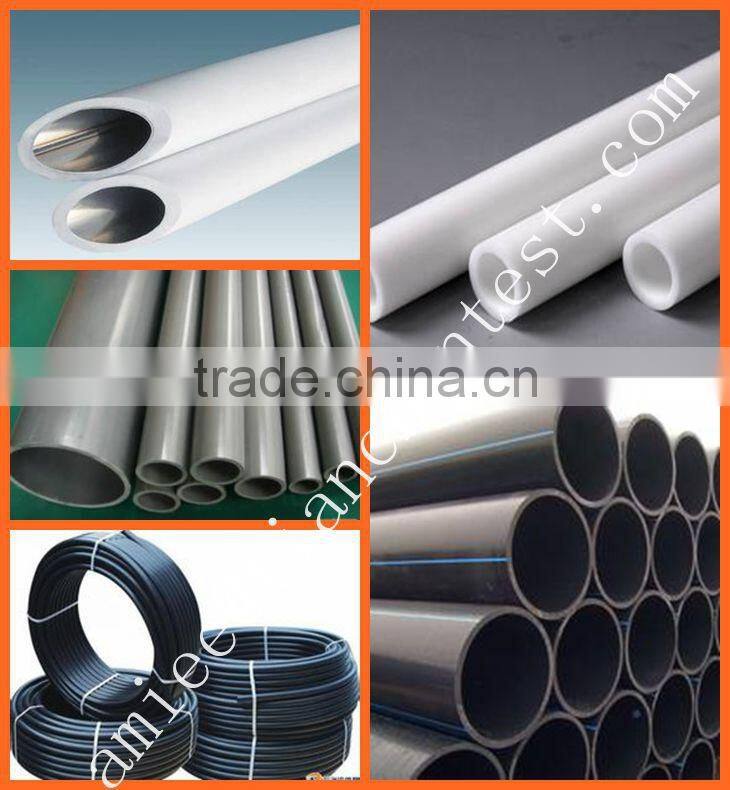

Specimen testing
1.Are you factory or trading company?
Established in 1998, Jinan Tianchen Testing Machine Manufacturing Co., Ltd is a high technology enterprise devoting on researching, manufacturing, sales and service of Material Testing Machines in Jinan city, China. The registered capital is 10 million RMB.
2.After an order is placed, when to deliver?
Generally about 2-3 weeks, If have in stocks, we can arrange shipment within 3 days.
Please note, different specification/model, needs different delivery time.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate. Main clients has Bureau Veritas and Intertek. our products are widely recognized and trusted by users. All the products meet with: ISO, ASTM,AATCC, BS, EN, DIN, JIS and other requireable standards.
