Specifications
1.pipe pressure testing machine2.Rotary piston pump
3.The water and power is separated
4.3 buffer design
5.CE ISO

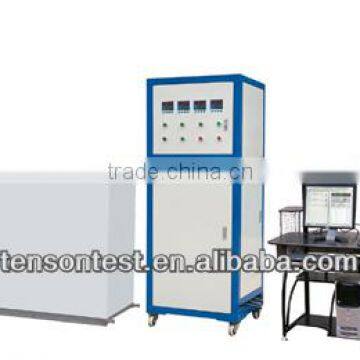

6Mpa 10Mpa 16Mpa 25Mpa Pipe pressure testing machine for PVC PPR PE etc tubular material and composite tube
1. Introduction of pressure testing machine:
The machine is mainly used for all kinds of plastic pipes at a constant temperature and pressure transient performance of the bursting pressure of the determination of the plastic pipe manufacturers, tertiary institutions, the quality of scientific research units and units of essential equipment.
2. Main Technical Specifications
1 Maxi. Capacity: 6MPa, 10MPa, 16MPa, 25MPa (It can be chosen by the customer)
2 Grips: Diameter of pipe: 20- 630mm
3 Stations: 3 stations simultaneously
4 Pressure accuracy: ≤±1%
5 Constant pressure range: 0.2Mpa~Maxi capacity
6 Constant pressure accuracy: -1%~+1%
7 Constant Temp. Range: 15°C~95°C
8 Temp. Accuracy: 1°C
9 Temp. evenness: 1 °C
10 Time range:1s-10000h
11Timeaccuracy: ≤±0.1%
12 Power supply: 3 phase, 380v±10%, 50Hz
Any questions,please feel free to contact us.
Contact person:Lilian Tan
Tel:0086 15105412106
Skype:lilian03102
Trademanager:cn1510404667
Website;www.tianchentest .com

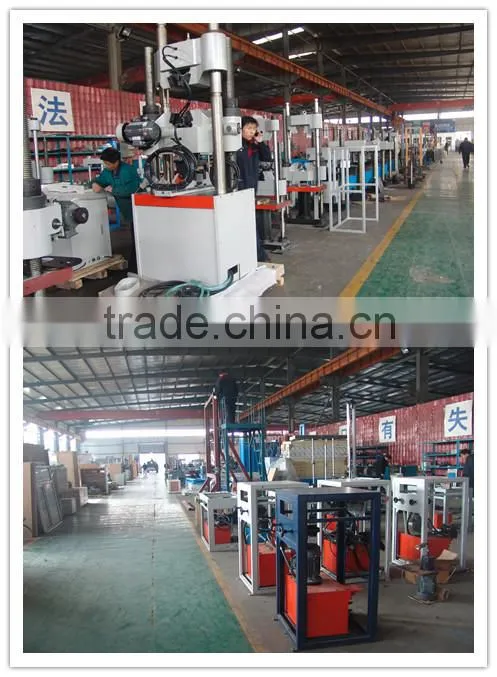

Our factory
