JB-300B Semi-automatic Charpy Impact Testing Machine, Impact Strength Testing Machine
Product Details
| Place of Origin | Shandong, China | Brand Name | TENSON | |
| Model Number | JB-300B | Power | Other, Semi-automatic | |
| Usage | Impact Testing Machine |
Product Description

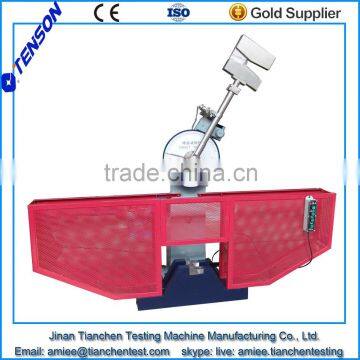

JB-300B Semi-Automatic Impact Testing Machine 300J with Impact Energy
Application
The JB-300B Semi-Automatic Sharpy Impact Testing Machine is mainly used for the determination of anti-impact performance of metal materials when it is under dynamic loading, to judde the quality of material sunder dynamic loading, it is applicable for the laboratory, which does continuous impact tests, metallurgy, machinery, manufacuring and other industries.
Main Features
The JB-300B Semi-Automatic Sharpy Impact testing machine is with semi-automatic control, operates easily and efficiently, it uses the electric control the knife of impact to raise, impact and fall.
Moreover, the machine can use the remaining energy to raise and fall to operate the next test automatically after thrusting specimens.
Technicalparameters
Model | JB-300B |
| Impact energy | 300J |
| Impact speed | 5.2m/s |
Raising angel of pendulum | 150degree |
| Span of suppoert | 40mm |
Round angel of support | R1.0-1.5mm |
750mm | |
Dimension of sample | 10*10*55mm |
Power supply | |
Overall dimension | 2124*600*340mm |
| Small pendulum | 1840*800*510mm |
Weight | 450kg |
Impact specimen testing
Shipping: Airplane/air express door to door/ EXW/FOB/CIF/DDU/DDP or according to your need
1.Are you factory or trading company?
Established in 1998, Jinan Tianchen Testing Machine Manufacturing Co., Ltd is a high technology enterprise devoting on researching, manufacturing, sales and service of Material Testing Machines in Jinan city, China. The registered capital is 10 million RMB.
2.After an order is placed, when to deliver?
Generally about 2-3 weeks, If have in stocks, we can arrange shipment within 3 days.
Please note, different specification/model, needs different delivery time.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate. Main clients has Bureau Veritas and Intertek. our products are widely recognized and trusted by users. All the products meet with: ISO, ASTM,AATCC, BS, EN, DIN, JIS and other requireable standards.
