Specifications
Low Temperature ChamberCharpy Impact Test Sample Preparation

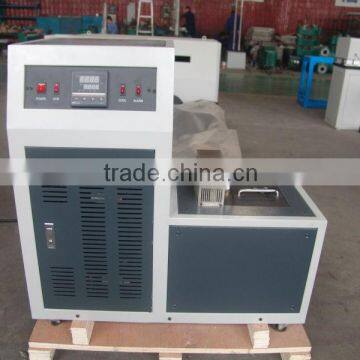

Low Temperature Chamber
1. Main Function
DWC-30 cooling groove is meeting to GB/T 229-1994 Metal Charpy Gap Impact Test Method. The machine uses cascade compressor refrigeration technology, using thermal equilibrium theory and mixing cycle approach, it can make the specimen auto-cool and constant temperature. The machine operates easily and work high efficiency, is perfect cooling machine. Meanwhile, it can be used test low temperature.
2. Main technical specifications
Temperature range:+30°C ~-60°C(Room Temp ≤25°C)
Accuracy: <±0.5°C
Cooling rate : +30°C~0°C 2.0°C/min
0°C~-20°C 1.5°C/min
-20°C~-40°C 1.0°C/min
-40°C~-60°C 0.7°C/min
Dimension: 900×510×940mm
Effective work space: 120×120×70mm
Specimen quantity for one time: >60
Number counter: 1S-99 minutes Resolution 1S
Cooling media: ethanol or other liquid
Power supply: 220~240V, 50HZ, 1.5KW
3,Warranty and After-sale service
1,The warranty of all our testing machine is one year
2,During this Warranty,it is free to replace the spare parts
3,Out of this warranty, it only charges the cost of the spare parts
4,All our testing machines enjoy a long after-sales service
Contact Person: kevin Tel:008615168825790 Skype: kevin88030
