Specifications
Impact Testing Machine1. Model: JBD-300W
2. Charpy impact for metal material
3. Semi-automatic
4. Dialtal display

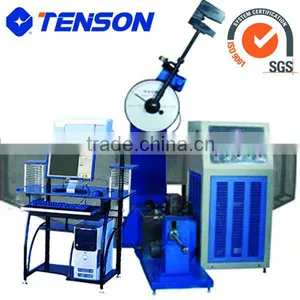

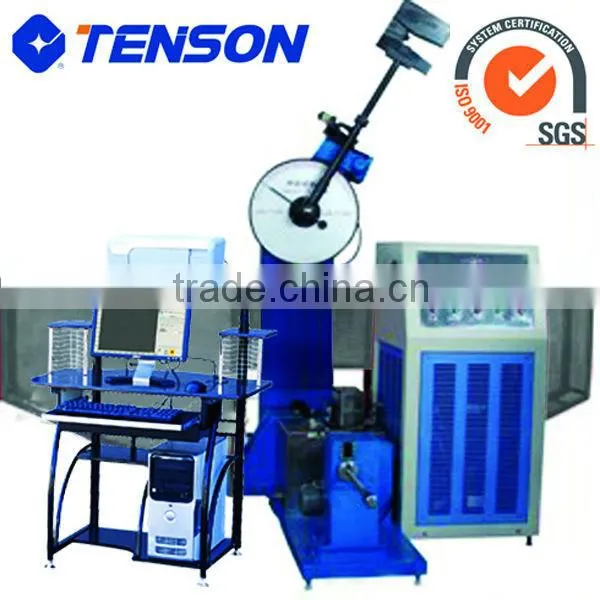

JBD-300W Impact Testing Machine+ Pendulum Impact Testing Machine
1. Introduction:
The machine can be used for the determination of anti-impact performance of metal materials when it is under dynamic loading, thus judged the quality of materials under dynamic loading. It is applicable for the laboratory, which does continuous compact tests, metallurgy, machinery manufacturing, and other industries.
2. Main Technical Parameters:
2.1. Impact energy (J):150,300;
2.2. Impact speed: 5.2m/s;
2.3. Raising angle of pendulum: 150°
2.4. Span of support (mm): 40;
2.5. Round angle of support: R1.0- 1.5mm;
2.6. Round angel of impact knife: R2.0- 2.5mm;
2.7. Distance between pendulum center and impact point (mm):750;
2.8. Dimension of sample (mm):10×10×55;
2.9. Power supply: 380V±10%, 50Hz;
2.10. Overall dimension L×W×H mm: 2124×600×1340;
2.11. Weight: 450kg
3. Function and Features:
The machine with the semi-automatic control, operates easily and efficiently. It uses the electric control the knife of impact to rise, impact and fall. Moreover, the machine can use the remaining energy to rise and fall to prepare the next test automatically after thrusting specimens.
5,Warranty and After-sale service
1,The warranty of all our testing machine is one year
2,During this Warranty,it is free to replace the spare parts
3,Out of this warranty, it only charges the cost of the spare parts
4,All our testing machines enjoy a long after-sales service
