Specifications
Dropping Hammer Impact Testing Machine1,Maximum impact energy: 300J
2,Maximum impact height: about 2000mm
3,high accuracy

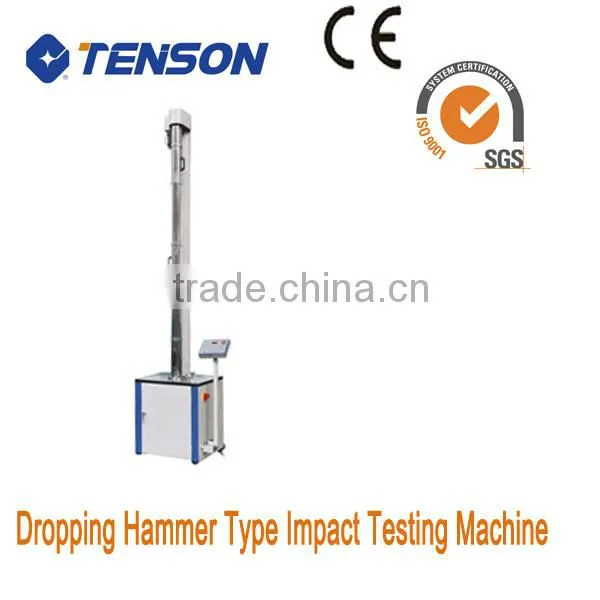

XJL-300Tubular Materials Dropping Hammer Impact Testing Machine
1,Product features
1. This machine adopts manual and automatic work model and the operation is convenient and easy.
2. PLC controller and LCD human-machine interface realize overall process of test automatic control.
3. Automatically adjust the zero point of the specimen.
4. The device of avoiding second impact makes the testing result more accurate.
5. Auto protection and auto prompting improve the safety and reliability of test.
6. The lower space can be electrically adjusted, and test specimen automatically,which improves the
accuracy of specimen position, reduces the intensity of labor and improves efficiency of work.
2,Main technical specifications
1,Maximum impact energy:300J
2,Maximum impact height:2000mm 5mm
3, Weight of hammer head(kg):0.5, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.2, 4.0, 5.0, 6.3,8.0, 10.0, 12.5, 16.0,
4, Model of hammer head:d25 d90
5, Diameter of pipe specimen:10 400mm
(The range can be increased according to the requirements of customers).
6, Power supply: 220V 10%
7, Temperature of working environment:10 30
relative humidity: 80%;
8, Overall dimension of host machine (L W H)(mm):850 750 3600;
9, Weight:600kg
3,Warranty and After-sale service
1,The warranty of all our testing machine is one year
2,During this Warranty,it is free to replace the spare parts
3,Out of this warranty, it only charges the cost of the spare parts
4,All our testing machines enjoy a long after-sales service
