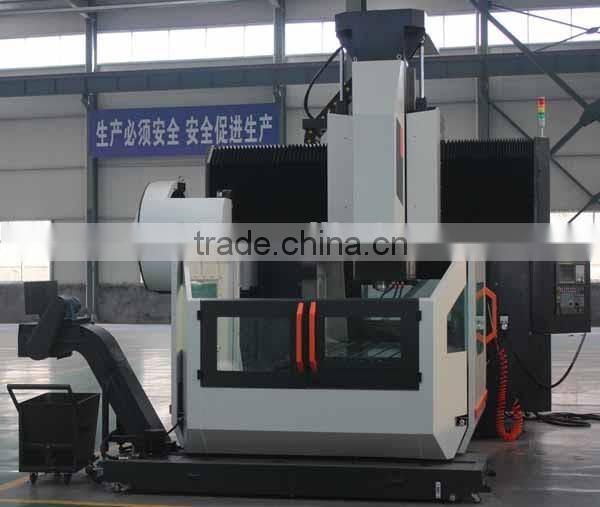

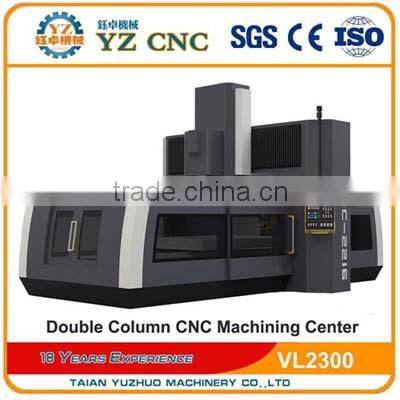

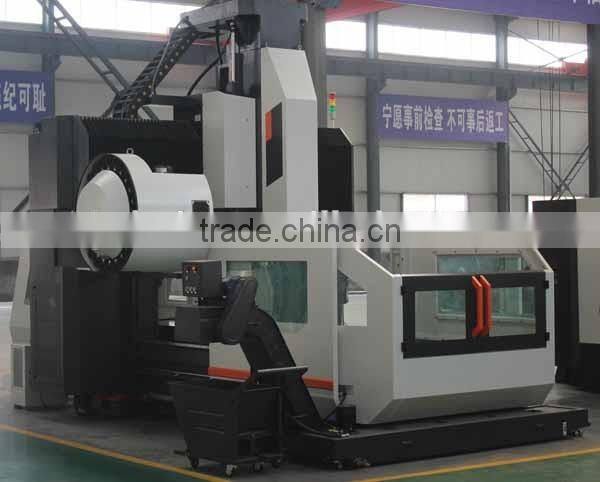

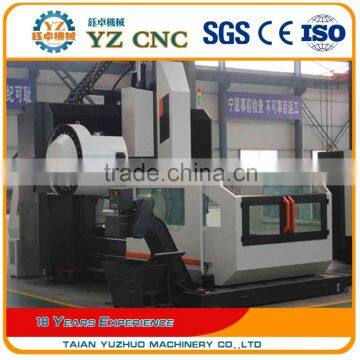

Discount Double column hot sale cnc machining center VL2300
1.Fanuc controller
2.Arm type tool changer
3.full enclosure machine guard
4.automatic central lubrication system with alarm
5.spindle cooling unit
6.spindle side air blow
7.nozzle&coolant nozzle
8.machine window with safety glasses
9.rigid tapping
10.auto power off
11.3 colours warning lamp
lamp
13.chip conveyor
1.Mitsubishi M70
2.chip cart
3.Metrol tool setters
4.transformer to suit local power supply
Double Column CNC VL2300---Linear guid | ||
Travel |
X axis |
2500mm |
Y axis |
900mm |
|
Z axis |
800mm |
|
Feed |
max X rapid feed |
20 m/min |
max Y rapid feed |
20 m/min |
|
max Z rapid feed |
18 m/min |
|
Cutting feed |
1-10m/min |
|
Torque |
X:30N.m Y:15 N.m Z:38N.m |
|
Table |
Table size |
2300*800mm |
Max load |
2000Kg |
|
Table surface to floor |
750 mm |
|
T slot |
5*18*100mm |
|
Spindle |
Type |
Belt |
Speed |
8000 rpm |
|
Spindle taper |
BT40 |
|
Main motor |
11/15kw
|
|
Accuracy |
Accuracy (JIS) |
0.005/300mm |
Repeatability (JIS) |
0.003mm |
|
Other |
Weight |
10000 Kgs |
Size |
5500*1700*2600 |
|
1-Finite Element Analysis
The structural parts are analyzed and designed by the advanced Finite Element Analysis.It provides a detailed analysis for structural stress/strain conditions,and ensures excellent machine rigidity and lifetime stability.
2-Pre-tensioned ballscrews on X,Y,Z axes ensure accuracy and eliminate positioning error.
3-The endface of spindle stock,screw support faces and block contact faces are fully Hand --scraped to increase machining accuracy and feeding smoothness.
4-The machine structure is constructed from high quality Meehanite cast iron and stress released to ensure great rigidity and precision
5-Over sized column and bed ,assuring extra high rigidity of machine frame
