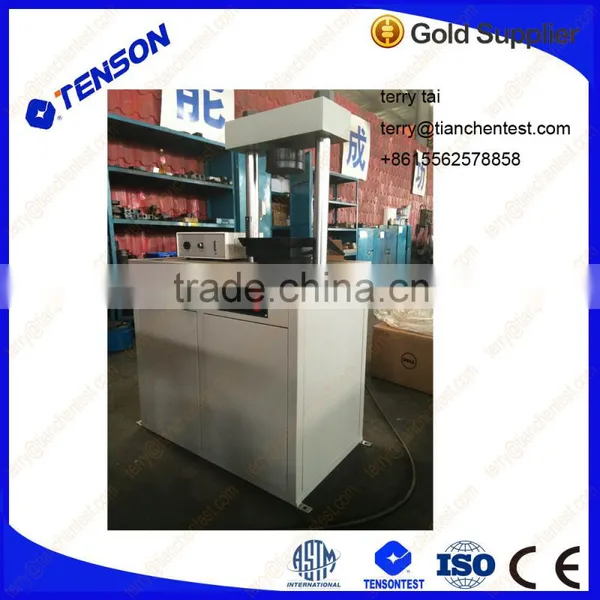

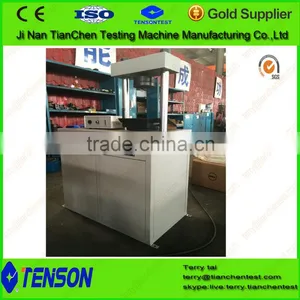

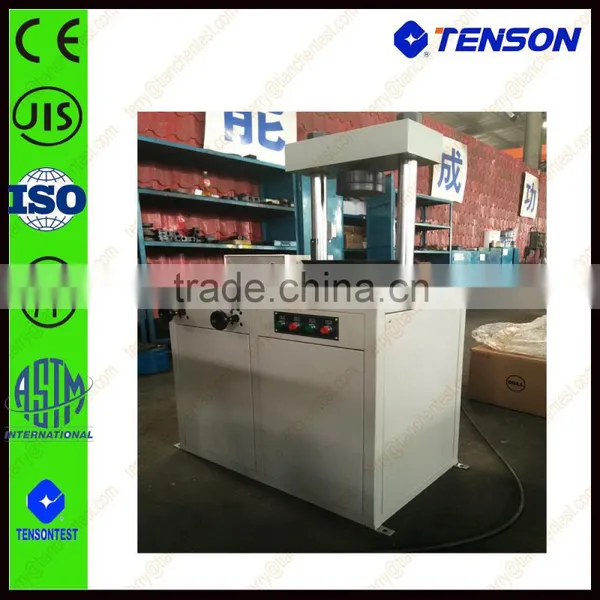

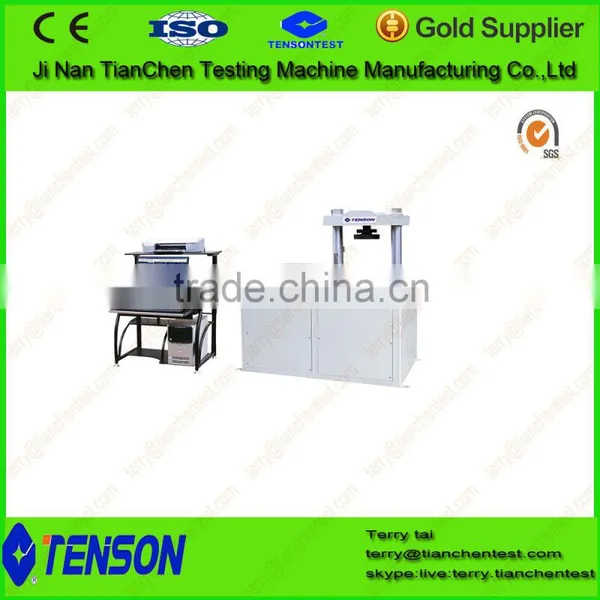

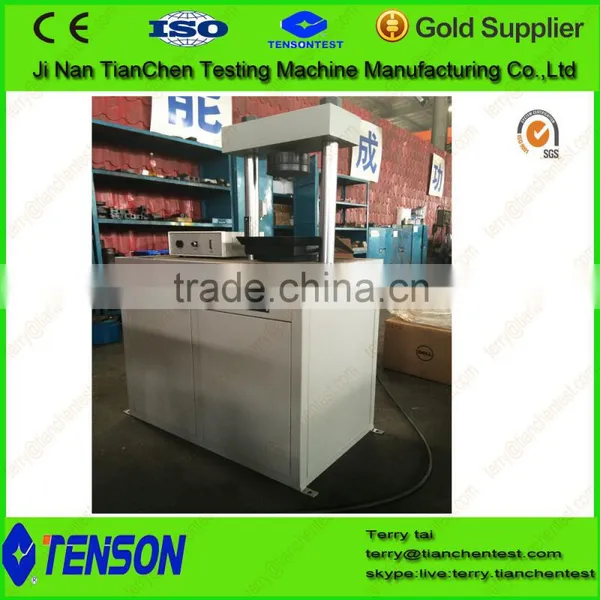

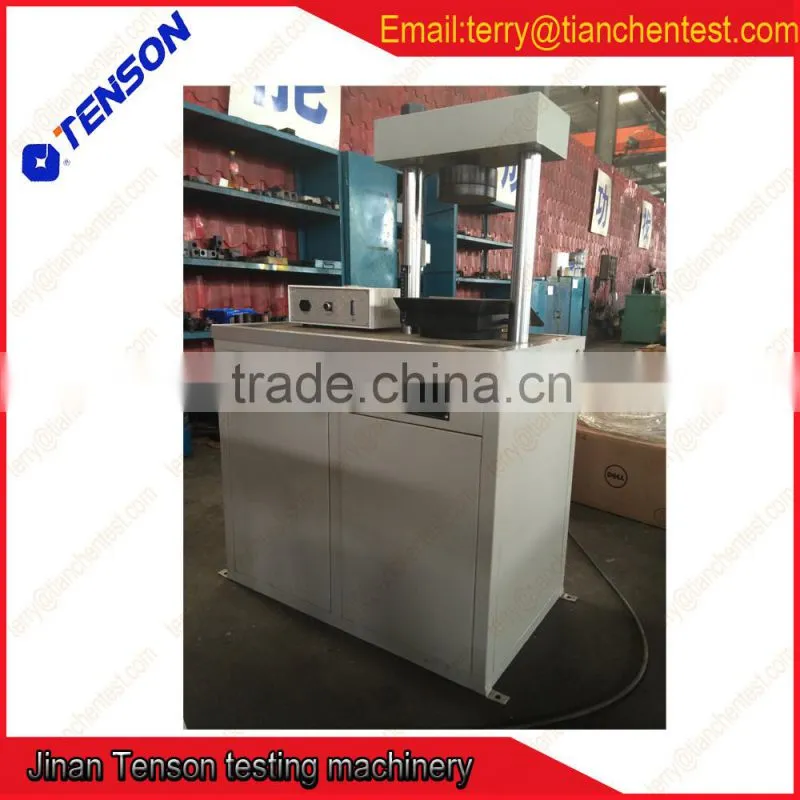

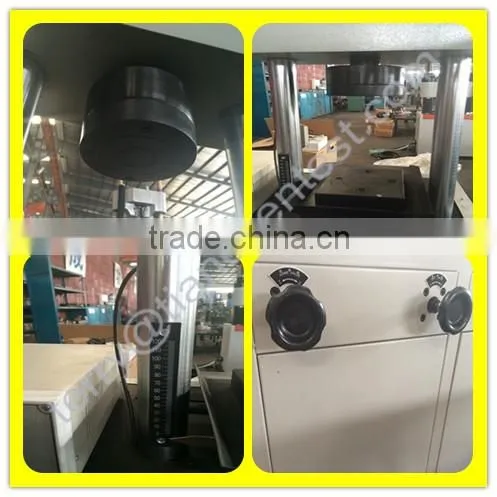

YES-300 Digital Display Type Hydraulic Pressure Testing Machine building material used

YES-300 YES-300 Digital Display Type Hydraulic Pressure Testing Machine/compression testing machine 30 TON / Cement testing

Application

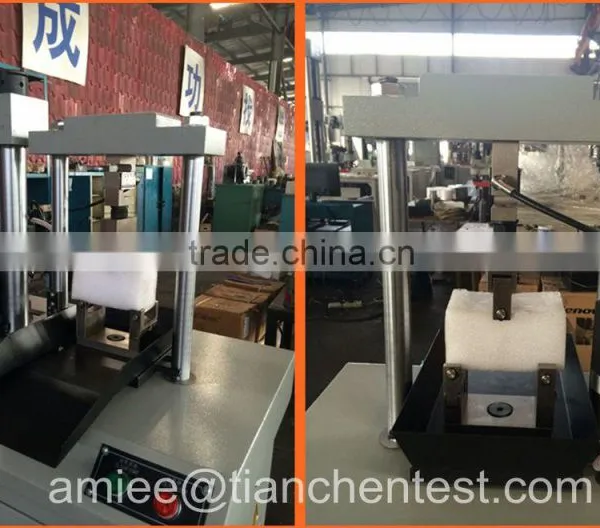

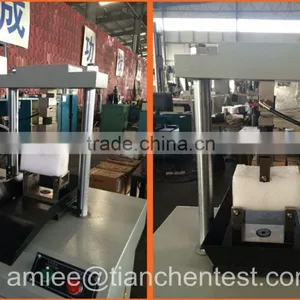

YES-300 digital display compression testing machine mainly used for concrete rupture strength

testing,cement,plastic sand,and red brick building materials compression resist testing. Widely used in metallurgy,building materials,space flight and aviation,colleges and universities,R and D institution lines.The test operation and data processing meets standard requirements.

Main technical specifications:

Maximum capacity: 300kN

Force range: 12-300 kN

Accuracy : ±1%

Distance between up and down compression plate:250mm

Test space width: 280mm

Size of up plate: 125mm

Size of down plate: 175×175mm

Piston scale: 120mm

Power supply: 3-phase 380V±10%, 50Hz

Work environment: 10-30℃, relative humidity is less than 80%

Dimension: 950×650×1450(mm)

Weight: 700 kg

Main configuration:

One main machine

high-precision load cell

high-precision data acquisition system

Oil source: one

Hydraulic control valve: one

Main features:

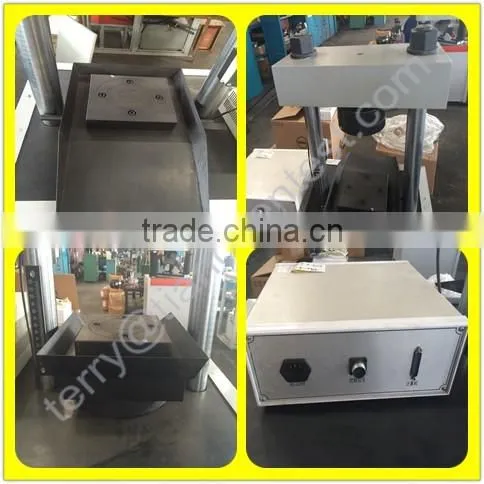

Main machine

The main machine has two columns.

Manual control the load, easy and convenient to operate

Limit protection device, keep safe

Auto-load when the force is more than 2%-10% of full scale

Display system

The machine can display testing force, force peak, because it adopts advance data acquisition chip.

Follow the load ratio; it is much more even and accurate

 It has data interface, can connect with internet and realize sharing the resources.
