Specifications
Compression and Bending Testing Machine1,Model name: YAW-300C
2, Control mode: digital or computer control
3, high accruacy

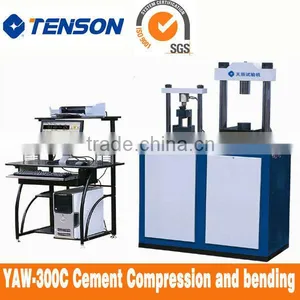

YAW -300C Compression and Bending Testing Machine
1.Introduction
The machine can do compression and bending test in one machine. It is mainly used to test bending and
compression performance of cement. It conforms to ISO-R679 <Cement Strength Test Method> and GB/T17671-2005 <Cement and Sand Strength Test Methos>.
The test process is automatic, low noise and high precision. Fully new digital valve can avoid contamination and jams.
2.Technical specification
2.1 Maximum testing force: compression 300 KN, bent 10 KN.
2.2 Reading accuracy: 1 class
2.3 Load speed: 0-10 KN adjustable, 25-75N adjustable
2.4 Reading accuracy: 1%
2.5 Load speed: 2.4 KN/S ± 200N/S, 50N/S ± 5N/S
2.6 Power supply: 380V±10% or 380V±10%
2.7 Motor power: 0.75 kw
2.8 Dimension: 820×500×1300mm
2.9 Noise Db: <70
2.10 Weight: 450 kg
5,Warranty and After-sale service
1,The warranty of all our testing machine is one year
2,During this Warranty,it is free to replace the spare parts
3,Out of this warranty, it only charges the cost of the spare parts
4,All our testing machines enjoy a long after-sales service
Contact person: kevin Guo skype: kevin88030
