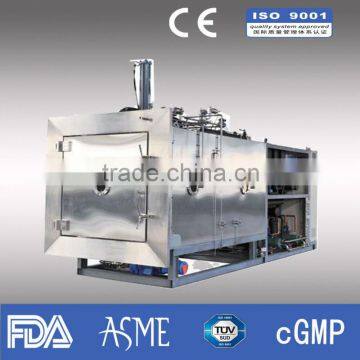

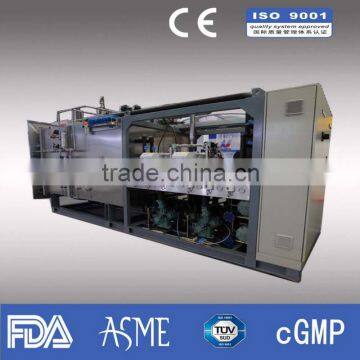

100KG Drying Capacity Production Vacuum Freeze Dryer/ Lyophilizer Machine for Pharmaceutical Quality Choice
US$ 120,000 - 220,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Freeze Drying Equipment
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20~100KG Capacity Production Vacuum Freeze Dryer| Pilot Plant Lyophilizer Quality ChoiceUS$ 40,000 - 60,000MOQ: 1 Set -
Mass Scale Benchtop Lyophilizer Middle Benchtop Lyophilizer/ Benchtop LyophilizerUS$ 500,000 - 600,000MOQ: 1 Set
-
Pilot Lyophilizer / Industrial Lyophilizer Machine/pharmaceutical Freeze DryerNegotiableMOQ: 1 Set
-
200~400KG Capacity Freeze Dryer for PharmaceuticalUS$ 200,000 - 450,000MOQ: 1 Set
-
20~100KG Capacity Production Bench Top Freeze Dryer| Pilot Bench Top Freeze DryerUS$ 40,000 - 60,000MOQ: 1 Set
Condition
New
Type
Freeze Drying Equipment
Place of Origin
China
Brand Name
LYOMAC
Model Number
lyopro-5-cip-sip
Voltage
380-460V
Power(W)
41KW
Dimension(L*W*H)
5000*1700*3100
Weight
7500kg
Certification
CE,FDA,ASME
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Description
- Either for tray loading bulk material, and vial production;
- Drying capacity 100L;
- GMP and FDA compliance;
Features
- Shelf temperature range from -55 °C~80 °C, and regulatable for processoptimization or development before industrial production.
- Vacuum can be regulatable, by clean air injet, or chamber isolation valve operation, this can accelerate drying process.

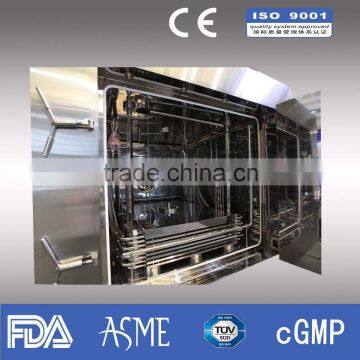

- Vial rubber cap closing under vacuum by hydraulic stoppering mechanism.
- Fully stainless steel fabrication, easily clean.

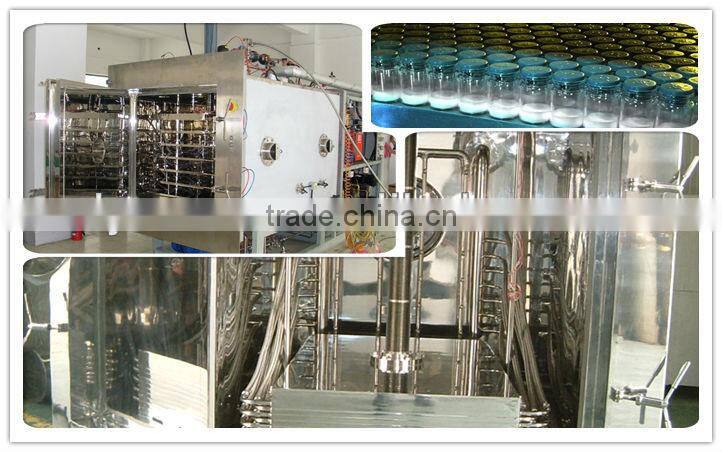

- Both vial and trays can be loaded.
- All critical system backup design to avoid cycle collapsed during process

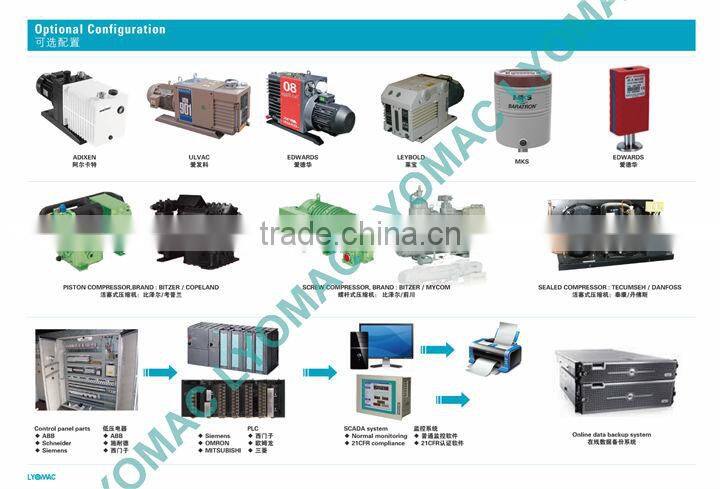

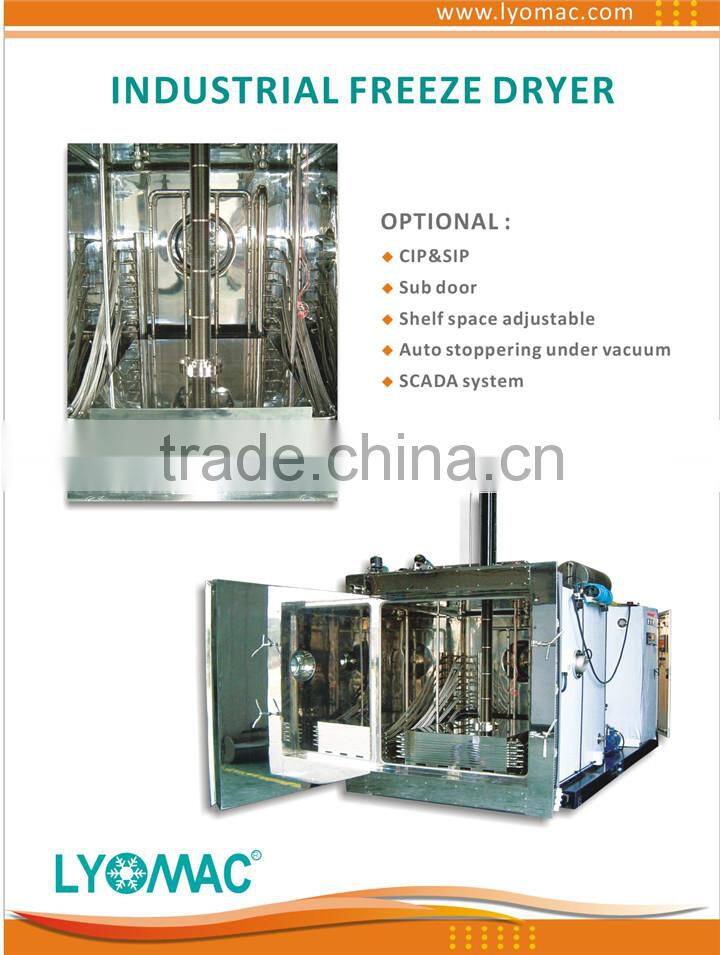

Optional System/Part
- CIP(cleaning in place) and SIP(Sterilization in place) system.
- Computer based SCADA system, all data can be recorded by table or curve type, easily print out for preservation.

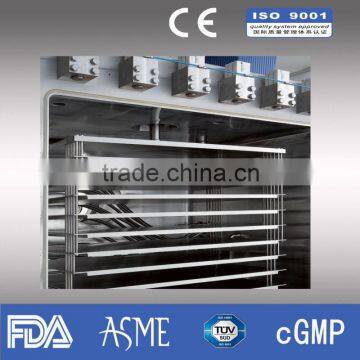

- Adjustable shelf space mechanism.
- Vial stoppering system.

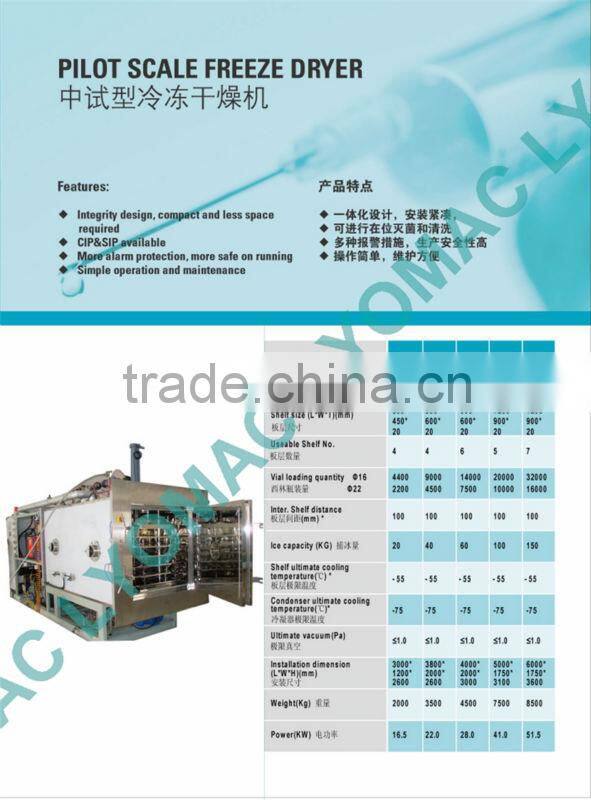

Specification List
Type |
LYOPRO-1.0 |
LYOPRO-2.0 |
LYOPRO-3.0 |
LYOPRO-5.0 |
LYOPRO-7.5 |
Shelf area (m2) |
1.08 |
2.16 |
3.24 |
5.40 |
7.56 |
Shelf size (L*W*T)(mm) |
600*450*20 |
900*600*20 |
900*600*20 |
1200*900*20 |
1200*900*20 |
Useable Shelf No. |
4 |
4 |
6 |
5 |
7 |
|
Vial loading quantity Φ16 Φ22 |
4400 2200 |
9000 4500 |
14000 7500 |
20000 10000 |
32000 16000 |
Inter. Shelf distance(mm) |
100 |
100 |
100 |
100 |
100 |
Ice capacity (KG) |
20 |
40 |
60 |
100 |
150 |
Shelf ultimate cooling temperature(°C) |
≤50 Min |
≤50 Min |
≤50 Min |
≤50 Min |
≤50 Min |
|
Condenser ultimate cooling temperature(°C) |
-75 |
-75 |
-75 |
-75 |
-75 |
Ultimate vacuum(Pa) |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
Installation dimension(L*W*H)(mm) |
3000*1200*2600 |
3800*2000*2600 |
4000*2000*3000 |
5000*1750*3100 |
6000*1750*3600 |
Weight(Kg) |
2000 |
3500 |
4500 |
7500 |
8500 |
Power(KW) |
16.5 |
22.0 |
28.0 |
41.0 |
51.5 |
